Description

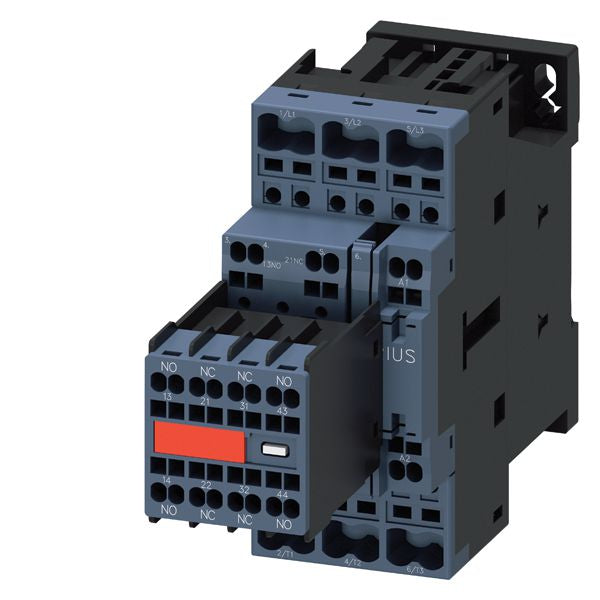

3RT2025-2CK64-3MA0
3RT2025-2CK64-3MA0 is a Siemens SIRIUS 3RT series motor contactor designed for reliable switching and control of three-phase motors in industrial applications. This contactor features a 3-pole configuration with a rated current of 17A and is suitable for motor loads up to 7.5kW at 400V. The control coil operates at 110VAC 50Hz or 120VAC 60Hz, making it compatible with a wide range of control circuits. It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for flexible control wiring. The unit is equipped with a plugged-in varistor for coil protection and is designed for DIN rail or vertical mounting in compact control panels. This contactor is part of the SIRIUS 3RT family, known for robust performance and ease of installation in motor control and power distribution systems. The spring-type terminal design ensures secure connections and simplifies wiring.
- Manufacturer: Siemens
- Series: SIRIUS 3RT
- Frame Size: S0
- Number of Poles: 3
- Rated Current: 17 A
- Motor Power Rating: 7.5 kW at 400 V
- Control Voltage: 110 VAC 50 Hz / 120 VAC 60 Hz
- Auxiliary Contacts: 2 NO + 2 NC
- Mounting Type: 35 mm DIN Rail / Vertical
- Terminal Type: Spring
- Protection: Plugged-in varistor
- Application: Motor Control
Specifications
- Part Number: 3RT2025-2CK64-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 110
- Coil Voltage Minimum : 110
Product Data
- UPC : 004089263459
- GTIN : 00040892634594
- Weight : 1
