Description
3RT2018-2KG42-0LA0

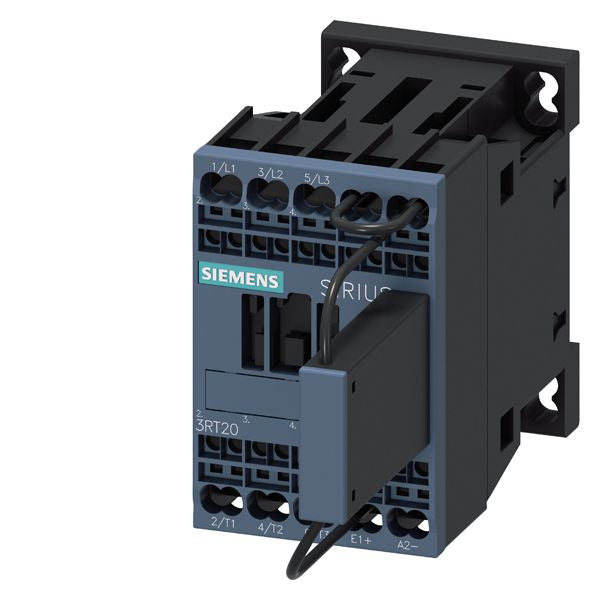

3RT2018-2KG42-0LA0 is a Siemens Sirius 3-pole motor contactor designed for 3-phase motor control applications with a 125 V DC coil.This contactor features a 16 ampere current rating suitable for AC-3e/AC-3 duty, supporting motor loads up to 7.5 kW at 400 V. It is part of the S00 frame size series and includes an integrated suppressor diode and one normally closed auxiliary contact. The device is designed for DIN rail mounting and operates at a nominal voltage of 690 V AC for the main contacts.
- Key Specifications
- Current Rating: 16 A
- Number of Poles: 3
- Phase: 3-Phase
- Coil Voltage: 125 V DC
- Power Rating: 7.5 kW at 400 V
- Frame Size: S00
- Mounting Type: DIN Rail
- Contact Type: 3 Normally Open Main Contacts, 1 Normally Closed Auxiliary Contact
- Integrated Suppressor Diode Included
- Nominal Contact Voltage: 690 V AC
- Part Number: 3RT2018-2KG42-0LA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 125
- Coil Voltage Minimum : 125
- UPC : 004089295807
- GTIN : 00040892958072
- Weight : 2
