Description
3RT2018-2FB44-3MA0

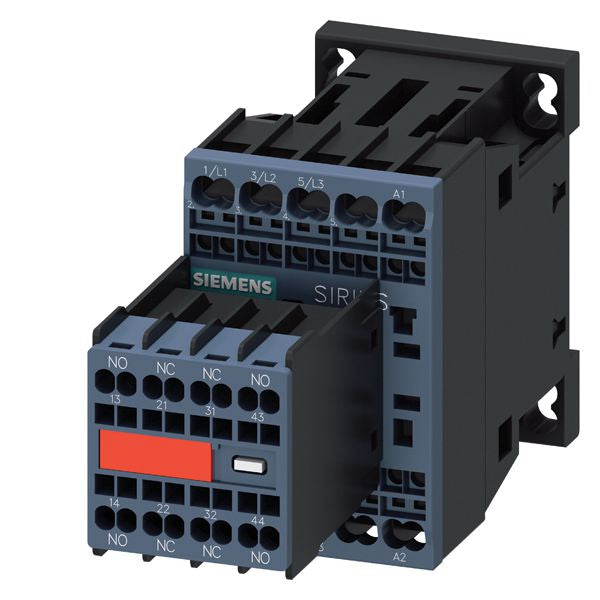

3RT2018-2FB44-3MA0 is a Siemens SIRIUS 3RT contactor designed for reliable motor control applications. This 3-pole power contactor features a 24V DC coil with integrated diode and auxiliary contacts for versatile control circuit integration. The contactor is rated for 16A continuous current and 7.5 kW at 400V, suitable for AC-3 and AC-3e duty. It features spring-loaded terminals for secure wiring and a compact S00 frame size. The device operates within a temperature range of -25°C to 60°C and offers an IP20 protection rating.
- Manufacturer: Siemens
- Part Number: 3RT2018-2FB44-3MA0
- Series: SIRIUS 3RT
- Frame Size: S00
- Rated Current: 16 A
- Rated Power: 7.5 kW / 400 V
- Number of Poles: 3
- Coil Voltage: 24 V DC
- Coil Feature: Integrated Diode
- Auxiliary Contacts: 2 NO + 2 NC
- Terminal Type: Spring-Loaded
- Protection Rating: IP20
- Operating Temperature: -25°C to 60°C
Specifications
- Part Number: 3RT2018-2FB44-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 782113099477
- GTIN : 00782113099477
- Weight : 2
