Description

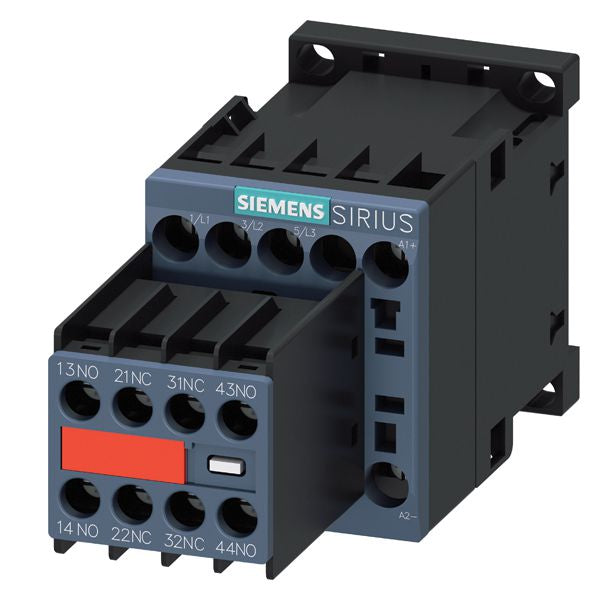

3RT2018-1FB44-3MA0
3RT2018-1FB44-3MA0 is a Siemens SIRIUS 3-pole power contactor designed for reliable motor control applications. This non-reversing contactor features a 24 VDC coil, integrated diode, and is rated for 16 A maximum load current. It is suitable for use in industrial environments requiring efficient switching of 3-phase motors. The contactor is built to IEC standards and offers a compact design with screw terminal connections for secure wiring. It includes auxiliary contacts (2 NO + 2 NC) and is designed for DIN rail or vertical mounting, making it versatile for various control panel layouts. The device is rated for up to 7.5 kW at 400 V and supports a maximum switching voltage of 690 VAC.
- Part Number: 3RT2018-1FB44-3MA0
- Manufacturer: Siemens
- Series/Frame: SIRIUS S00
- Number of Poles: 3
- Rated Current: 16 A
- Coil Voltage: 24 VDC
- Mounting Type: DIN Rail / Vertical
- Termination Style: Screw Terminal
- Maximum Switching Voltage: 690 VAC
- Motor Rating: 7.5 kW at 400 V
- Auxiliary Contacts: 2 NO + 2 NC
- Operating Temperature: -25°C to 60°C
Specifications
- Part Number: 3RT2018-1FB44-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 066264391335
- GTIN : 00662643913354
- Weight : 0.62
