Description

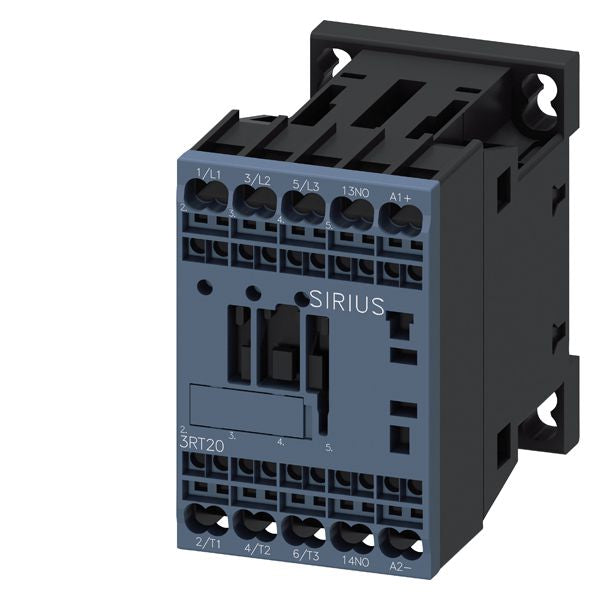

3RT2017-2BB41-0CC0
3RT2017-2BB41-0CC0 is a Siemens power contactor designed for reliable motor control applications, featuring 3-pole switching and a 24 V DC coil for efficient operation. This contactor is rated for AC-3e/AC-3 duty, with a current rating of 12 A and a maximum switching voltage of 690 V AC. It is suitable for use in motor control circuits up to 5.5 kW at 400 V and features a compact S00 frame size. The device includes one normally open (NO) auxiliary contact and uses spring-loaded terminals for secure wiring. Mounting is compatible with 35 mm DIN rail, supporting both screw and snap-on installation.
- Manufacturer: Siemens
- Part Number: 3RT2017-2BB41-0CC0
- Current Rating: 12 A
- Coil Voltage: 24 V DC
- Switching Voltage: 690 V AC max
- Poles: 3
- Mounting: 35 mm DIN rail (screw and snap-on)
- Frame Size: S00
- Series: 3RT20
- Terminal Type: Spring-loaded
- Auxiliary Contacts: 1 NO
- Operating Temperature: -25 °C to +60 °C
Specifications
- Part Number: 3RT2017-2BB41-0CC0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 066264391158
- GTIN : 00662643911589
- Weight : 2
