Description
3RT2016-1BB44-3MA0

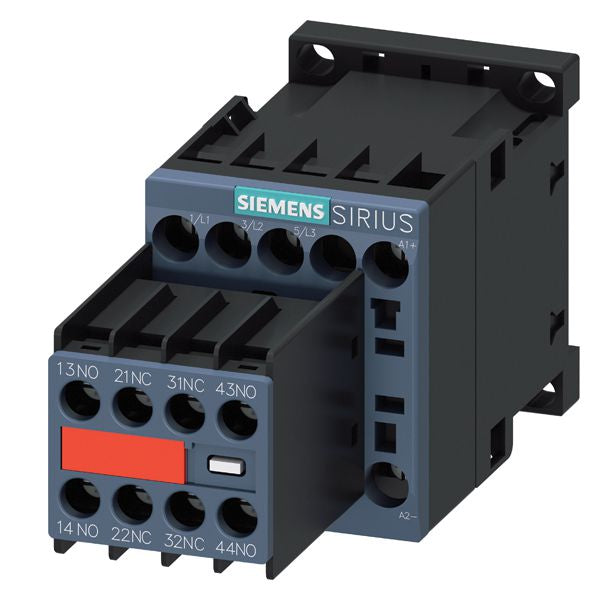

3RT2016-1BB44-3MA0 is a Siemens Sirius 3-pole power contactor designed for motor control applications with a 24V DC coil and 9A current rating.This contactor features a compact S00 frame size, 35mm DIN rail or vertical mounting, and screw terminal connections for reliable wiring. It is rated for AC-3e/AC-3 duty, making it suitable for switching three-phase motors. The unit includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for control circuit integration.
- 9 A contact current rating
- 24 V DC coil voltage
- 3-pole configuration
- 35 mm DIN rail or vertical mount
- S00 frame size
- AC-3e/AC-3 duty rating
- 2 NO + 2 NC auxiliary contacts
- Screw terminal connections
- 4 kW at 400 V
- 600 V maximum voltage
- Captive auxiliary switch
Specifications
- Part Number: 3RT2016-1BB44-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 066264390781
- GTIN : 00662643907810
- Weight : 0.748
