Description

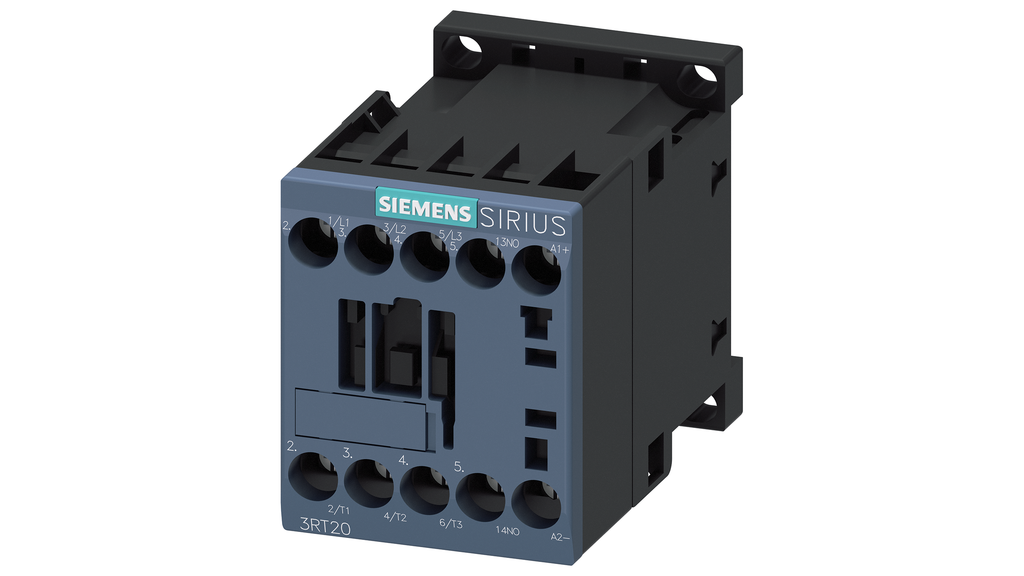

3RT2015-2BF48-3MA4
3RT2015-2BF48-3MA4 is a Siemens power contactor designed for reliable motor control applications. This device features a 3-pole configuration, 7 A rated current, and is suitable for AC-3e/AC-3 duty with a 3 kW / 400 V rating. It operates on a 110 V DC control supply and includes spring-loaded terminals for secure connections. The contactor is part of the S00 frame series and comes with captive auxiliary contacts: 1 NO + 3 NC. Its compact size and robust design make it ideal for industrial motor control and automation systems. The spring-type terminal ensures easy and reliable wiring, while the auxiliary switch center provides additional control flexibility.
- Manufacturer: Siemens
- Part Number: 3RT2015-2BF48-3MA4
- Rated Current: 7 A
- Rated Power: 3 kW / 400 V
- Control Supply Voltage: 110 V DC
- Poles: 3
- Mounting Type: Spring-loaded terminal
- Frame Size: S00
- Auxiliary Contacts: 1 NO + 3 NC
- Duty Type: AC-3e/AC-3
Specifications
- Part Number: 3RT2015-2BF48-3MA4
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 7
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 110
- Coil Voltage Minimum : 110
Product Data
- UPC : 004089256740
- GTIN : 00040892567403
- Weight : 1
