Description
3RT2015-1BB44-3MA0

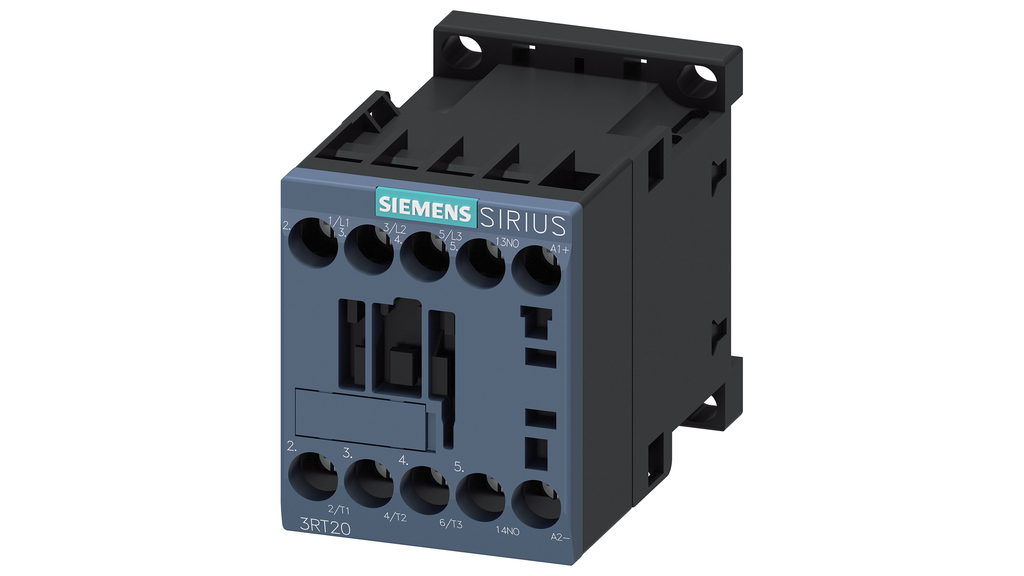

3RT2015-1BB44-3MA0 is a Siemens 3-pole power contactor designed for motor control applications with a 24V DC coil.
This Siemens Sirius contactor supports a maximum current of 7 amperes and is rated for AC-3e/AC-3 utilization categories, suitable for switching motors up to 3 kW at 400 V. It features 3 poles and auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC) with screw terminals. The device is designed for DIN rail mounting and operates within a temperature range of -25°C to +60°C.
- Key Specifications
- Manufacturer: Siemens
- Part Number: 3RT2015-1BB44-3MA0
- Current Rating: 7 A
- Voltage Rating: 400 V AC, 24 V DC coil
- Poles: 3

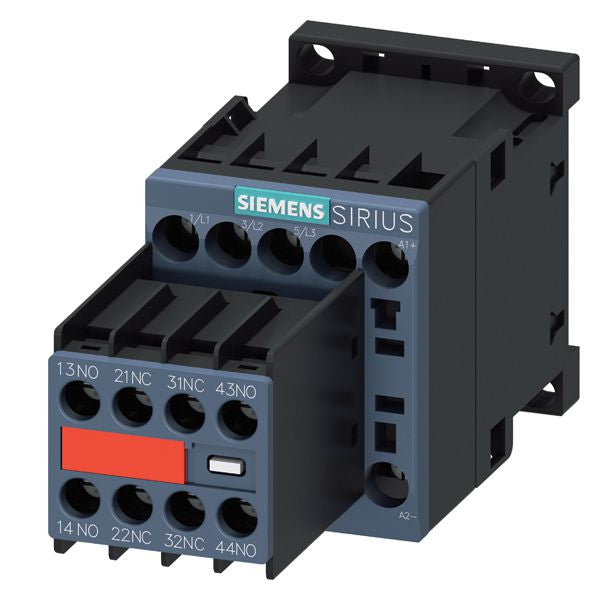

- Auxiliary Contacts: 2 NO + 2 NC
- Mounting Type: DIN Rail
- Application: Motor Control
- Operating Temperature: -25°C to +60°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT2015-1BB44-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 7
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 786676042703
- GTIN : 00786676042703
- Weight : 1
