Description
3RT1476-6NP36

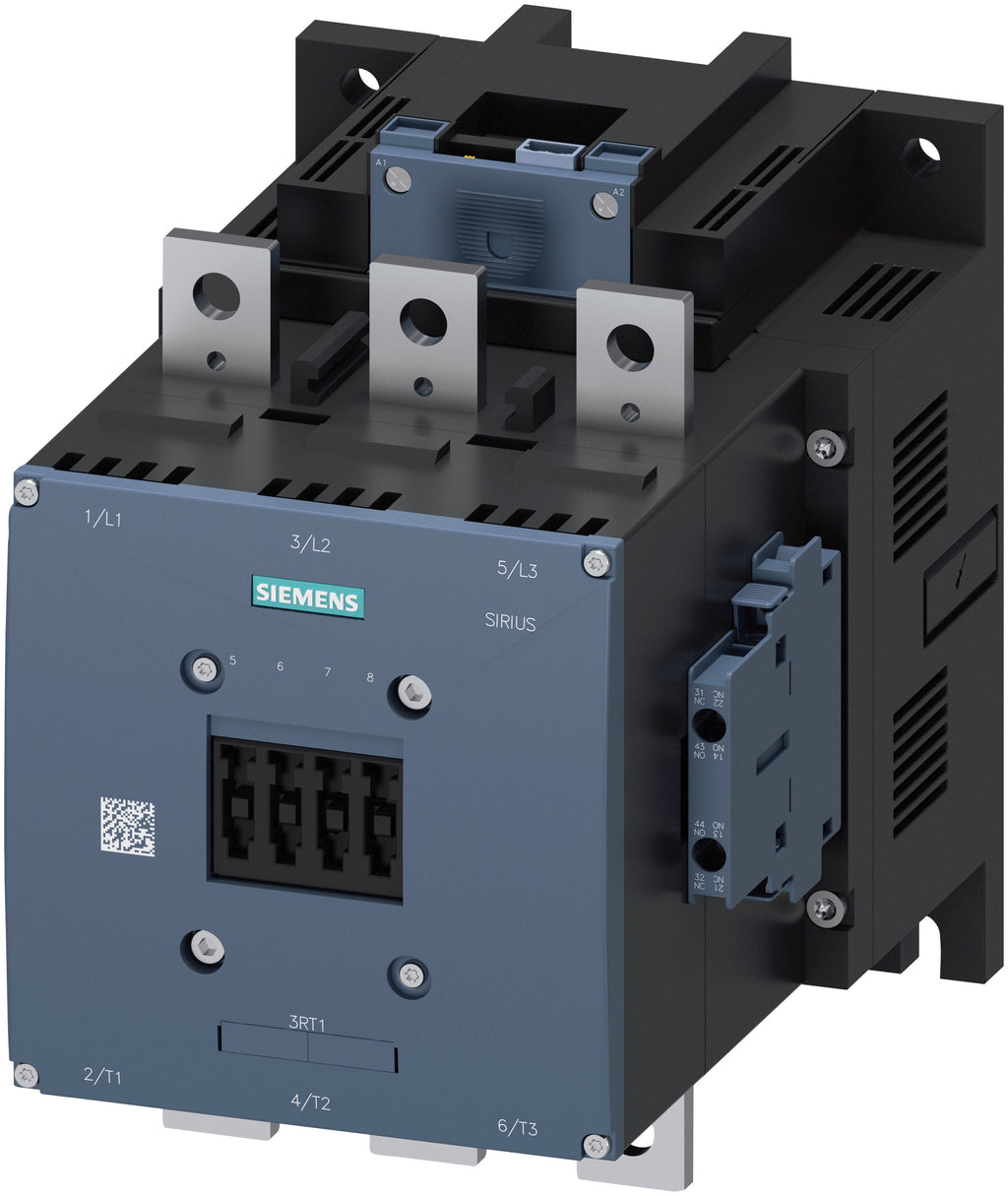

3RT1476-6NP36 is a Siemens SIRIUS power contactor designed for high-capacity motor control applications.
This 3-pole contactor supports AC-1 rated currents up to 690 amps at 690 volts and AC-3 rated currents of 170 amps at 400 volts. It features a coil voltage range of 200 to 277 volts AC or DC at 50/60 Hz, with a 24 V DC PLC input for electronic drive control. The device includes electronic auxiliary contacts configured as 2 normally open and 2 normally closed contacts, and is part of the S12 size frame series.
- Manufacturer: Siemens
- Part Number: 3RT1476-6NP36
- Category: Motor Control Power Contactor
- Current Rating AC-1: 690 A at 690 V
- Current Rating AC-3: 170 A at 400 V
- Number of Poles: 3
- Coil Voltage: 200-277 V AC/DC (50/60 Hz)
- Auxiliary Contacts: 2 NO + 2 NC electronic
- Drive Input: 24 V DC PLC interface
- Series/Frame: SIRIUS S12
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT1476-6NP36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT14
- Voltage : 600
- Amperage : 690
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 277
- Coil Voltage Minimum : 200
Product Data
- UPC : 075455477408
- GTIN : 00754554774084
- Weight : 21
