Description

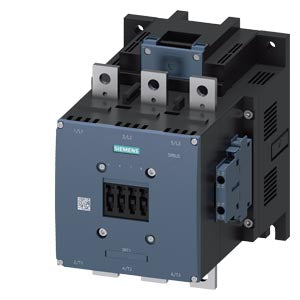

3RT1476-6AR36
3RT1476-6AR36 is a Siemens power contactor designed for motor control applications with a 3-pole configuration and a high current rating.
This contactor supports AC-1 utilization category with a rated operational current of 690 A at 690 V AC (50-60 Hz) and is suitable for DC operation with control voltages of 440-480 V UC. It features a Size S12 frame and includes auxiliary contacts configured as 2 Normally Open (NO) and 2 Normally Closed (NC). The device offers robust surge voltage resistance of 8 kV on the main circuit and 6 kV on the auxiliary circuit, along with shock resistance to ensure reliable operation in demanding industrial environments. Busbar connections facilitate installation flexibility.
- Manufacturer: Siemens
- Part Number: 3RT1476-6AR36
- Rated Operational Current: 690 A (AC-1)
- Rated Voltage: 690 V AC (50-60 Hz)
- Poles: 3
- Frame Size: S12
- Auxiliary Contacts: 2 NO + 2 NC
- Control Voltage (Uc): 440-480 V AC/DC
- Surge Voltage Resistance: 8 kV main circuit, 6 kV auxiliary circuit
- Shock Resistance: Rectangular shock tested
- Busbar Connections
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT1476-6AR36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT14
- Voltage : 600
- Amperage : 690
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 440
Product Data
- UPC : 754554773582
- GTIN : 00754554773582
- Weight : 21
