Description

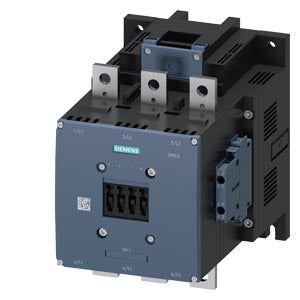

3RT1476-6AV36
3RT1476-6AV36 is a Siemens power contactor designed for AC-1 applications with a rated capacity of 690A at 690V and 40 degrees C ambient temperature. This 3-pole contactor features a Size S12 frame and is suitable for three-phase motor control and industrial power distribution systems. The unit operates on AC voltage (50-60 Hz) with a control circuit voltage (Uc) of 380-420V AC or DC, providing flexibility for various control signal requirements. A surge suppressor with varistor enhances reliability and ensures stable performance in demanding applications. The contactor includes conventional auxiliary contacts configured as 2 NO (Normally Open) and 2 NC (Normally Closed) contacts, along with 3 NO main contacts for the main current circuit. Electrical connections feature a connection bar for the main current circuit and screw-type terminals for auxiliary and control circuits, supporting conductor cross-sections up to 480 mm². The unit exhibits robust mechanical and electrical characteristics including 1000V insulation voltage, 8kV voltage resistance, and shock resistance rated at 13.4g/5ms and 6.5g/10ms. Power loss is 185.7W under rated conditions.
- Rated Current: 690A at 40 degrees C
- Rated Voltage: 690V AC (50-60 Hz)
- Control Voltage (Uc): 380-420V AC or DC
- Configuration: 3-pole, Size S12
- Auxiliary Contacts: 2 NO + 2 NC conventional
- Main Contacts: 3 NO
- Insulation Voltage: 1000V
- Voltage Resistance: 8kV
- Power Loss: 185.7W
- Application: AC-1 motor control and power distribution
Specifications
- Part Number: 3RT1476-6AV36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT14
- Voltage : 600
- Amperage : 690
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 420
- Coil Voltage Minimum : 380
Product Data
- UPC : 075455477357
- GTIN : 00754554773575
- Weight : 21
