Description
3RT1456-6LA06

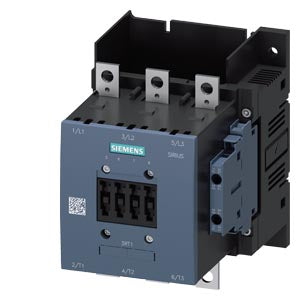

3RT1456-6LA06 is a Siemens 3-pole AC-1 power contactor rated for 275 amperes and 690 volts, designed for motor control applications.This contactor features a Size S6 frame and operates at up to 40°C ambient temperature. It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for control circuit integration. The main circuit connection is via busbar, and the auxiliary circuit uses screw terminals. It is chassis mountable and suitable for switching AC-1 loads.
- Key Specifications
- Amperage: 275 A
- Voltage: 690 V AC
- Poles: 3
- Frame/Series: Size S6
- Auxiliary Contacts: 2 NO + 2 NC
- Mounting Type: Chassis Mount
- Main Circuit Connection: Busbar
- Auxiliary Circuit Connection: Screw Terminal
- Operating Temperature: -25°C to +60°C
- Part Number: 3RT1456-6LA06
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT14
- Voltage : 600
- Amperage : 185
- Phase : 3
- Poles : 3
- UPC : 019512504939
- GTIN : 00195125049390
- Weight : 8
