Description

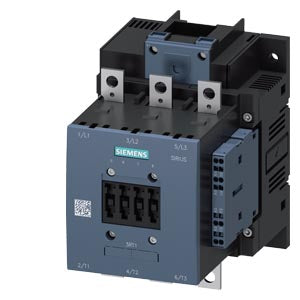

3RT1456-6AP38-0PA5
3RT1456-6AP38-0PA5 is a Siemens 3-pole power contactor designed for AC-1 applications with a 275 ampere rating and 690 volt capacity.This contactor features a conventional auxiliary contact configuration with 2 normally open (NO) and 2 normally closed (NC) contacts. It operates with a control supply voltage (Uc) of 220-240 V AC (50-60 Hz) or DC and is rated for operation at up to 40 degrees Celsius ambient temperature. The main circuit connection is via busbar, and the device is sized S6 for mounting and integration.
- Key Specifications
- Amperage: 275 A
- Voltage: 690 V AC
- Poles: 3
- Control Supply Voltage (Uc): 220-240 V AC/DC
- Auxiliary Contacts: 2 NO + 2 NC
- Mounting Type: Busbar connection
- Series/Frame: Size S6
- Application: AC-1 (non-inductive or slightly inductive loads)
- Ambient Temperature Rating: 40 °C
- Part Number: 3RT1456-6AP38-0PA5
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT14
- Voltage : 600
- Amperage : 185
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
- Weight : 8
