Description

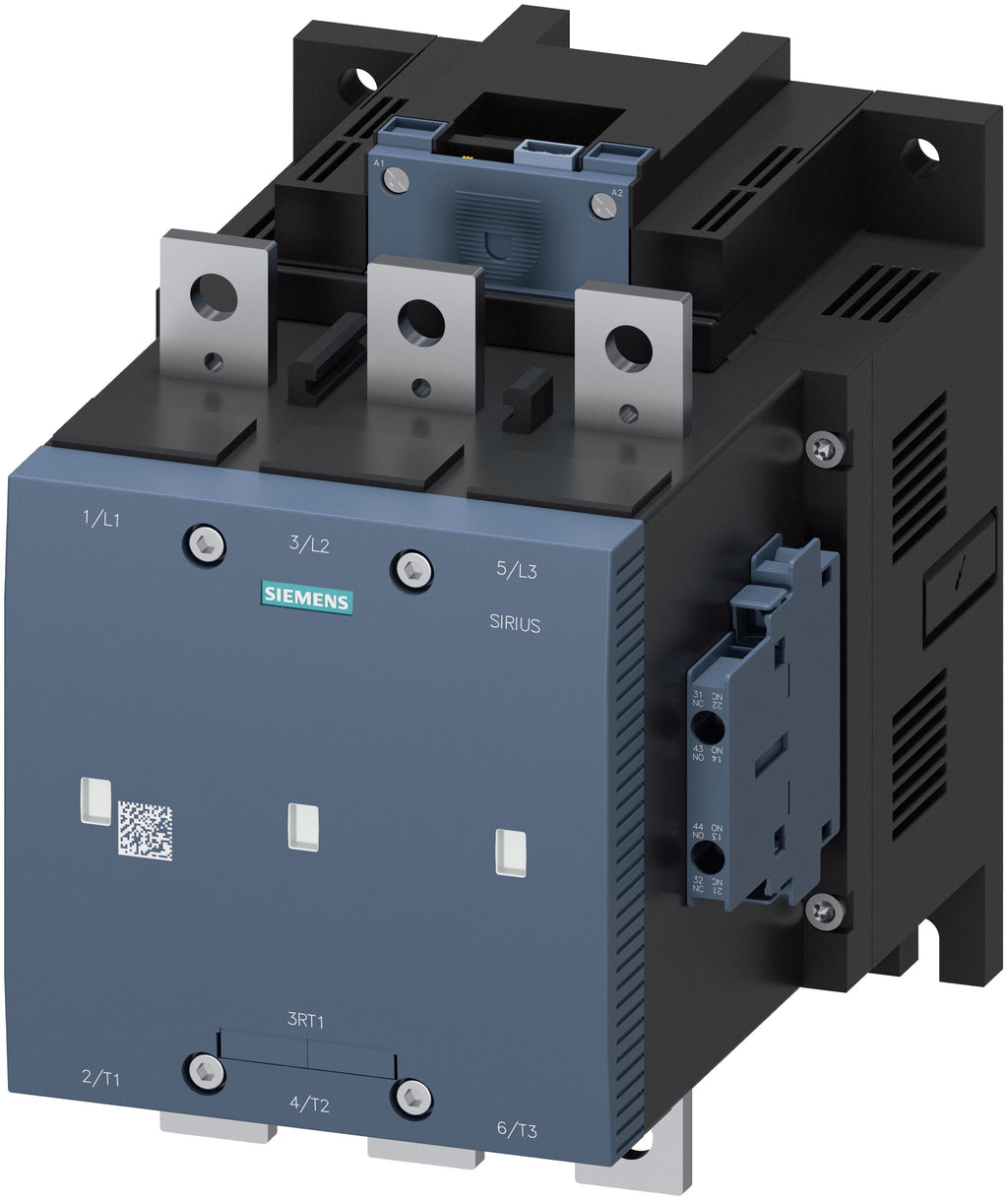

3RT1276-6NP36
3RT1276-6NP36 is a Siemens SIRIUS vacuum contactor designed for reliable motor control in industrial applications. This 3-pole device features a rated current of 500 A and is suitable for switching loads up to 250 kW at 400 V AC, with a control voltage range of 200-277 V AC/DC. The contactor is built for durability and efficient operation in demanding environments. The 3RT1276-6NP36 vacuum contactor is part of the S12 frame series and is engineered for AC-3 duty, making it ideal for frequent motor starting and stopping. It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for control circuit integration. The device is designed for busbar mounting and is suitable for use in systems requiring high reliability and long service life.
- Rated current: 500 A
- Rated power: 250 kW at 400 V
- Operating voltage: 400 V AC, 200-277 V AC/DC control
- Number of poles: 3
- Mounting type: Busbar
- Frame size: S12
- Application: AC-3 motor control
- Auxiliary contacts: 2 NO + 2 NC
- Shock resistance: 8.5g / 5 ms, 4.2g / 10 ms
- Frequency: 50-60 Hz
Specifications
- Part Number: 3RT1276-6NP36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Section : Vacuum Contactor
- Family : Sirius
- Type : 3RT12
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 277
- Coil Voltage Minimum : 200
Product Data
- UPC : 075455477399
- GTIN : 00754554773995
- Weight : 25
