Description
3RT1276-6AF36

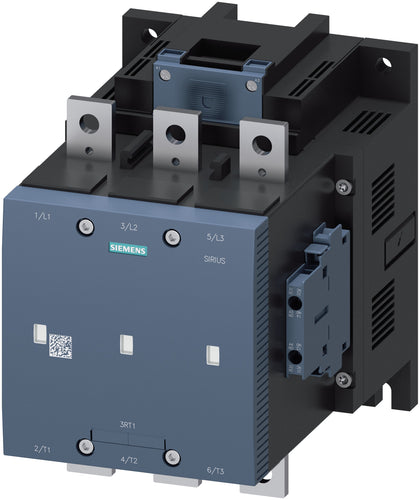

3RT1276-6AF36 is a Siemens SIRIUS vacuum contactor designed for motor control applications with a 500 ampere rating and 3 poles.This vacuum contactor operates with a coil voltage of 110 to 127 V AC/DC and supports a maximum power rating of 250 kW at 400 V. It features a size S12 frame, conventional operating mechanism, and busbar terminal connections. The device includes auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC) contacts. It is suitable for AC-3e/AC-3 utilization categories and provides reliable switching performance with up to 10 million operating cycles. The contactor is panel mountable and rated for operation in temperatures from -25 to 60 degrees Celsius.
- Key Specifications
- Amperage: 500 A
- Poles: 3
- Coil Voltage: 110-127 V AC/DC
- Power Rating: 250 kW at 400 V
- Frame Size: S12
- Auxiliary Contacts: 2 NO + 2 NC
- Terminal Type: Busbar
- Operating Cycles: 10,000,000
- Operating Temperature: -25 to 60 °C
- Mounting Type: Panel Mount
- Utilization Category: AC-3e/AC-3
- Operating Frequency: 50/60 Hz
Specifications
- Part Number: 3RT1276-6AF36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Section : Vacuum Contactor
- Family : Sirius
- Type : 3RT12
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 127
- Coil Voltage Minimum : 110
Product Data
- UPC : 075455477325
- GTIN : 00754554773254
- Weight : 25
