Description
3RT1266-6AF36

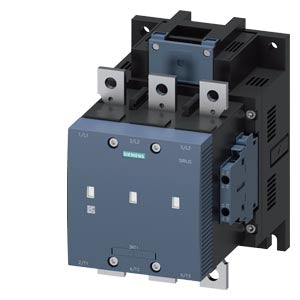

3RT1266-6AF36 is a Siemens SIRIUS vacuum contactor designed for three-phase motor switching applications with a 300 A rated load current and 160 kW power rating at 400 V. This non-reversing contactor features a compact S10 frame size and includes conventional auxiliary contacts configured as 2 NO + 2 NC for enhanced control flexibility. The unit operates with a 110 to 127 VAC/VDC coil at 50/60 Hz and supports both screw terminal and busbar connection options for flexible installation.
- Part Number: 3RT1266-6AF36
- Manufacturer: Siemens
- Product Line: SIRIUS
- Type: Vacuum Contactor
- Rated Current: 300 A
- Power Rating: 160 kW at 400 V
- Poles: 3-Pole
- Coil Voltage: 110-127 VAC/VDC
- Frequency: 50/60 Hz
- Frame Size: S10
- Auxiliary Contacts: 2 NO + 2 NC
- Connection Type: Screw Terminal / Busbar
Specifications
- Part Number: 3RT1266-6AF36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Section : Vacuum Contactor
- Family : Sirius
- Type : 3RT12
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 127
- Coil Voltage Minimum : 110
Product Data
- UPC : 075455477305
- GTIN : 00754554773056
- Weight : 17
