Description

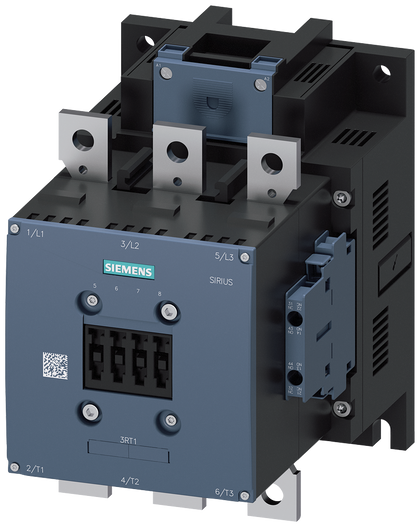

3RT1066-6NP36
3RT1066-6NP36 is a Siemens Sirius 3-pole motor contactor rated for 300 amps and designed for motor control applications.
This IEC-rated contactor features a 600V AC voltage rating and supports a coil voltage range of 200 to 277 V AC/DC. It is built on the S10 frame size and includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts. The contactor is suitable for panel mounting with screw terminals and busbar connections, providing reliable switching for three-phase motors up to 160 kW at 400 V.
- Key Specifications
- Amperage: 300 A
- Voltage Rating: 600 V AC
- Coil Voltage: 200-277 V AC/DC
- Poles: 3
- Frame Size: S10
- Auxiliary Contacts: 2 NO + 2 NC
- Mounting Type: Panel mount with screw fixing
- Terminal Type: Screw terminals and busbar
- Motor Power Rating: 160 kW at 400 V
- Standards: IEC 60947-4-1 compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT1066-6NP36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
Product Data
- UPC : 075455477378
- GTIN : 00754554773780
- Weight : 16
