Description
3RT1066-2AP36

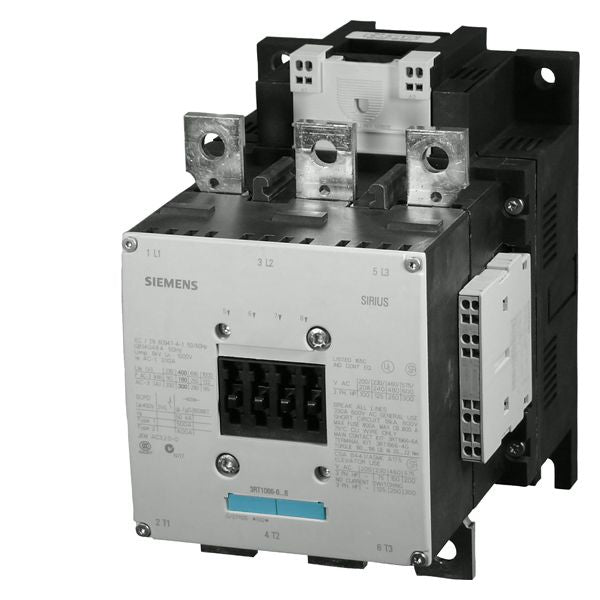

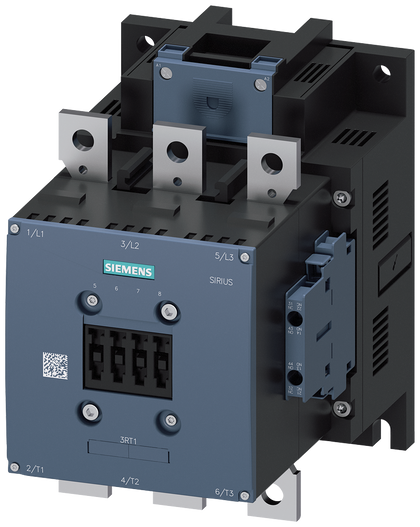

3RT1066-2AP36 is a Siemens SIRIUS power contactor designed for reliable motor control applications. This 3-pole contactor features a 220-240V AC/DC coil, 300A current rating, and 160kW switching capacity at 400V, making it suitable for demanding industrial environments. The unit includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for flexible control circuit integration. Engineered for durability and performance, the 3RT1066-2AP36 offers conventional drive operation and is compatible with standard control bar connections. Its robust design supports both AC and DC control voltages, ensuring compatibility with a wide range of motor control systems. The contactor is designed for vertical mounting with screw fixing and features spring terminals for secure wiring.
- 300A rated current
- 220-240V AC/DC coil voltage
- 3-pole main circuit
- 160kW at 400V
- 2NO + 2NC auxiliary contacts
- Vertical mounting with screw fixing
- S10 size frame
- Spring terminal/busbar connection
- Conventional drive operation
- IEC switching standard
- AC 50/60 Hz operation
- SIRIUS series
Specifications
- Part Number: 3RT1066-2AP36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
Product Data
- UPC : 004089287720
- GTIN : 00040892877205
- Weight : 16
