Description
3RT1066-6NB36

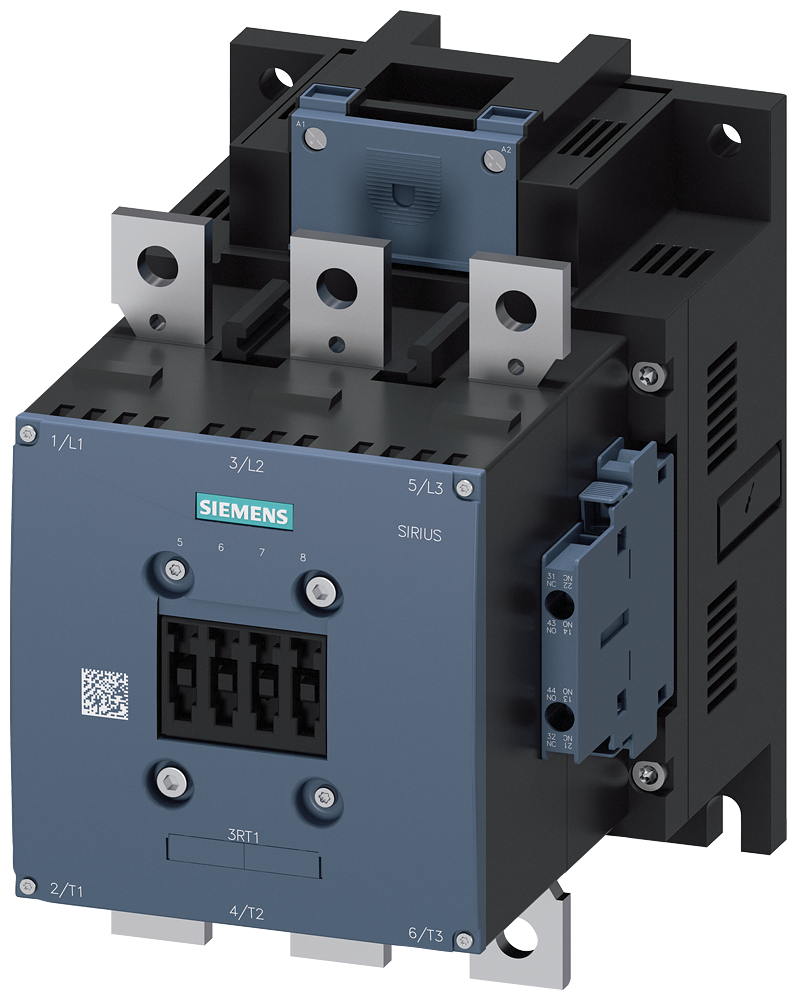

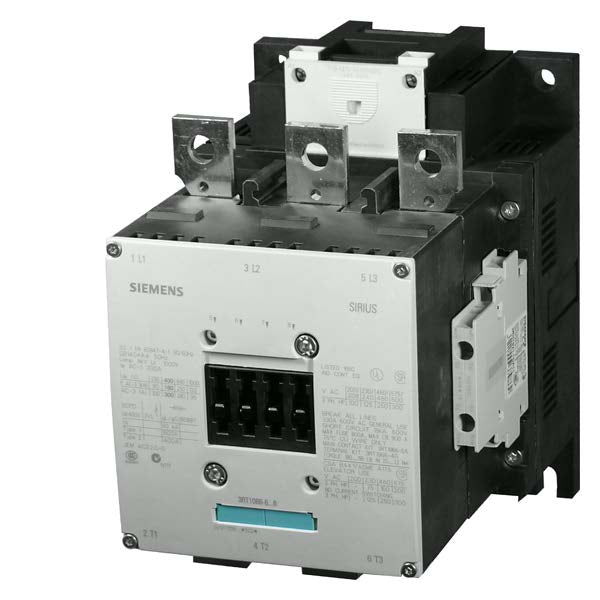

3RT1066-6NB36 is a Siemens SIRIUS power contactor designed for reliable motor control and switching applications in industrial environments. This 3-pole contactor features a rated operational current of 300 A at AC-3e duty cycle and supports voltages up to 600 V, making it suitable for heavy-duty motor control applications. The contactor operates with a control supply voltage range of 21 to 27.3 V AC/DC at 50/60 Hz, providing flexible integration into various control systems. It includes 2 NO (normally open) and 2 NC (normally closed) auxiliary contacts for enhanced control logic implementation. The Size S10 frame design offers compact installation while maintaining robust electrical performance. Screw terminal connections and vertical mounting orientation ensure secure and straightforward installation in control panels and motor starter assemblies.
- Rated Current: 300 A at AC-3e
- Voltage Rating: 600 V maximum
- Poles: 3-pole configuration
- Auxiliary Contacts: 2 NO + 2 NC
- Control Supply: 21 to 27.3 V AC/DC, 50/60 Hz
- Frame Size: S10
- Mounting: Vertical screw fixing
- Terminal Type: Screw terminal and busbar compatible
- Duty Cycle: AC-3e rated
- Power Rating: 160 kW at 400 V
Specifications
- Part Number: 3RT1066-6NB36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 26
- Coil Voltage Minimum : 23
Product Data
- UPC : 075455477376
- GTIN : 00754554773766
- Weight : 16
