Description

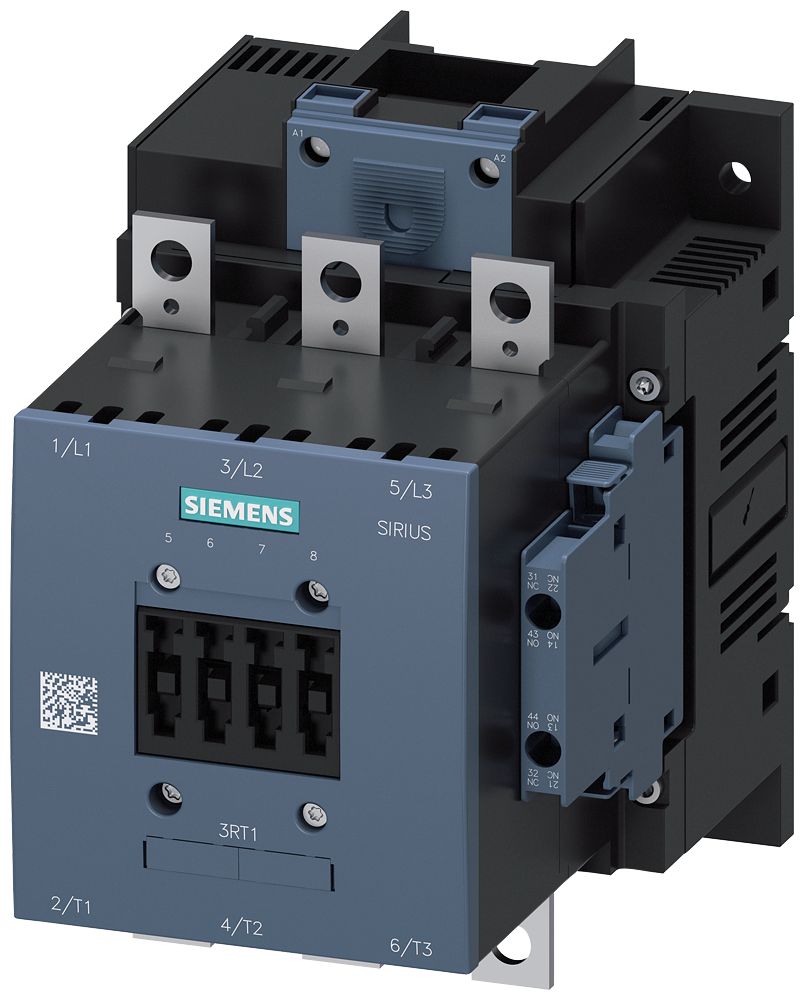

3RT1055-6NF36
3RT1055-6NF36 is a Siemens SIRIUS IEC contactor designed for three-phase motor control applications with 150 ampere AC-3 rating and 600 volt maximum operating voltage.
This three-pole contactor features a compact S6 frame size with bar connections for secure terminal mounting. The unit is rated for 150 horsepower at 575/600 volts and 125 horsepower at 460/480 volts. It includes a 110 to 127 volt AC/DC magnetic coil with auxiliary contacts rated for UL A600/Q600 service. The contactor supports up to 8 auxiliary contact positions with configurable NO/NC combinations for flexible control circuit design.
- Amperage Rating: 150 AMP AC-3
- Voltage: 600V 3-Phase
- Poles: 3-Pole
- Coil Voltage: 110 to 127 Volt AC/DC
- Frame Size: S6
- Horsepower: 150 HP at 575/600V, 125 HP at 460/480V
- Terminal Type: Bar Connections
- Auxiliary Contacts: 2NO+2NC Standard Configuration
- Frequency: 50/60 Hz
- Certification: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT1055-6NF36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 127
- Coil Voltage Minimum : 110
Product Data
- UPC : 075455477365
- GTIN : 00754554773650
- Weight : 8
