Description

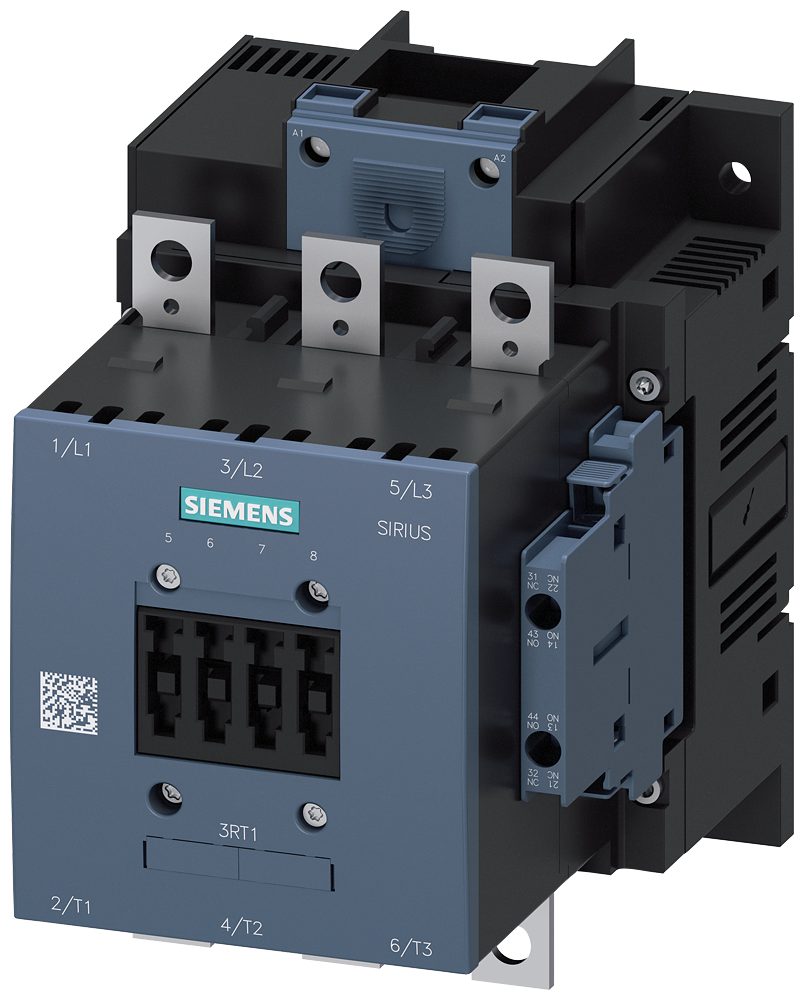

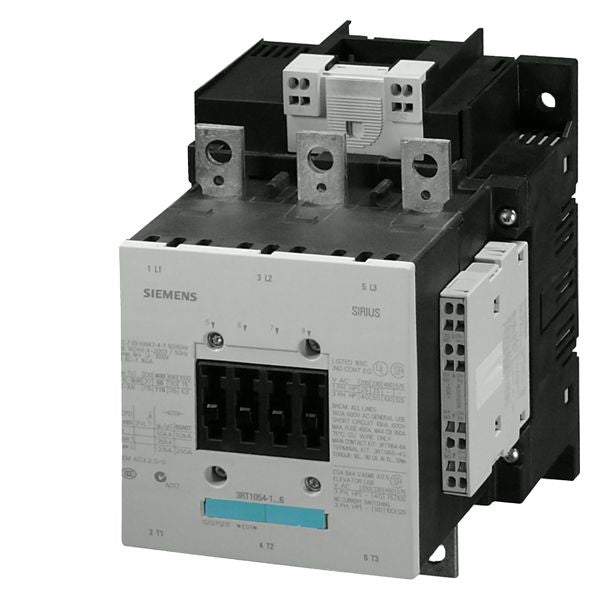

3RT1055-2AF36
3RT1055-2AF36 is a Siemens SIRIUS power contactor designed for reliable motor control and switching applications in industrial environments. This three-pole contactor delivers high current capacity with AC-3 rated performance at 150 amperes, supporting up to 75 kilowatts at 400 volts AC with 50/60 Hz operation. The contactor features a compact Size S6 frame with 1000 volt insulation rating and operates with 110 to 127 volt AC/DC control supply voltage for flexible installation in various control circuits. Key Specifications
- Part Number: 3RT1055-2AF36
- Manufacturer: Siemens AG
- Current Rating: 150 A AC-3
- Power Rating: 75 kW at 400 V
- Poles: 3-pole
- Frame Size: S6
- Control Voltage: 110 to 127 V AC/DC
- Auxiliary Contacts: 2 NO + 2 NC
- Insulation Voltage: 1000 V
- Operating Frequency: 750 1/h maximum at AC-3
- Terminal Type: Screw connection
- Mounting: Vertical mount with spring terminal/busbar
Specifications
- Part Number: 3RT1055-2AF36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 127
- Coil Voltage Minimum : 110
Product Data
- UPC : 004089265686
- GTIN : 00040892656862
- Weight : 8
