Description
3RT1055-6AR36

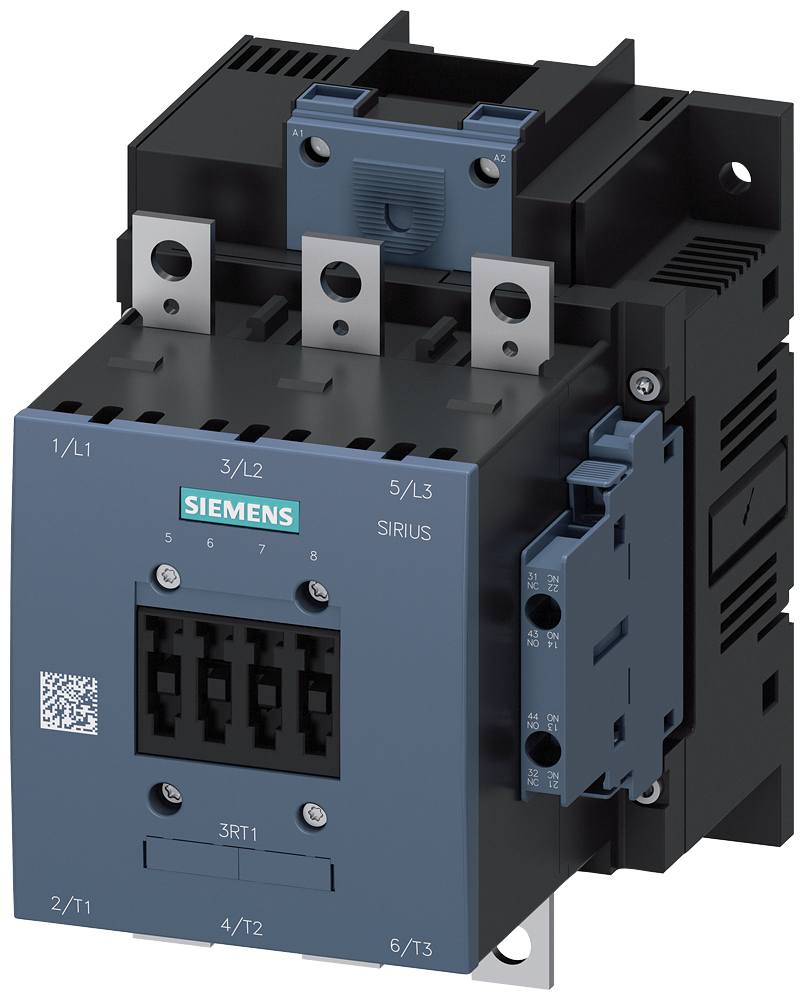

3RT1055-6AR36 is a Siemens Sirius 3-pole, 3-phase power contactor designed for motor control applications with a 440V coil.
This contactor is rated for 150 amps AC-3 duty and supports up to 75 kW (100 HP) at 400V AC. It features IEC size S6 construction, suitable for switching motors and other heavy loads. The device includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, screw fixing for vertical mounting, and busbar screw terminals for secure connections. It operates on 440 to 480 VAC/VDC coil voltage and meets industrial standards for reliable motor control.
- Amperage: 150A AC-3
- Voltage: 600V rated, coil voltage 440-480V AC/DC
- Poles: 3-pole
- Phase: 3-phase
- Size/Frame: IEC Size S6
- Auxiliary Contacts: 2 NO + 2 NC
- Mounting Type: Screw fixing, vertical mount
- Terminals: Screw terminal/busbar
- Power Rating: 75 kW (100 HP) at 400V AC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT1055-6AR36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 440
Product Data
- UPC : 075455477170
- GTIN : 04011209507340
- Weight : 8
