Description
3RT1055-6AM36

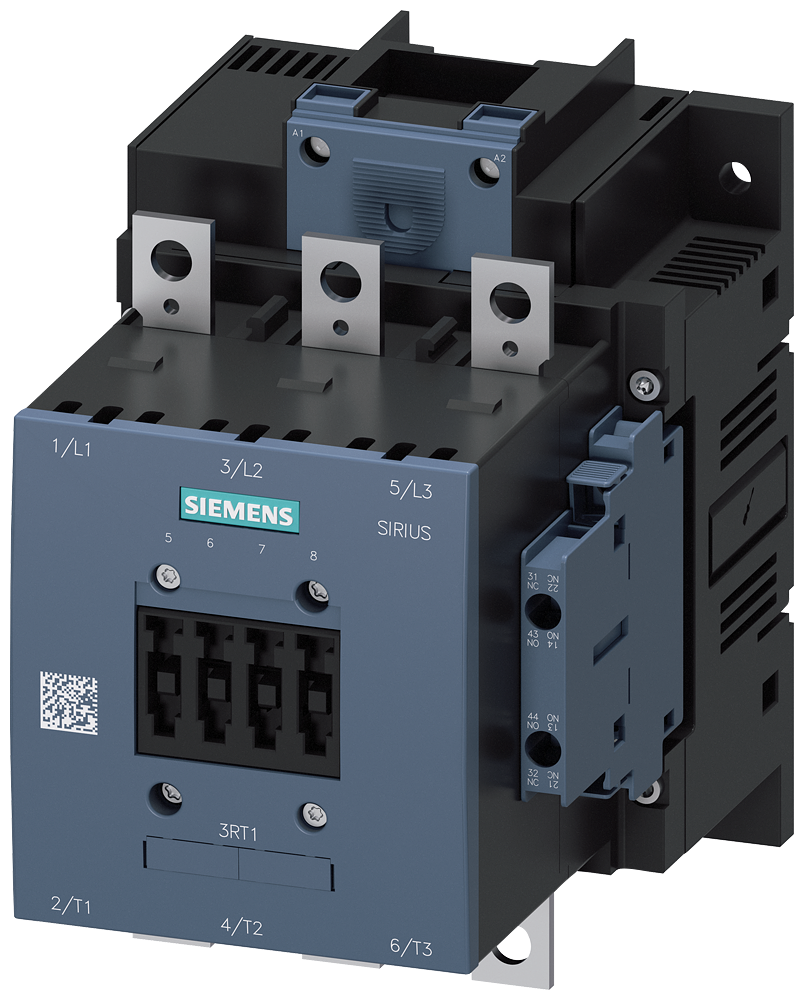

3RT1055-6AM36 is a Siemens 3-pole power contactor rated for 150 amps with a 200-220V AC/DC coil voltage, designed for motor control applications.3RT1055-6AM36 features a conventional drive with a wide control voltage range of 200-220V AC/DC, suitable for flexible system integration. It supports AC-3 duty at 150A and motor power up to 75 kW at 400V AC. The contactor includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts and is built on the Size S6 frame with conventional rail connections.
- Amperage: 150 A AC-3
- Voltage: 200-220 V AC/DC coil voltage
- Poles: 3
- Motor Power: 75 kW at 400 V AC
- Auxiliary Contacts: 2 NO + 2 NC
- Drive Type: Conventional
- Frame Size: S6
- Mounting: Conventional rail connections
Specifications
- Part Number: 3RT1055-6AM36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 220
- Coil Voltage Minimum : 200
Product Data
- UPC : 075455477166
- GTIN : 04011209507326
- Weight : 8
