Description
3RT1055-6AD36

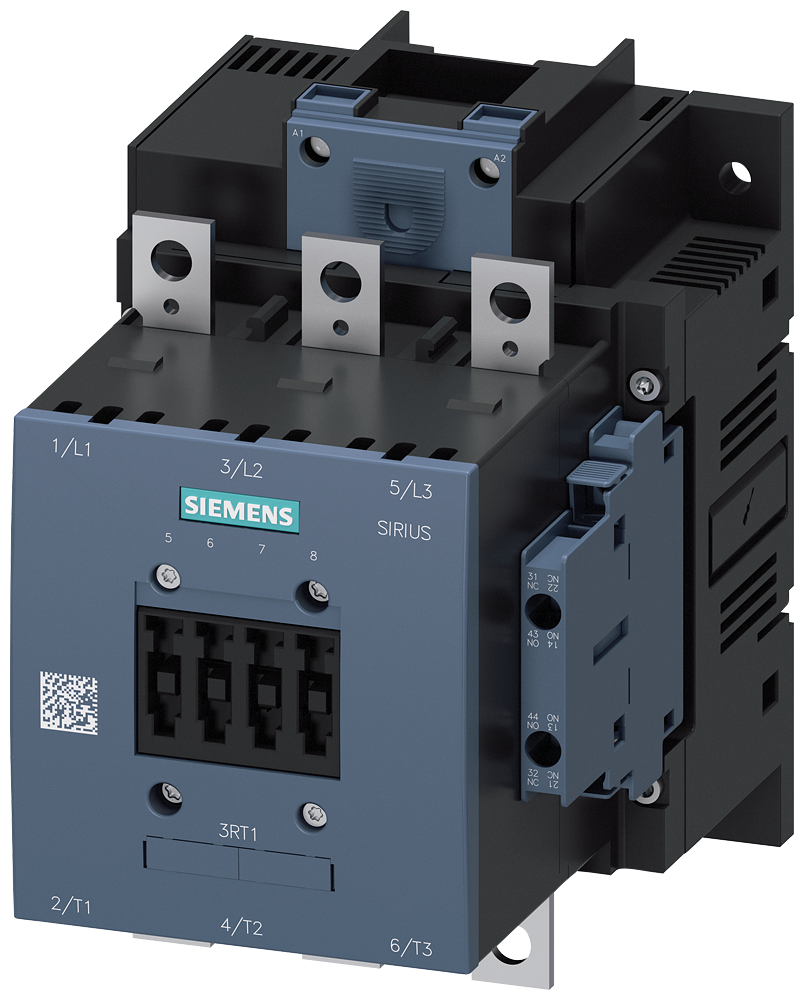

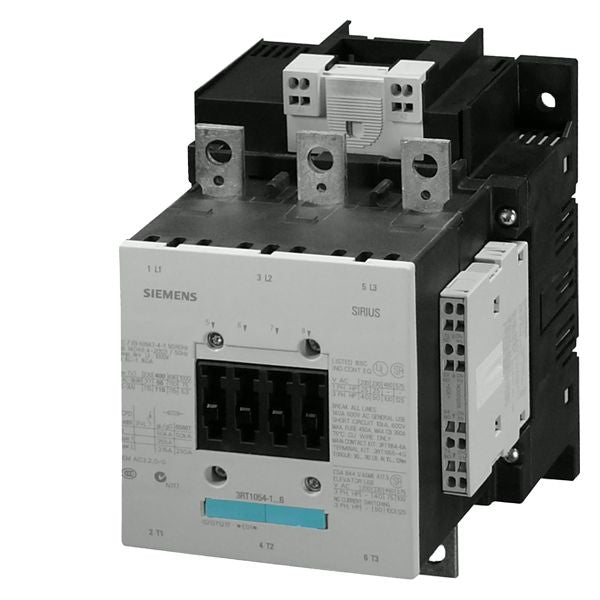

3RT1055-6AD36 is a Siemens Sirius 3-pole motor contactor rated for 150 amps and designed for motor control applications.
This Siemens 3RT1055-6AD36 contactor supports up to 150A AC-3 duty and is suitable for 3-phase motors with a voltage rating up to 600V. It features a 3-pole configuration with a coil voltage range of 42 to 48 VAC/VDC. The contactor is IEC rated and designed for reliable switching of motors up to 125 HP at 460V and 60 HP at 230V. It includes screw connection terminals and base mounting for panel installation.
- Amperage: 150A AC-3
- Voltage: Up to 600V AC
- Coil Voltage: 42-48 VAC/VDC
- Poles: 3
- Horsepower Rating: 125 HP @ 460V, 60 HP @ 230V
- Mounting Type: Base mount
- Auxiliary Contacts: 2 NO + 2 NC (side mounted)
- Standards: IEC 60947-4-1 compliant
- Frame Size: S6
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT1055-6AD36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 48
- Coil Voltage Minimum : 42
Product Data
- UPC : 754554771656
- GTIN : 00754554771656
- Weight : 8
