Description
3RT1034-3BB40-3MA0

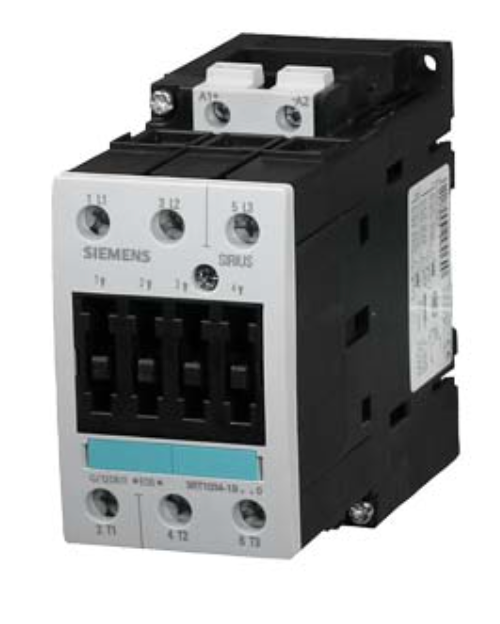

3RT1034-3BB40-3MA0 is a Siemens Sirius power contactor designed for AC-3 motor control applications with a 32 ampere rating at 400 volts and 15 kilowatt capacity. This three-pole IEC contactor features a Size S2 frame with cage clamp spring-type terminals for secure connections. The unit operates on 24 volts DC coil voltage and is suitable for industrial automation and motor starter applications requiring reliable switching performance. Built to international standards including IEC 60947 and EN 60947, this contactor delivers consistent performance across varying climate conditions with touch-safe design per DIN VDE 0106 Part 100. The basic unit contains main conducting paths and can be extended with auxiliary switch blocks for enhanced functionality. Removable box terminals on the main conductor connections allow for flexible installation of ring cable lugs or bars. Varistors and RC elements can be plugged directly at coil terminals for surge suppression and protection.
- Amperage Rating: 32 A AC-3
- Voltage: 400 V AC
- Power Rating: 15 kW
- Coil Voltage: 24 V DC
- Poles: 3-pole
- Frame Size: S2
- Terminal Type: Cage Clamp
- Standards: IEC 60947, EN 60947, UL 508
- Mounting: Panel Mount
- Design: Non-Reversing Standard
- Insulation Voltage: 690 V
Specifications
- Part Number: 3RT1034-3BB40-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 32
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- Weight : 3
