Description
3RT1034-1DW48-0PA6

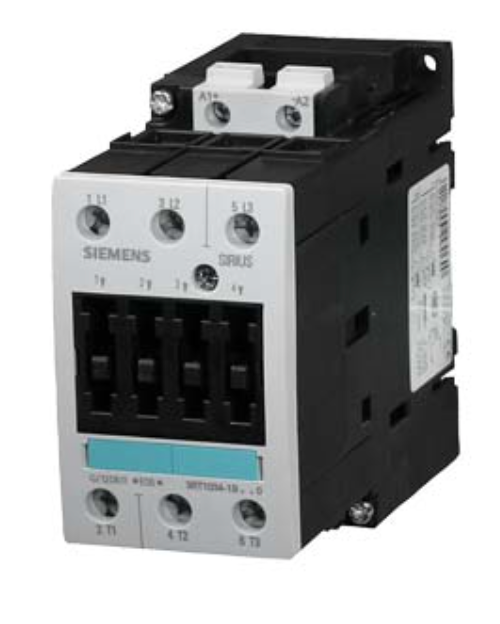

3RT1034-1DW48-0PA6 is a Siemens Sirius power contactor designed for AC-3 motor control applications with 32 ampere AC-3 rating and 15 kW power handling at 400V. This 3-pole contactor features 48V DC coil voltage and includes multiple auxiliary contact configurations: 4 NO + 2 NC main contacts with lateral 1 NO + 1 NC inside and 1 NO outside auxiliary contacts. The contactor operates across 0.8-1.1 times rated voltage at 40 degrees Celsius and 0.85-1.1 times rated voltage at higher temperatures, ensuring reliable performance in demanding industrial motor control environments.
- Amperage Rating: 32 A AC-3
- Power Rating: 15 kW at 400V
- Coil Voltage: 48V DC
- Number of Poles: 3
- Main Contacts: 4 NO + 2 NC
- Auxiliary Contacts: Lateral 1 NO + 1 NC inside, 1 NO outside
- Frame Size: S2
- Voltage Range: 0.8-1.1 Us at 40 degrees C, 0.85-1.1 Us at higher temperatures
- Terminal Connection: Screw
Specifications
- Part Number: 3RT1034-1DW48-0PA6
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 32
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 48
- Coil Voltage Minimum : 48
Product Data
- Weight : 3
