Product Info
- Manufacturer:Socomec
- Sub-Category:Disconnect
Description
38513038

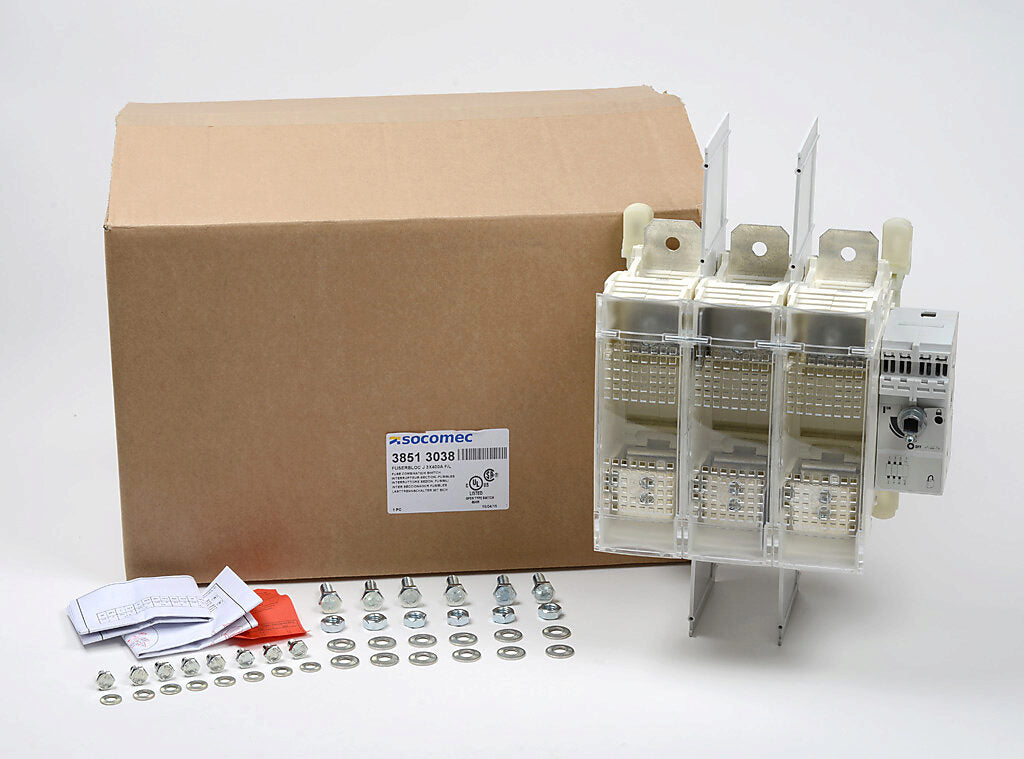

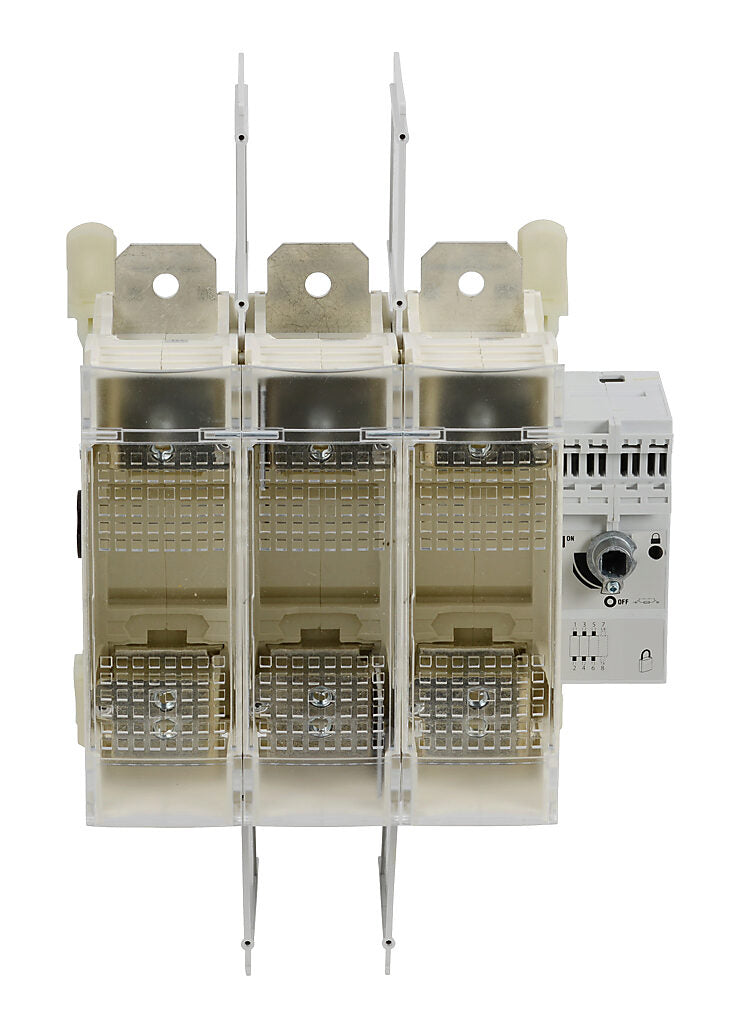

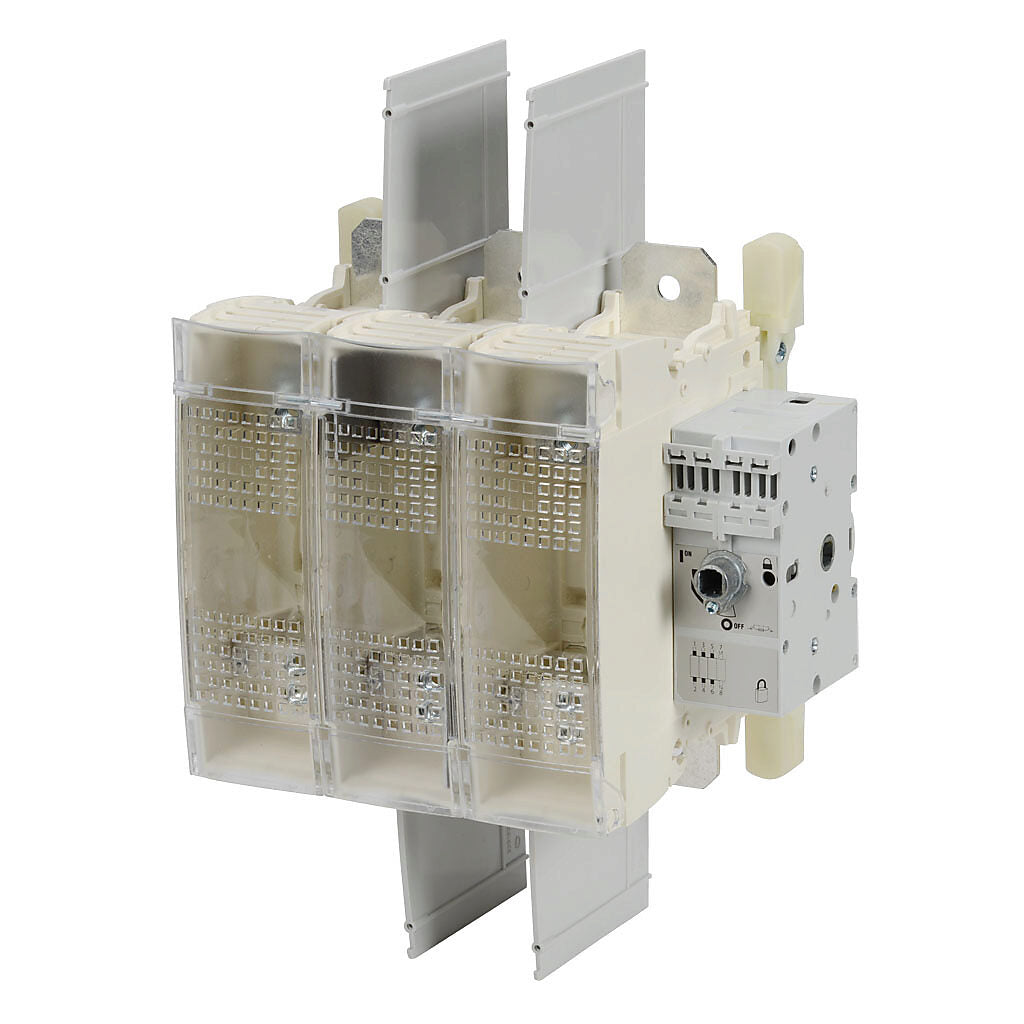

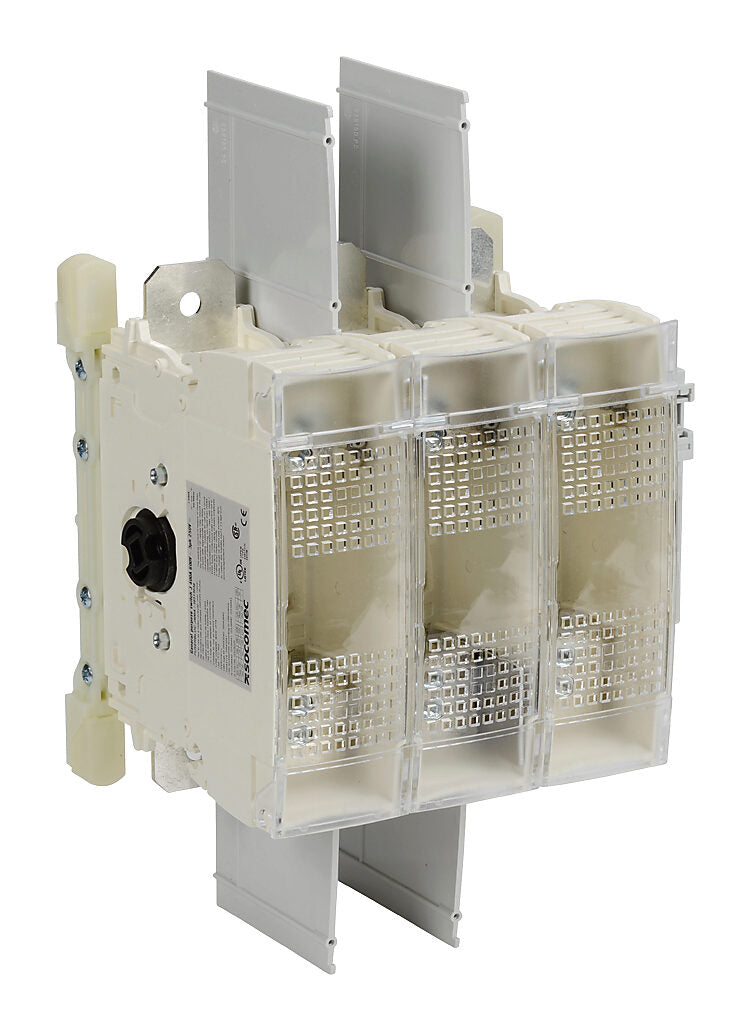

38513038 is a Socomec FUSERBLOC fusible rotary disconnect switch designed for reliable circuit isolation and protection in industrial and commercial power distribution systems. This 3-pole switch is rated for 400A and 600VAC/250VDC, making it suitable for a wide range of applications requiring robust disconnect capability. The switch is load break capable and features double break contacts per pole for complete isolation when in the OFF position. It is panel mountable and can be operated from the front or side, with a 10 x 10mm shaft size. The unit is UL 98 rated and accepts Class J, CC, and L fuses for flexible fuse selection. Line and load terminal shrouds and lugs are sold separately.Key Specifications
- Part Number: 38513038
- Manufacturer: Socomec
- Series: FUSERBLOC
- Type: Fusible Rotary Disconnect Switch
- Number of Poles: 3
- Amperage Rating: 400A
- Voltage Rating: 600 VAC / 250 VDC
- Interrupt Rating: 200kA SCCR
- Mounting: Panel Mount

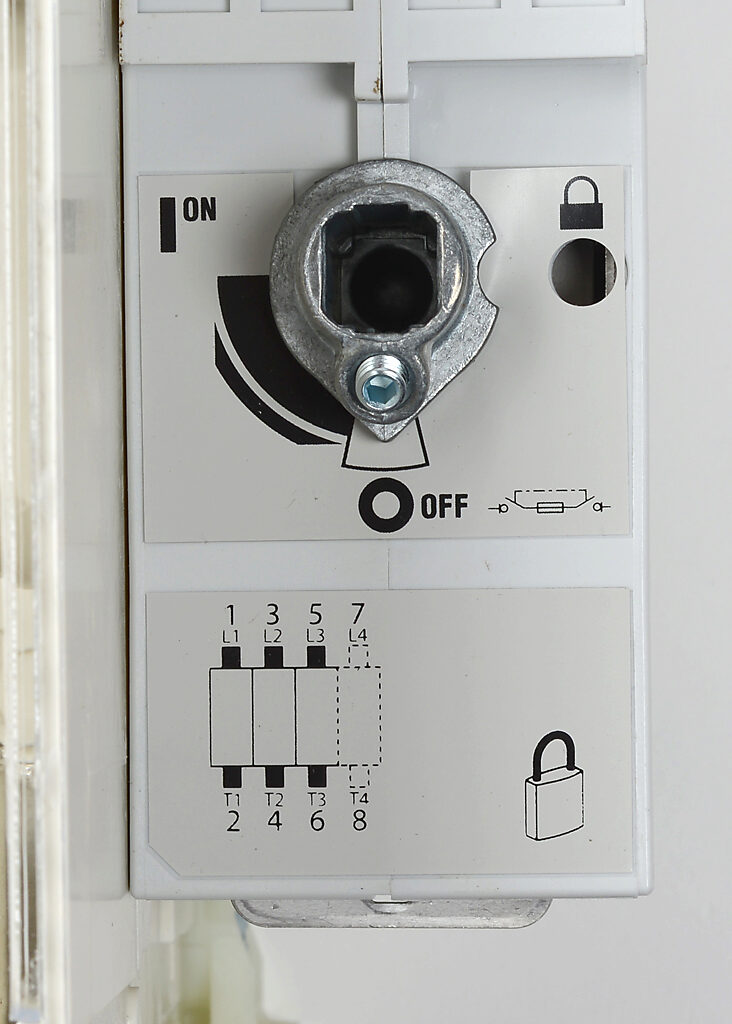

- Operation: Front or Side
- Fuse Class: Class J, CC, L
- UL Rating: UL 98
Specifications
- Part Number: 38513038
- Brand : Socomec
- Category : Switch
- Item Subcategory : Disconnect
- Compatible Frames : PLP
Product Data
- GTIN : 03596031937707
- Weight : 12.78 lb
