Product Info
- Manufacturer:Square D
- Sub-Category:Magnetic Coil
Description
3107440047

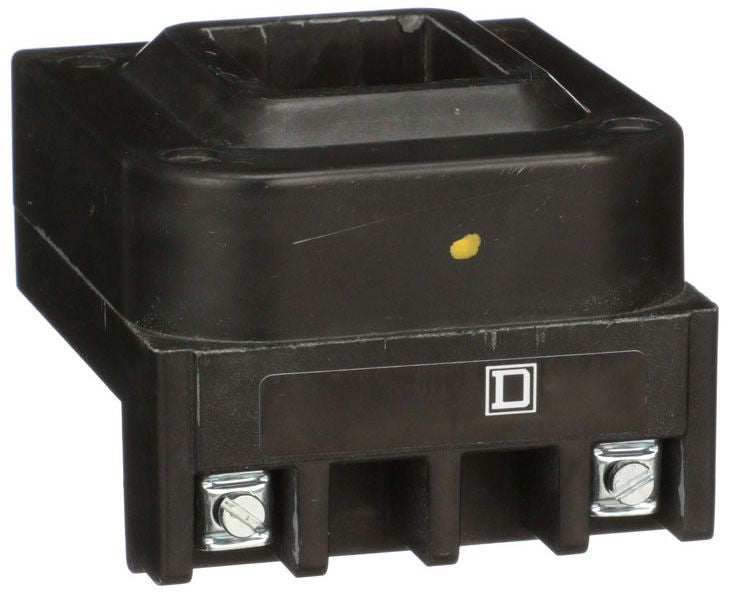

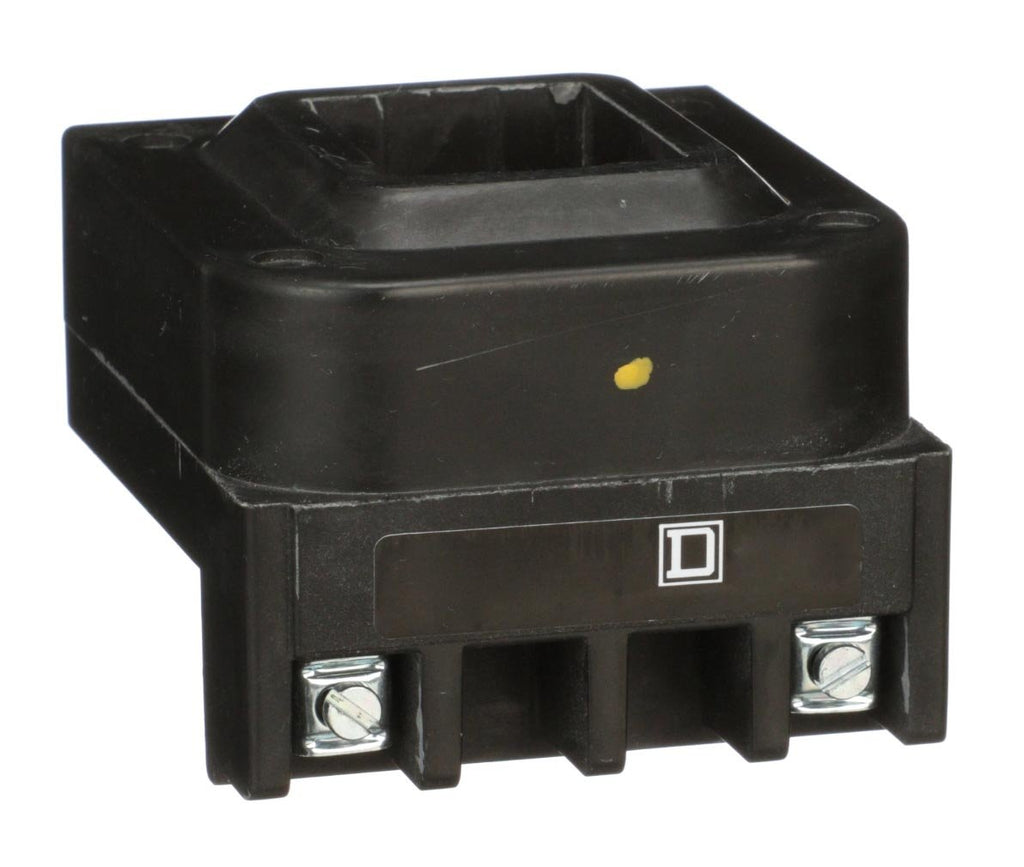

3107440047 is a 240V 3 pole magnetic coil designed for use with Square D NEMA Motor Starters Type S.This replacement coil operates at 220/240 VAC with a frequency of 50/60 Hz and is compatible with NEMA size 3 starters, including Class 8502SE contactors, Class 8536SE starters, and Class 8903SQ lighting contactors. It features a direct mounting type, screw clamp connections, and is fully encapsulated for protection. The coil has an inrush power of 700 VA and an average sealed consumption of 46 VA.
- Key Specifications
- Manufacturer: Square D
- Part Number: 3107440047
- Voltage: 220/240 VAC
- Frequency: 50/60 Hz
- Poles: 3
- Mounting Type: Direct
- Type: Magnetic Coil
- Compatible with: NEMA Motor Starter Type S, Class 8502SE, 8536SE, 8903SQ
- Inrush Power: 700 VA
- Average Sealed Consumption: 46 VA
- Coil Encapsulation: Fully encapsulated
- Connection Type: Screw clamp
Specifications
- Part Number: 3107440047
- Manufacturer : Square D
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Magnetic Coil
- Type : 310
- Nema Starter Size : 3
- Frequency : 50/60 Hz
Product Data
- UPC : 785901110880
- GTIN : 00785901110880
- Country of Origin : Mexico
- Dimensions : 65 mm x 73 mm
- Weight : 0.83
- Certification : UL, CSA
