3106340947 - Square D 240 VAC 50/60 Hz NEMA Size 2 Motor Starter Replacement Coil, 2 or 3 Pole

3106340947

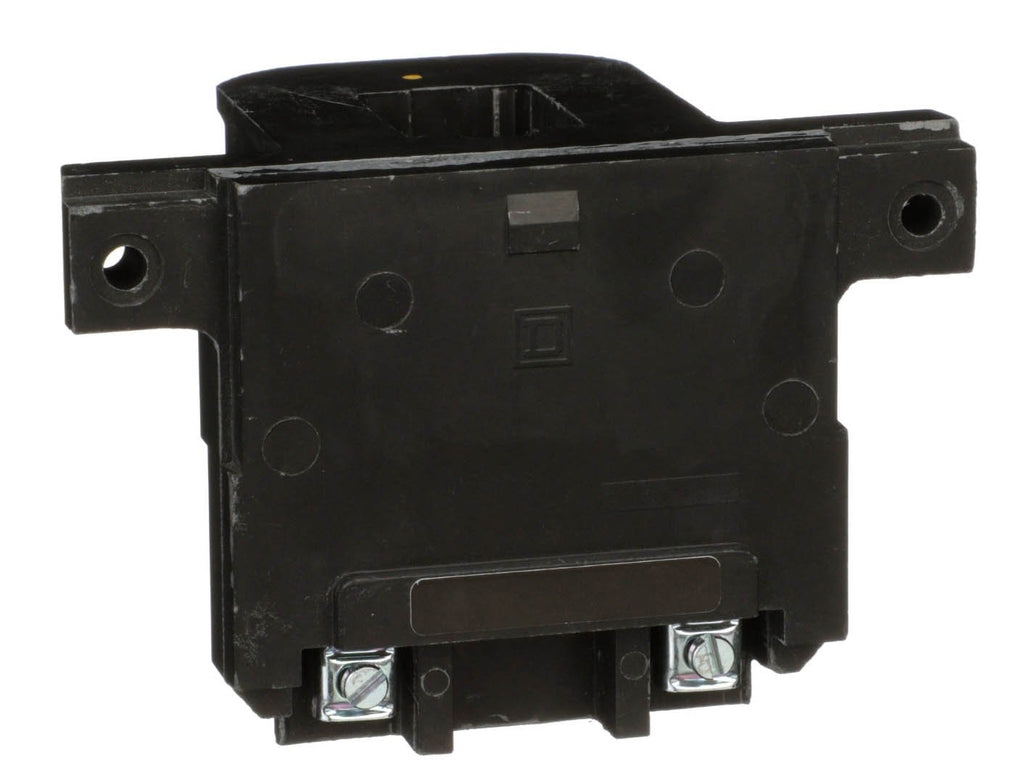

3106340947 is a Square D replacement coil designed for NEMA Size 2 motor starters and contactors, operating at 240 VAC and 50/60 Hz frequency.3106340947 coil supports 2 or 3 pole configurations and is compatible with Type S and SP starters including models 8502SD, 8536SD, and 8903SP lighting contactors. It features a power consumption of 36-37 VA, an inrush power of 311 VA, and is fully encapsulated for protection. The coil uses screw clamp connections and is rated for 40°C ambient temperature.

Key Specifications
• Voltage: 220/240 VAC
• Frequency: 50/60 Hz
• Poles: 2 or 3
• NEMA Size: 2
• Power Consumption: 36-37 VA (sealed), 311 VA (inrush)
• Mounting Type: Direct
• Connection Type: Screw Clamp
• Compatible Starters: 8502SD, 8536SD, 8903SP
• Operating Temperature: 40°C Ambient
• Fully encapsulated coil for protection
• Dimensions (H x W x D): approx. 66.2 mm x 101.1 mm x 61.7 mm

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3106340947
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Magnetic Coil
• Type : S
• Voltage : 240
• Temp Rating : -13–158 °F (-25–70 °C)
• Nema Starter Size : 2
• Frequency : 50/60 Hz

Product Data

• UPC : 785901504979
• GTIN : 00785901504979
• Country of Origin : Mexico
• Dimensions : Width 3.98 in (101.1 mm) x Height 2.61 in (66.2 mm) x Depth 2.43 in (61.7 mm)
• Weight : 1
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL, CSA
