Product Info
- Manufacturer:Square D
- Sub-Category:Parts & Accessories
Description
3020-CM2250

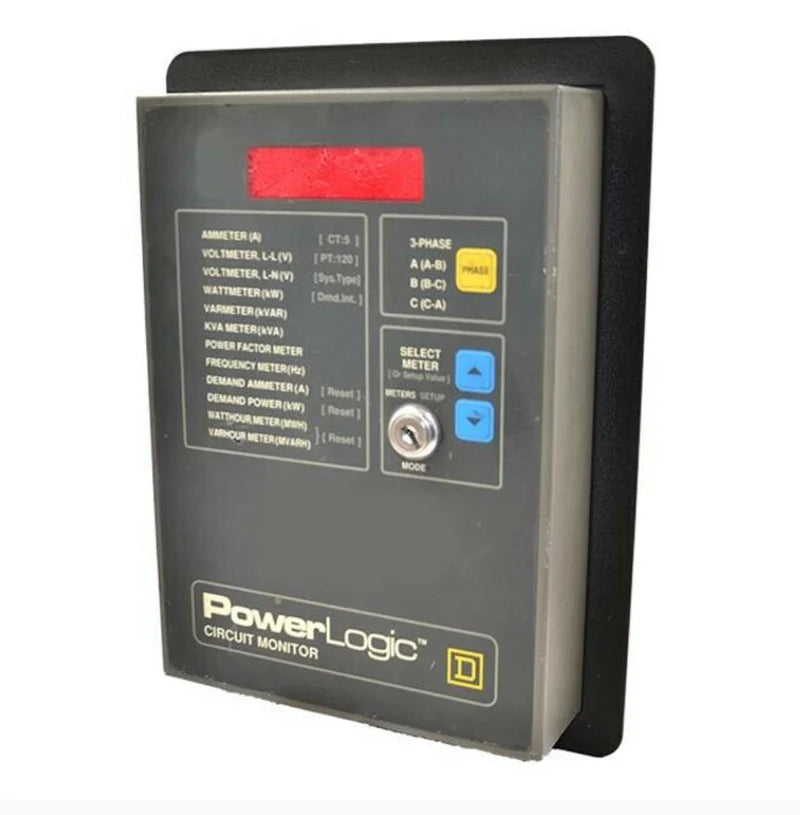

3020-CM2250 is a Square D PowerLogic Series 2000 circuit monitor designed for comprehensive electrical system metering and power quality analysis with certified revenue-grade accuracy. This digital panel-mount device delivers true RMS metering through the 31st harmonic, enabling precise measurement of nonlinear loads with 0.2% current and voltage accuracy. The circuit monitor features over 50 displayed meter values, real-time harmonic analysis, and extensive data logging capabilities for industrial and commercial power distribution applications. Key Specifications
- True RMS metering with 31st harmonic sampling
- Certified ANSI C12.16 revenue accuracy
- 0.2% accuracy for current and voltage measurement
- Over 50 displayed meter values
- Power quality readings: THD, K-factor, crest factor
- Current and voltage sag/swell detection and recording
- On-board data logging with 612K memory
- Disturbance monitoring capability
- Control power input: 100–264 Vac, 47–440 Hz
- Operating temperature range: -25 to +70°C
- UL Listed, CSA certified, and CE marked
- RS-485 communications standard with RS-232 optical port
Specifications
- Part Number: 3020-CM2250
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Section : Circuit Monitors
- Family : Powerlogic Metering
- Type : CM
Product Data
- Weight : 25
