Product Info
- Manufacturer:Altech Corp
- Sub-Category:Molded Case
Description
2CU15R

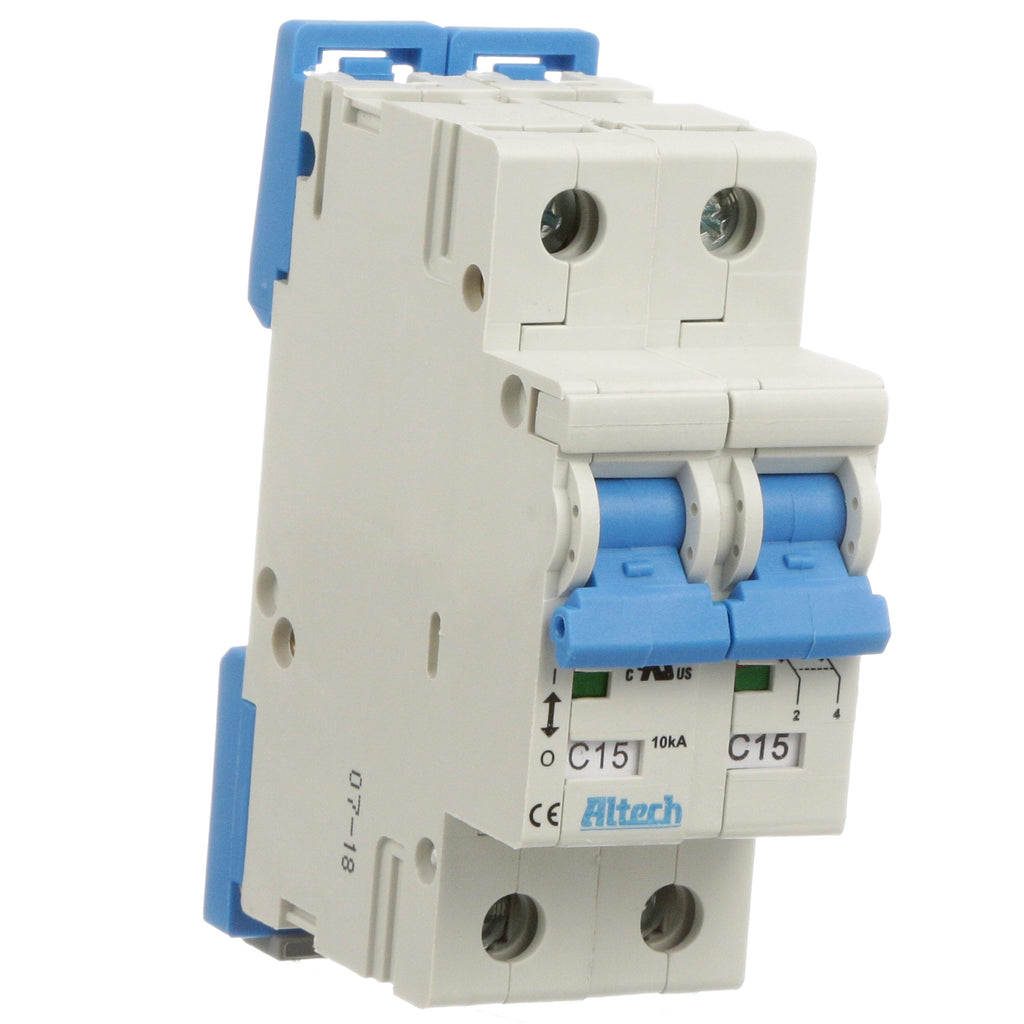

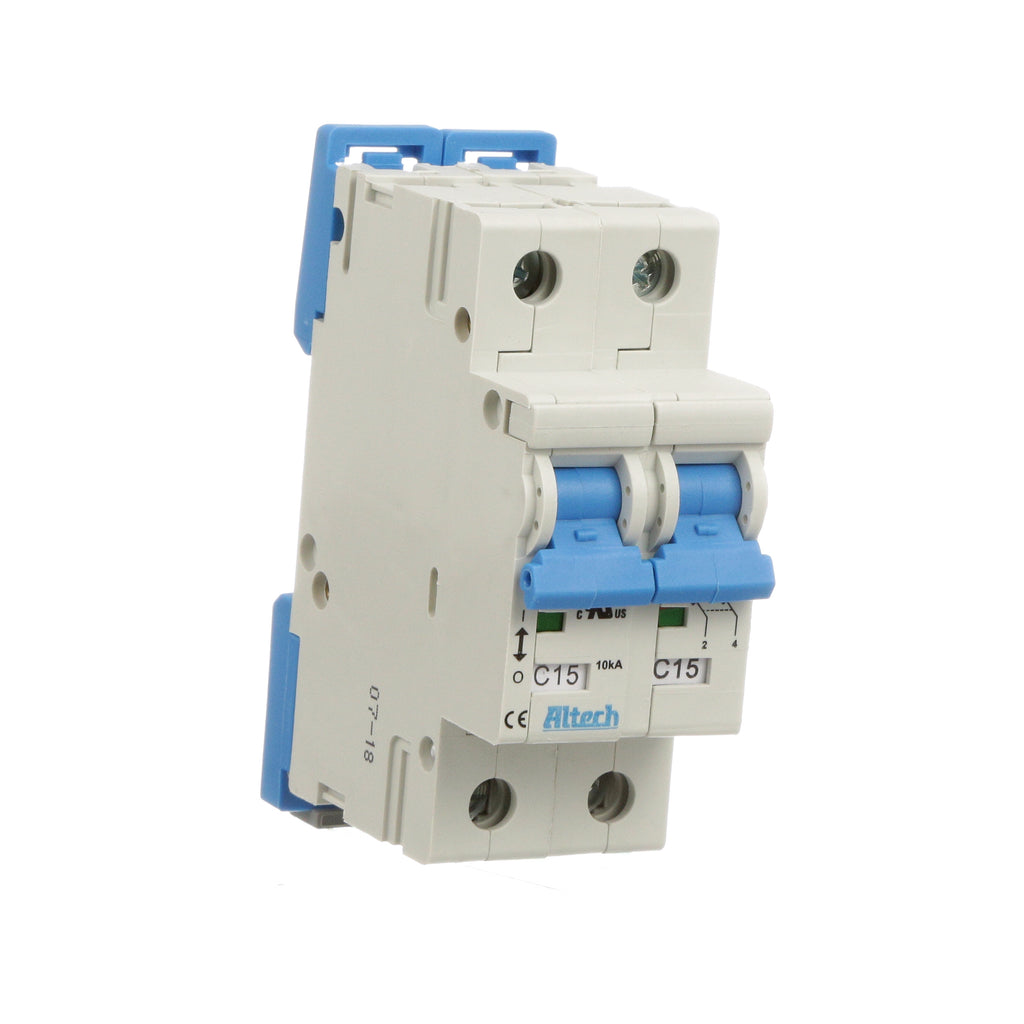

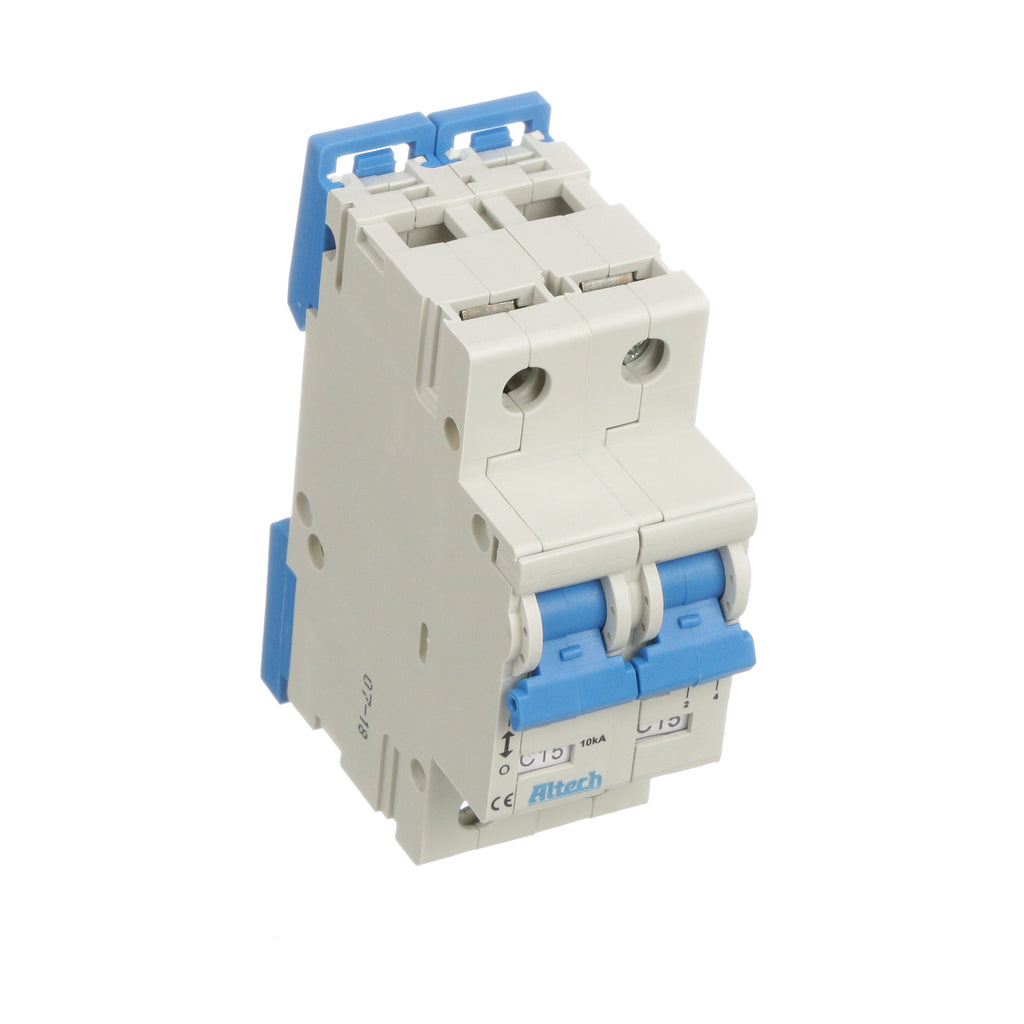

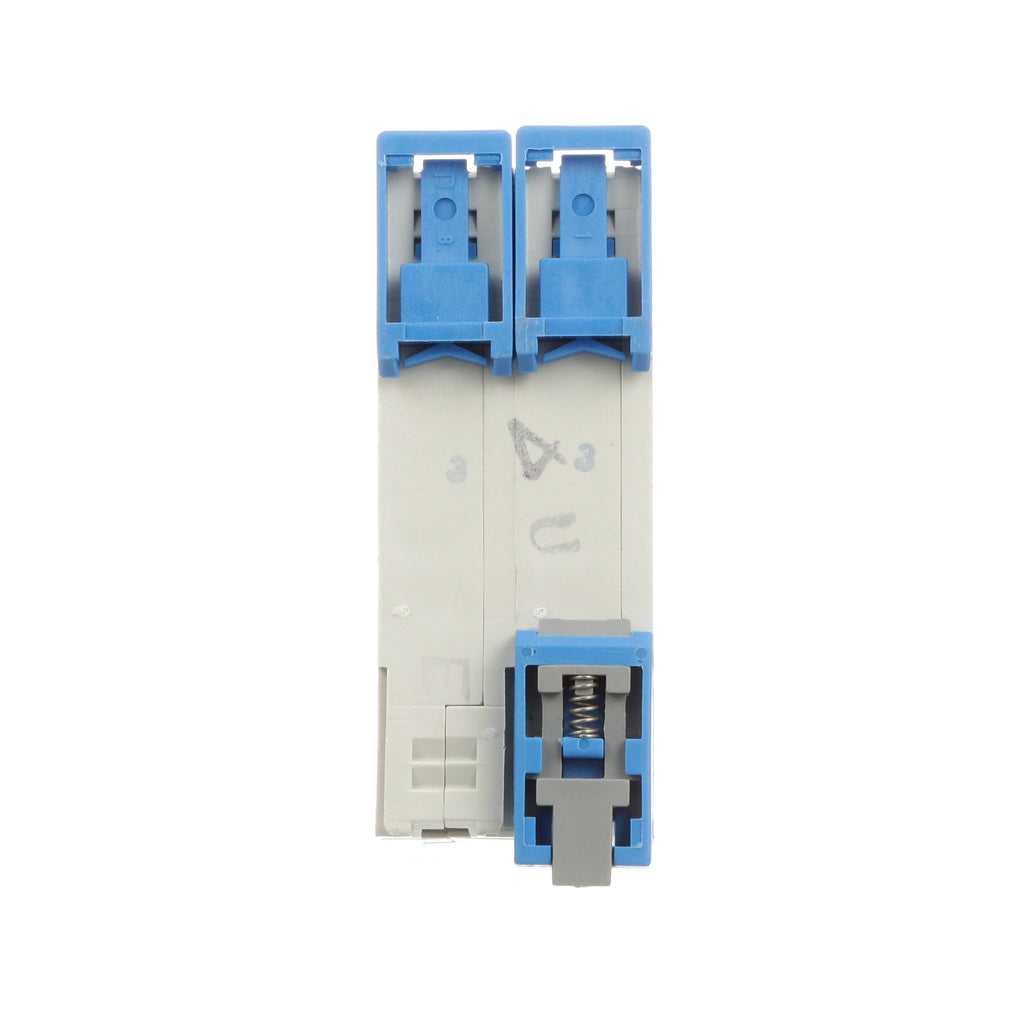

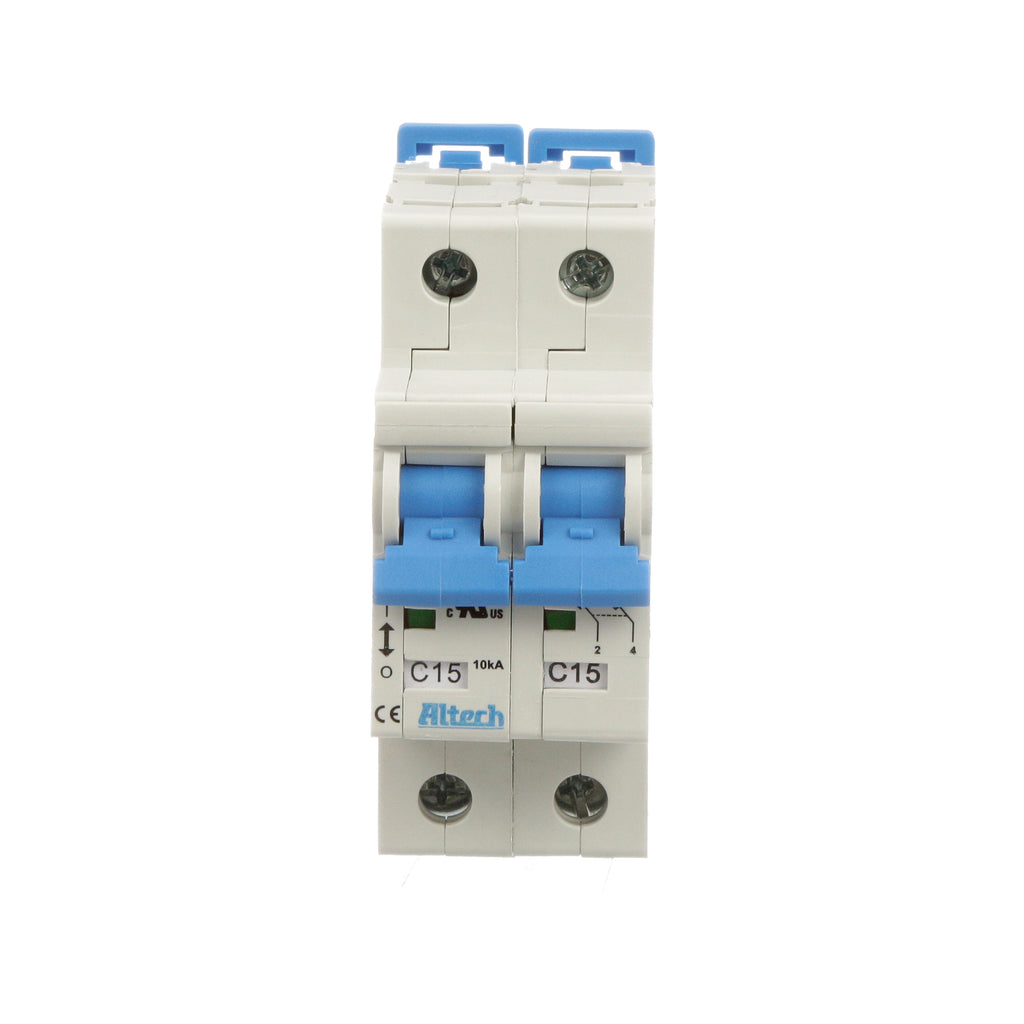

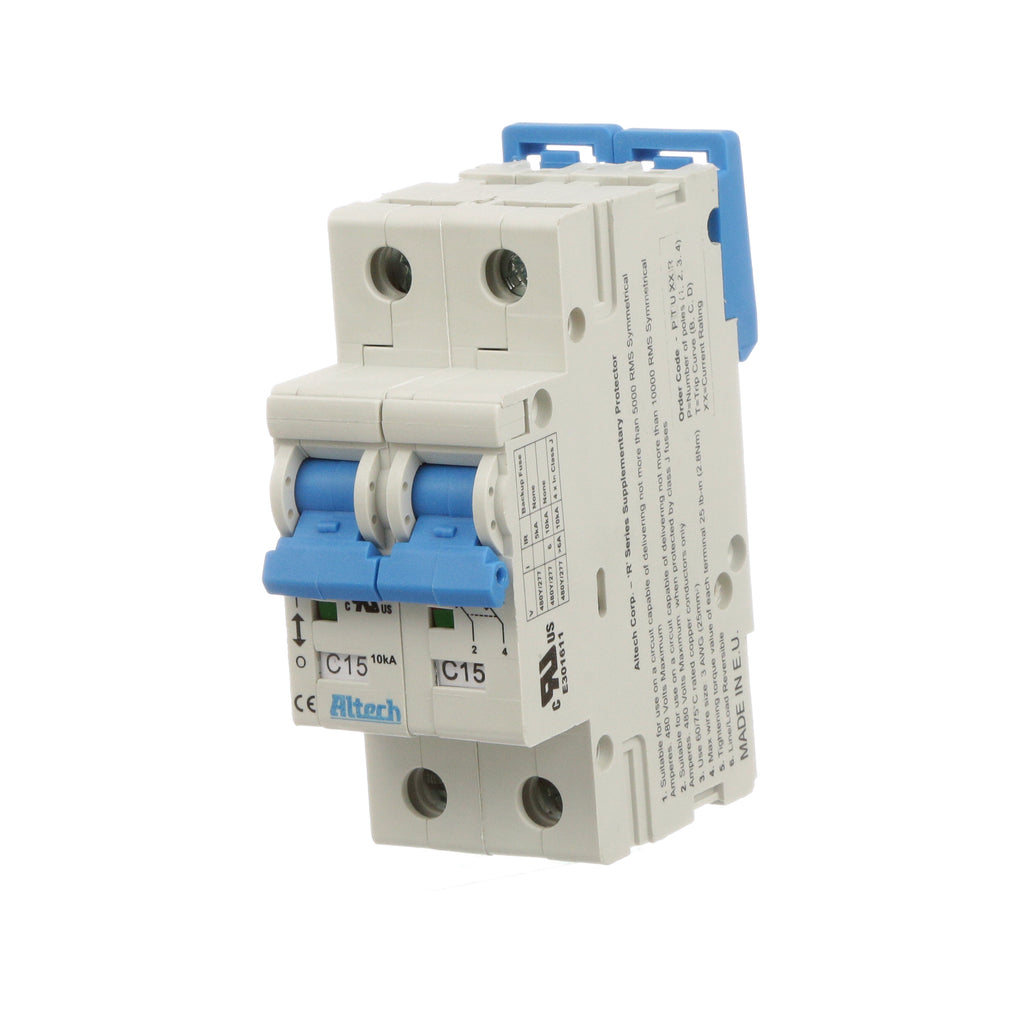

2CU15R is a 15 amp, 2 pole thermal magnetic mini circuit breaker from Altech Corp designed for DIN rail mounting.This R Series circuit breaker features a thermal magnetic trip unit with a C trip curve, suitable for protecting business equipment, lighting, appliances, and control circuits. It operates at 480Y/277VAC with a short circuit current rating (SCCR) of 10kA. The breaker is UL 1077 listed with UL file number E301611 and uses compression type terminals.
- Current Rating: 15 Amps
- Poles: 2
- Voltage Rating: 480Y/277VAC
- Mounting Type: DIN Rail
- Trip Unit: Thermal Magnetic, C Curve
- Short Circuit Current Rating (SCCR): 10kA
- UL Standard: UL 1077
- UL File Number: E301611
- Terminal Type: Compression
- Series/Frame: R Series
Specifications
- Part Number: 2CU15R
- Manufacturer : Altech Corp
- Brand : Altech Corp
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@480Y/277V
- Connection : Feed-Thru
- Protection : Thermal Magnetic
Product Data
- Weight : 3.54
