Product Info
- Manufacturer:Altech Corp
- Sub-Category:Molded Case
Description
2CU10R

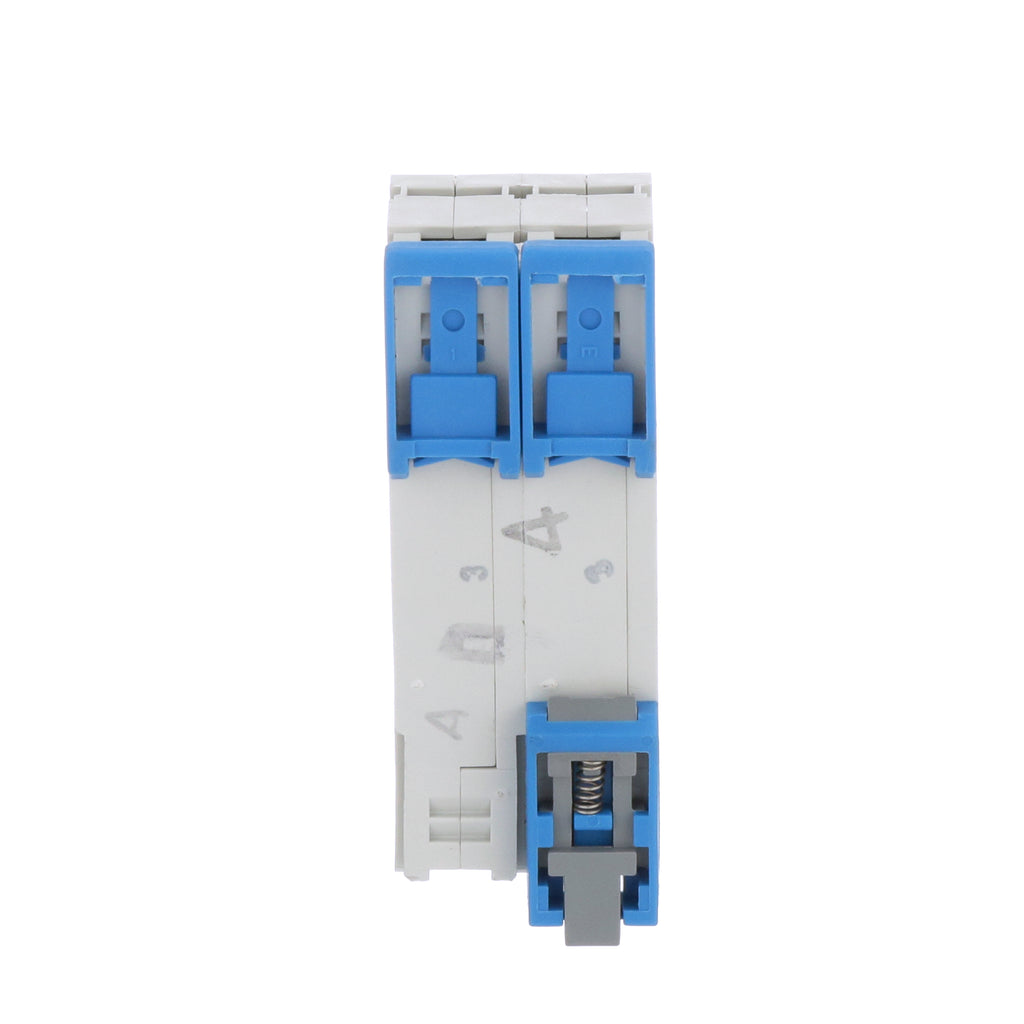

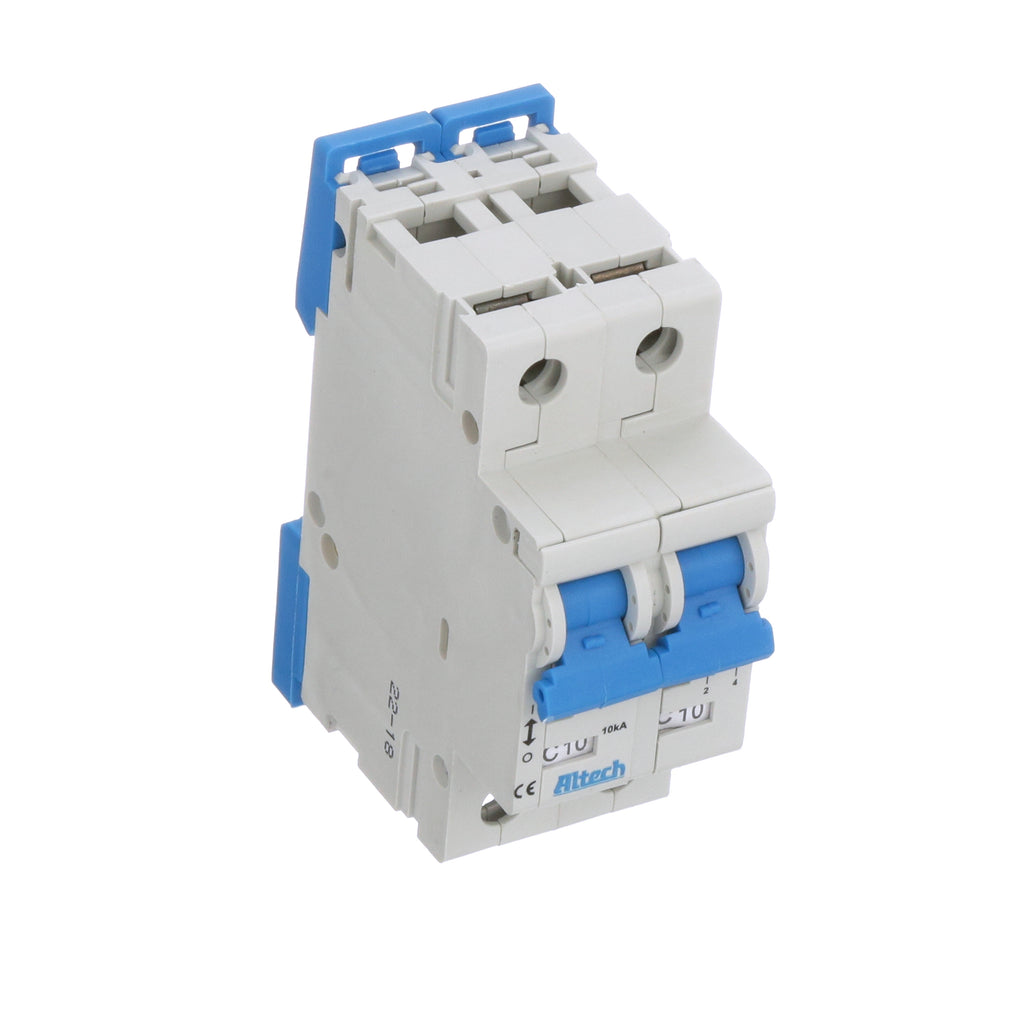

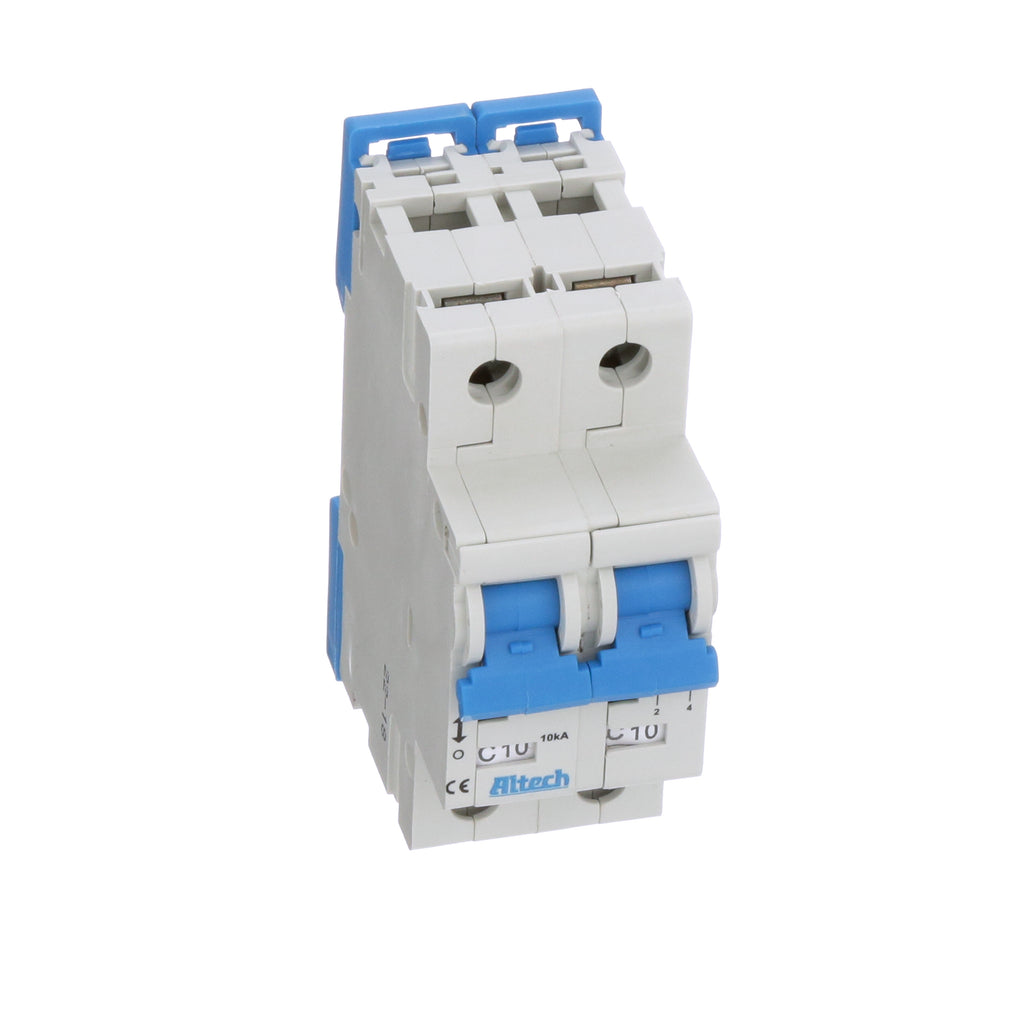

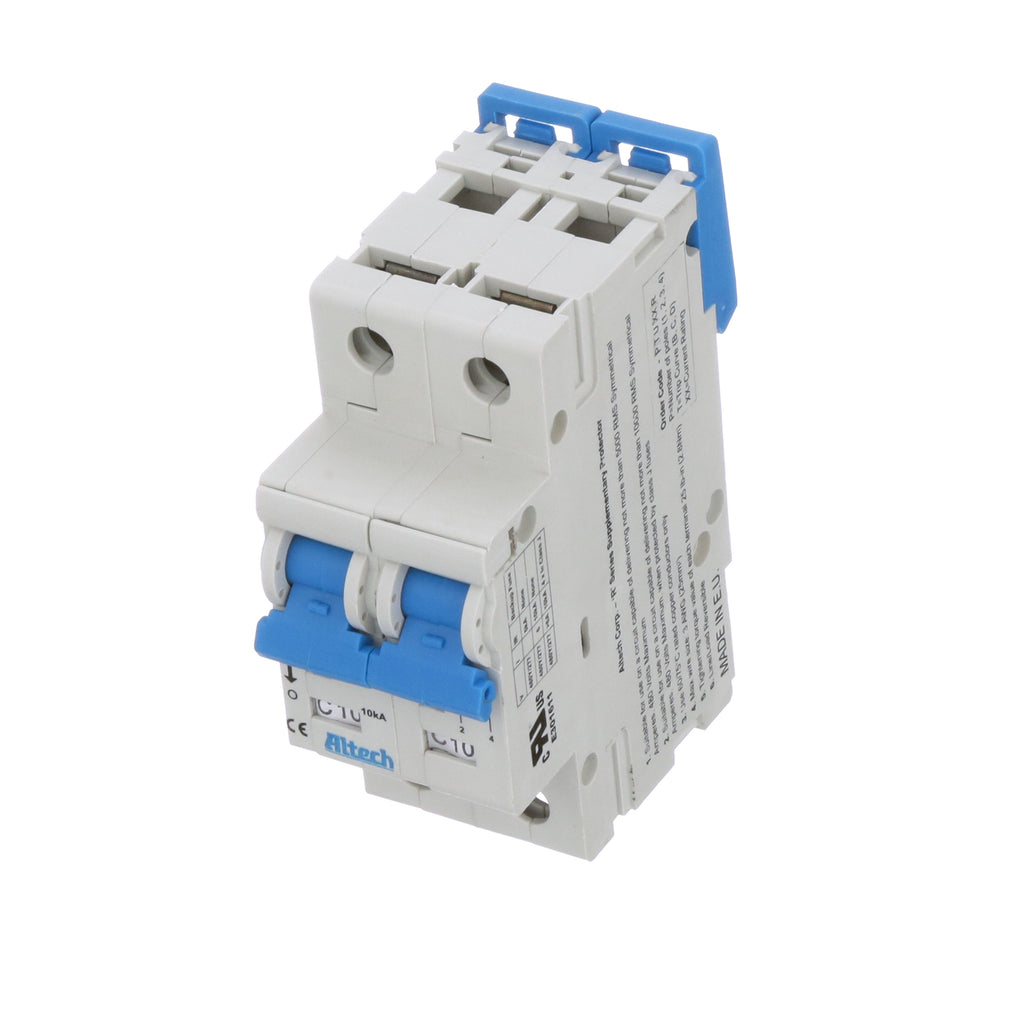

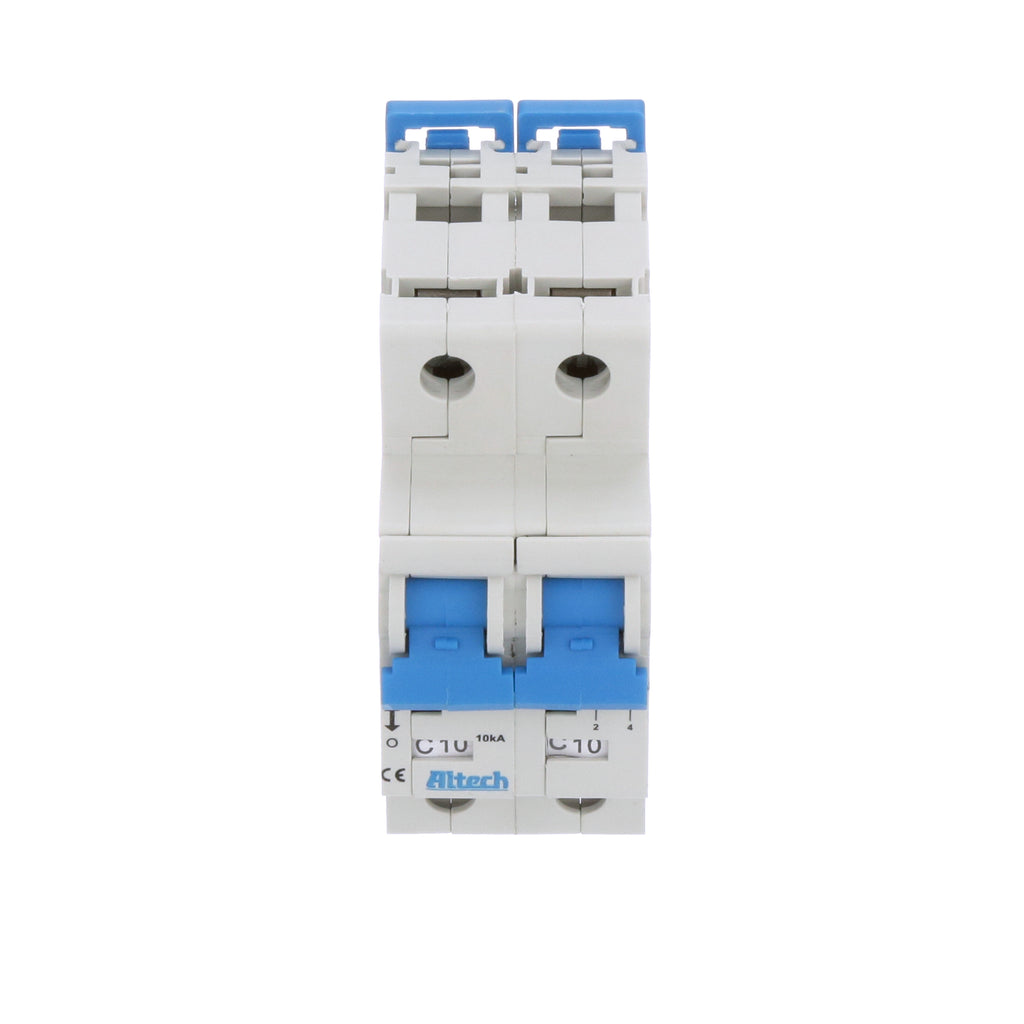

2CU10R is a 10 amp, 2 pole supplementary protector circuit breaker from Altech Corp designed for equipment branch circuit protection.
This device is UL1077 recognized and provides thermal magnetic trip protection with a C trip curve. It is rated for 277V AC operation and features a 10kA short circuit current rating (SCCR). The breaker is DIN rail mounted with a 17.5mm width per pole and includes a positive trip indicator for easy status monitoring. It is suitable for protecting sensitive electronics, power supplies, control transformers, UPS, solenoids, and similar equipment from overload conditions.
- Current Rating: 10 Amps
- Number of Poles: 2 Pole
- Voltage Rating: 277V AC
- Trip Curve: C
- Short Circuit Current Rating (SCCR): 10 kA
- UL Standard: UL1077 Recognized
- Mounting Type: DIN Rail Mounted
- Thermal Magnetic Trip Unit
- Positive Trip Indicator (Green/Red)
- Width: 17.5mm per pole
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 2CU10R
- Manufacturer : Altech Corp
- Brand : Altech Corp
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 480
- Amperage : 10
- Phase : 1
- Poles : 2
- Protection : Thermal Magnetic
Product Data
- Weight : 0.36
