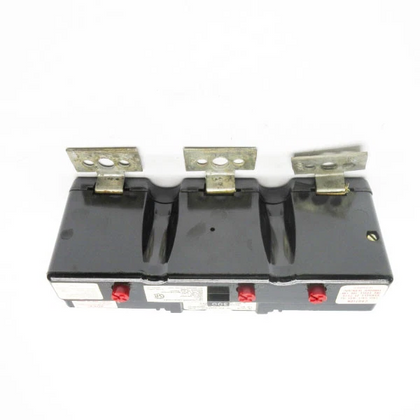

2603D46G27 - Westinghouse MARK 75 Trip Unit 3P 300A 600V

2603D46G27

2603D46G27 is a Westinghouse MARK 75 trip unit designed for use in molded-case circuit breakers, providing reliable protection for industrial and commercial power distribution systems. This trip unit is engineered for three-pole applications and supports a maximum amperage of 300A at 600V, making it suitable for a wide range of electrical environments. The unit is compatible with Westinghouse MARK 75 circuit breaker frames and is designed for easy integration and dependable performance. The 2603D46G27 trip unit features a robust construction and is built to meet the demanding requirements of modern electrical installations. It is designed for use in systems requiring precise overcurrent protection and is suitable for both new installations and replacements in existing equipment.

• Part Number: 2603D46G27
• Manufacturer: Westinghouse
• Series/Frame: MARK 75
• Mounting Type: Compatible with MARK 75 circuit breaker frames
• Number of Poles: 3
• Maximum Amperage: 300A
• Voltage Rating: 600V
• Trip Unit Type: HLA
• Application: Molded-case circuit breakers
• Interrupt Rating: 35,000AIC at 240V, 30,000AIC at 480V, 20,000AIC at 600V
• Standards: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2603D46G27
• Manufacturer : Westinghouse
• Brand : Westinghouse
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : MARK 75
• Type : HLA
• Voltage : 600
• Poles : 3
• Functions : LI - Long-Time and Instantaneous
• Amperage Maximum : 300
• Amperage Minimum : 300
• Protection : Thermal Magnetic
• Compatible Frames : LA,HLA

Product Data

• Weight : 3
