Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510MCW12

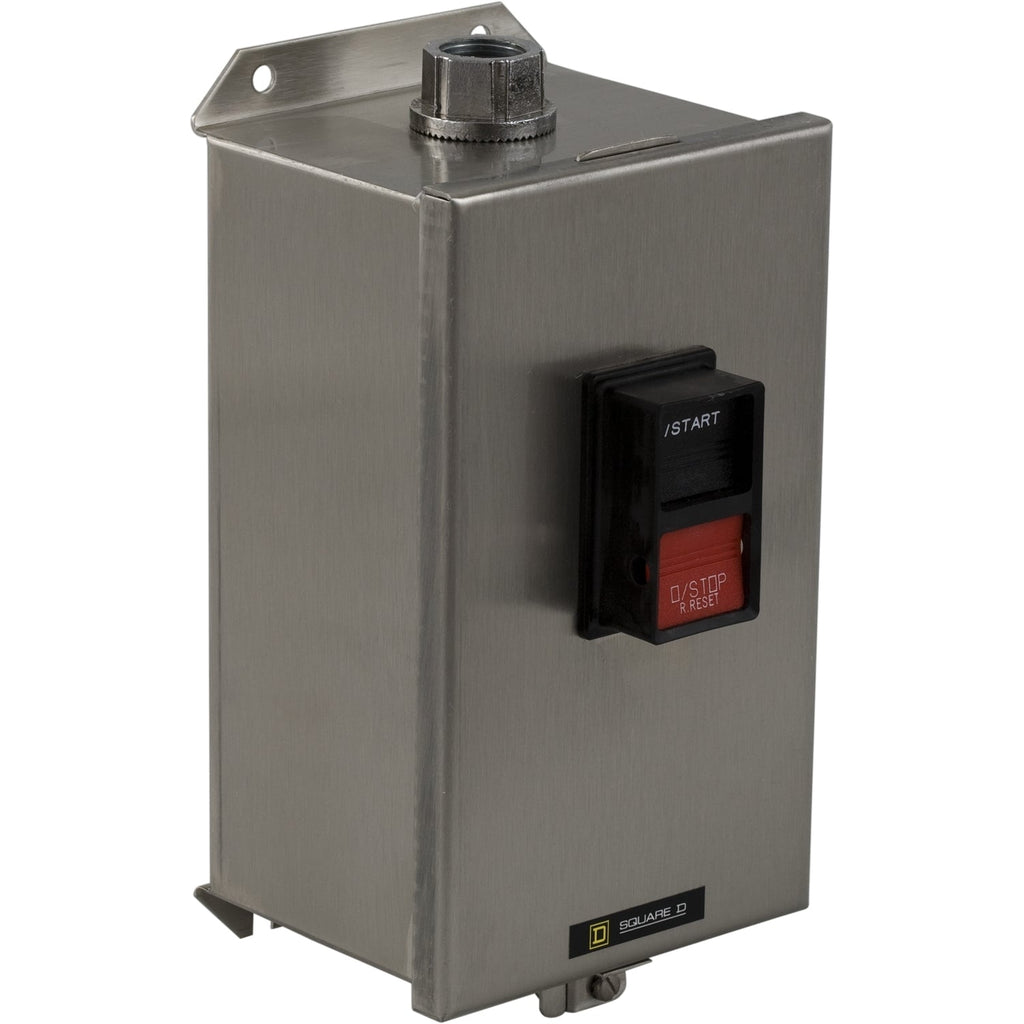

2510MCW12 is a Square D 2 pole manual motor starter rated for 36 amps and 600 volts with a NEMA 4/4X stainless steel enclosure.The 2510MCW12 is designed for 1-phase motor control applications, providing reliable overload protection with a pushbutton manual start. It supports up to 3 HP at 115 VAC and 5 HP at 230 VAC, suitable for indoor and outdoor use with a brushed stainless steel enclosure. This starter is part of the Class 2510 series and features box lug connections and UL and CSA certifications.
- Key Specifications
- Amperage: 36 Amps
- Voltage: 600 VAC
- Poles: 2
- Phase: 1
- Frame Type: 2510, Size M-1P
- Enclosure: NEMA 4/4X Brushed Stainless Steel
- Horsepower: 3 HP at 115 VAC, 5 HP at 230 VAC
- Connection Type: Box Lugs
- Certifications: UL, CSA
- Manual Pushbutton Start
- Non-Reversing
- Discontinued by Manufacturer
Specifications
- Part Number: 2510MCW12
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : M
- Voltage : 600
- Amperage : 36
- Phase : 1
- Poles : 2
- Nema Rating : M1
- Enclosure : 4/4X
Product Data
- UPC : 785901376460
- GTIN : 00785901376460
- Dimensions : 10.92 in (277.37 mm) x 5.78 in (146.81 mm) x 5.76 in (146.30 mm) (Height x Width x Depth)
- Weight : 8.99
- Certification : UL, CSA
