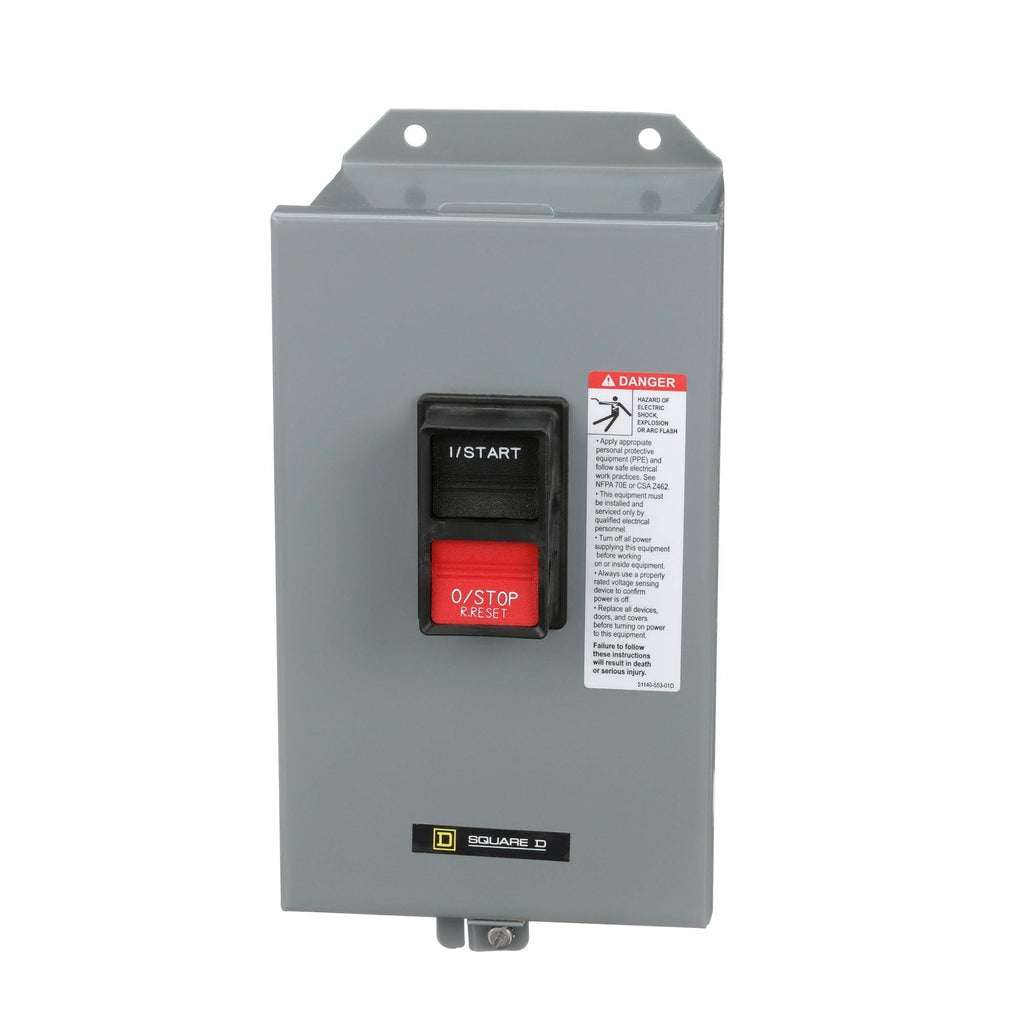

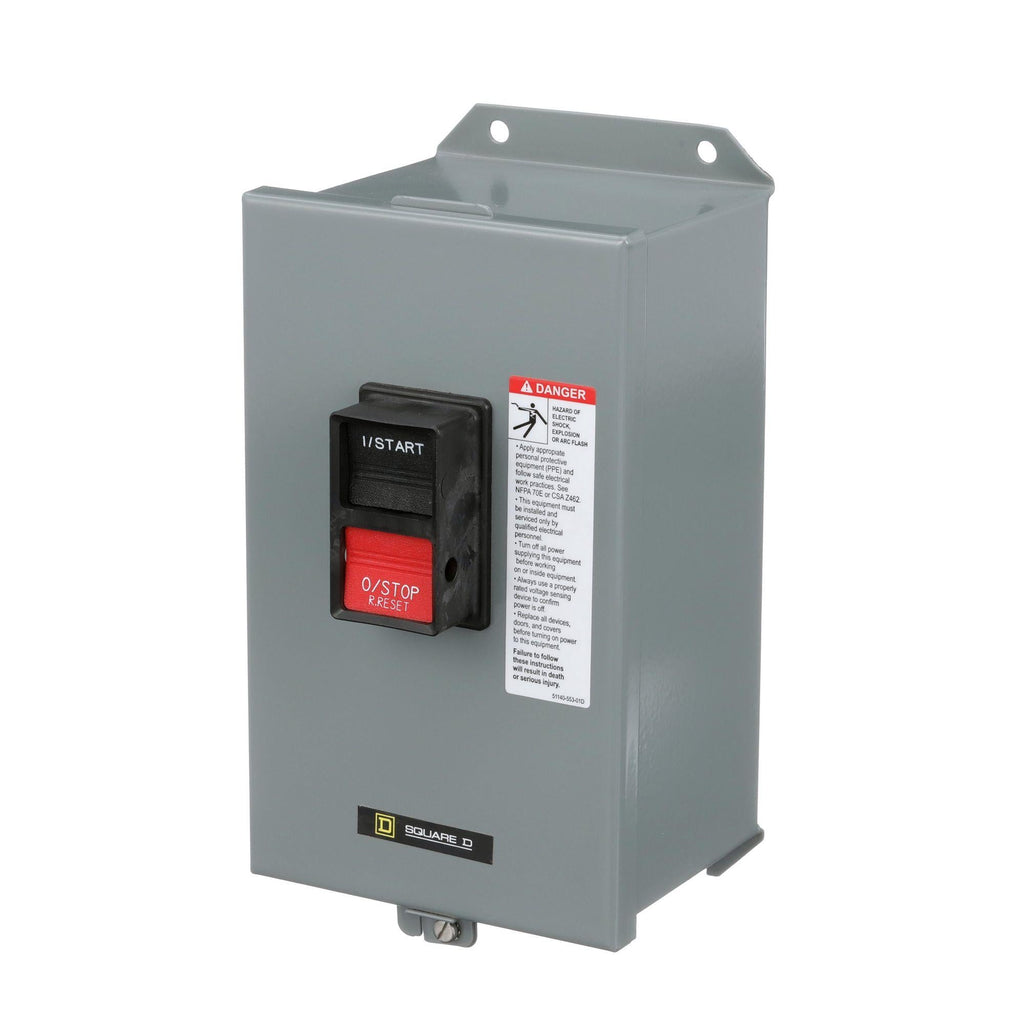

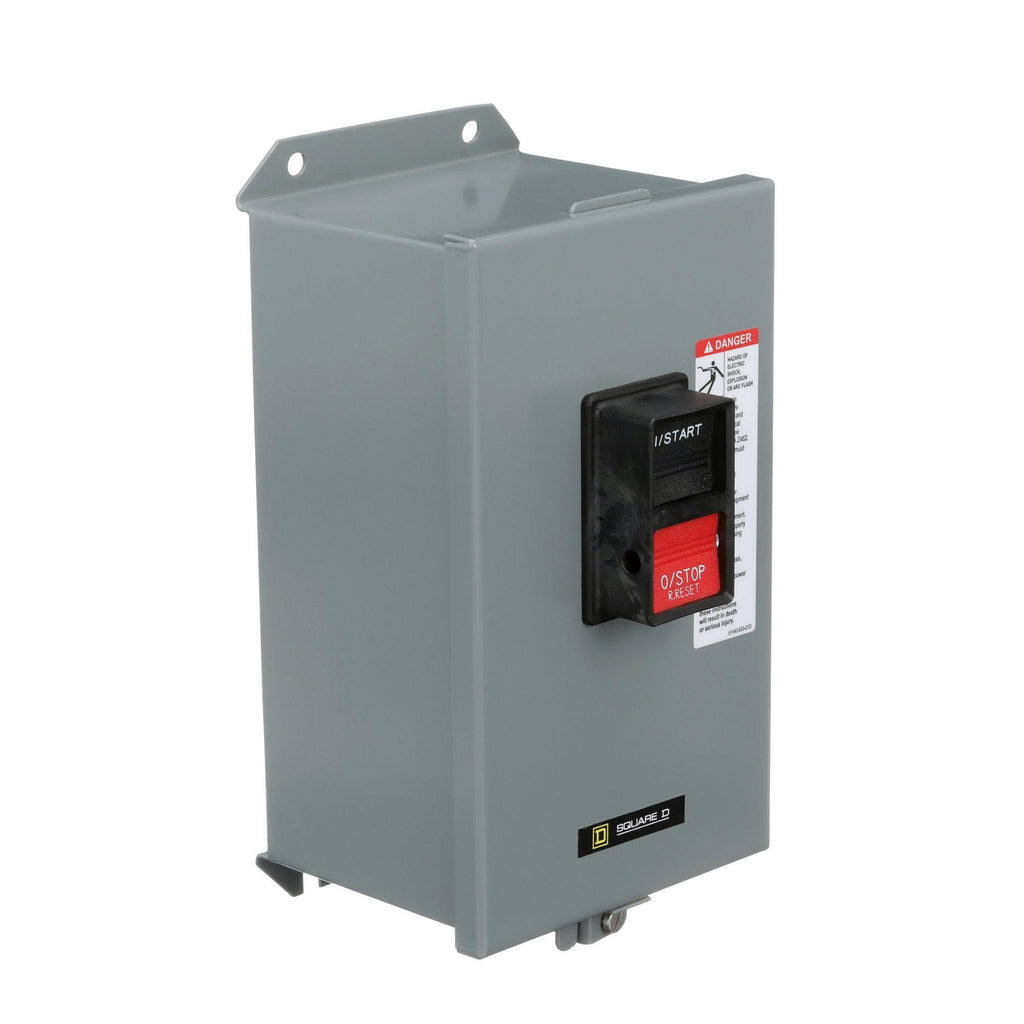

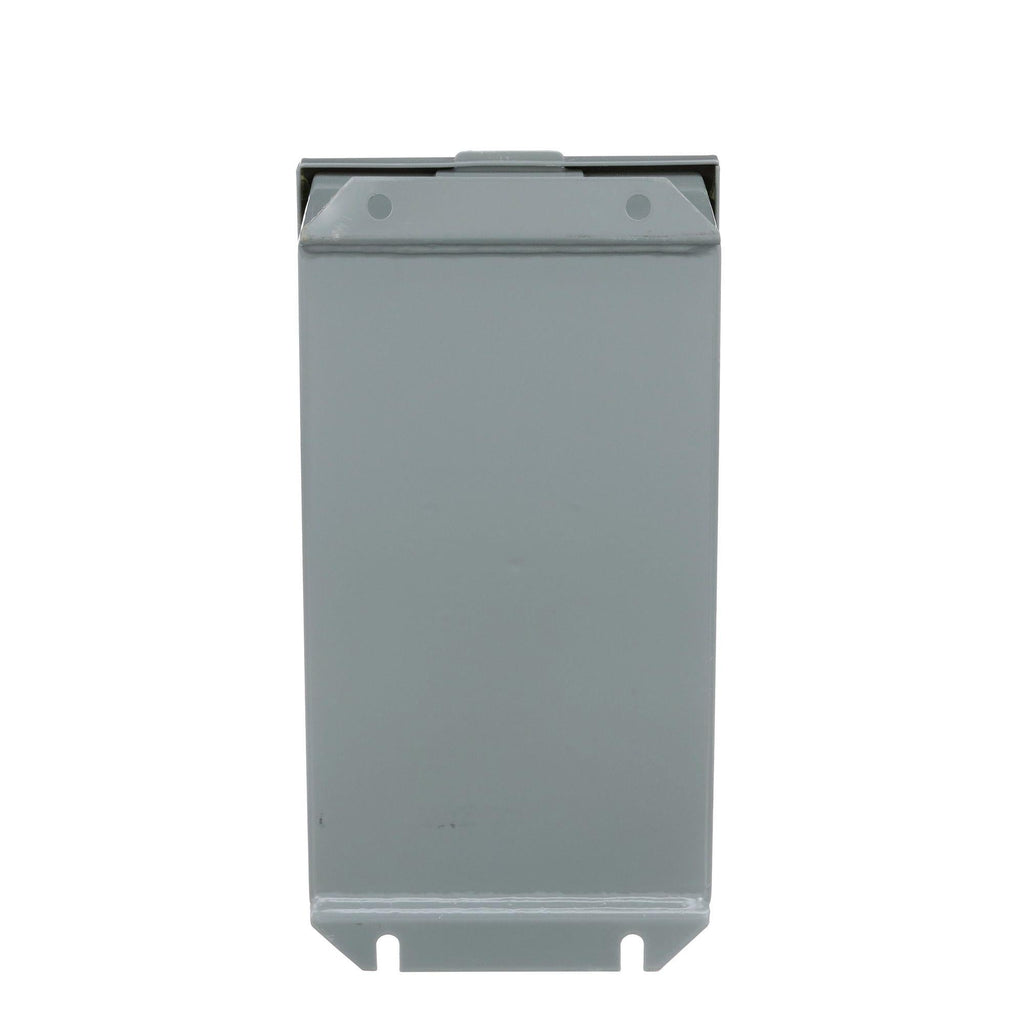

2510MBA1 - Square D 18 Amp 600V 2-Pole Manual Motor Starter NEMA 12 Frame M0

2510MBA1

2510MBA1 is a Square D manual motor starter designed for reliable motor control with 18 amps and 600 volts AC rating.This 2-pole starter from the 2510 series features a NEMA 12 enclosure and Size M0 frame, suitable for single-phase motors up to 10 HP and DC motors up to 2 HP. It provides manual on-off control with push-button operation and surface mounting type, ensuring easy installation and operation in industrial environments.

• Amperage: 18 Amps
• Voltage: 600 VAC
• Poles: 2
• Mounting Type: Surface Mount
• Frame/Series: 2510, Size M0
• Enclosure: NEMA 12
• Motor Compatibility: Single or Polyphase AC motors up to 10 HP, DC motors up to 2 HP
• Operation: Manual On-Off Push Button
• Interrupt Rating: Per 2510 Series Standards
• Certifications: Meets applicable industry standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2510MBA1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : M
• Voltage : 600
• Amperage : 9
• Phase : 1
• Poles : 2
• Temp Rating : -13–158 °F (-25–70 °C)
• Nema Rating : 00

Product Data

• UPC : 785901829713
• GTIN : 00785901829713
• Country of Origin : Mexico
• Dimensions : 10.92 in (277.37 mm) x 5.78 in (146.81 mm) x 5.76 in (146.30 mm) (Height x Width x Depth)
• Weight : 6.971
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL, CSA, CE
