Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510MCR3

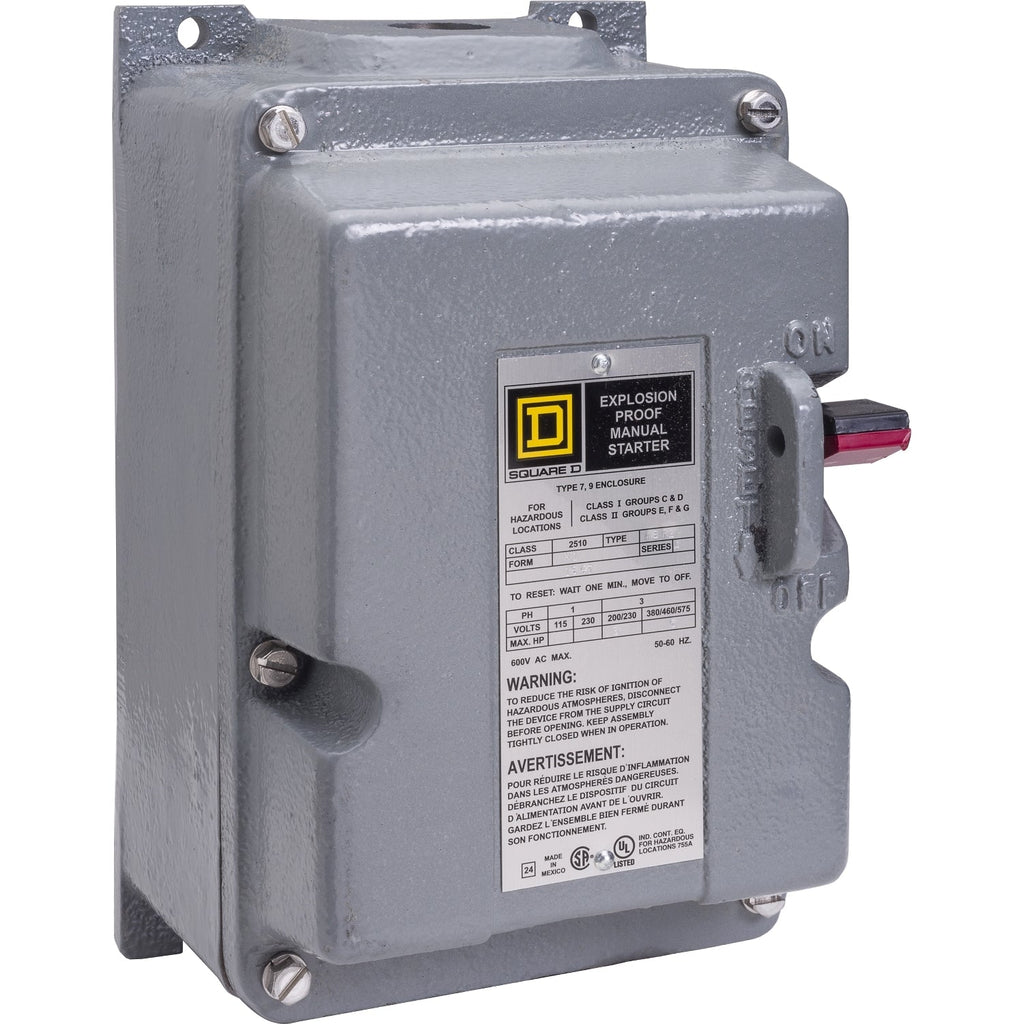

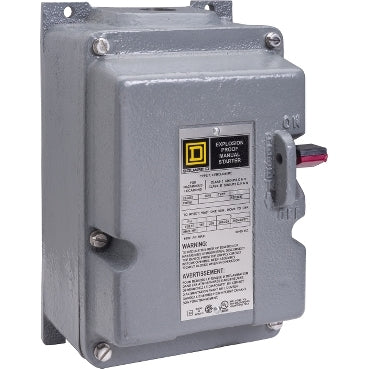

2510MCR3 is a manual motor starter from Square D designed for integral horsepower applications requiring non-reversing control without low voltage protection. This NEMA M1 rated starter features a push-button control unit and thermal protection via melting alloy thermal units, making it suitable for cost-effective motor control in industrial environments. The unit is available in multiple NEMA sizes (M-0, M-1, and M-1P) and complies with EU RoHS directives.
- Manufacturer: Square D
- Part Number: 2510MCR3
- Control Type: Push-button
- Action: Non-reversing
- Amperage Rating: 27 A
- Voltage Rating: 600 VAC
- Poles: 3-pole
- NEMA Frame Size: M-1
- NEMA Enclosure Rating: NEMA 7 and 9
- Horsepower: 10 hp at 380-575 VAC, 3 phase
- Thermal Protection: Melting alloy thermal units
- Local Signalling: No indicator
Additional Information
Non-Reversing
Specifications
- Part Number: 2510MCR3
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Voltage : 600
- Amperage : 36
- Phase : 3
- Poles : 3
- Aux Contacts : Without
- Nema Rating : M1
- Nema Starter Size : M-1
Product Data
- UPC : 785901800620
- GTIN : 00785901800620
- Country of Origin : Mexico

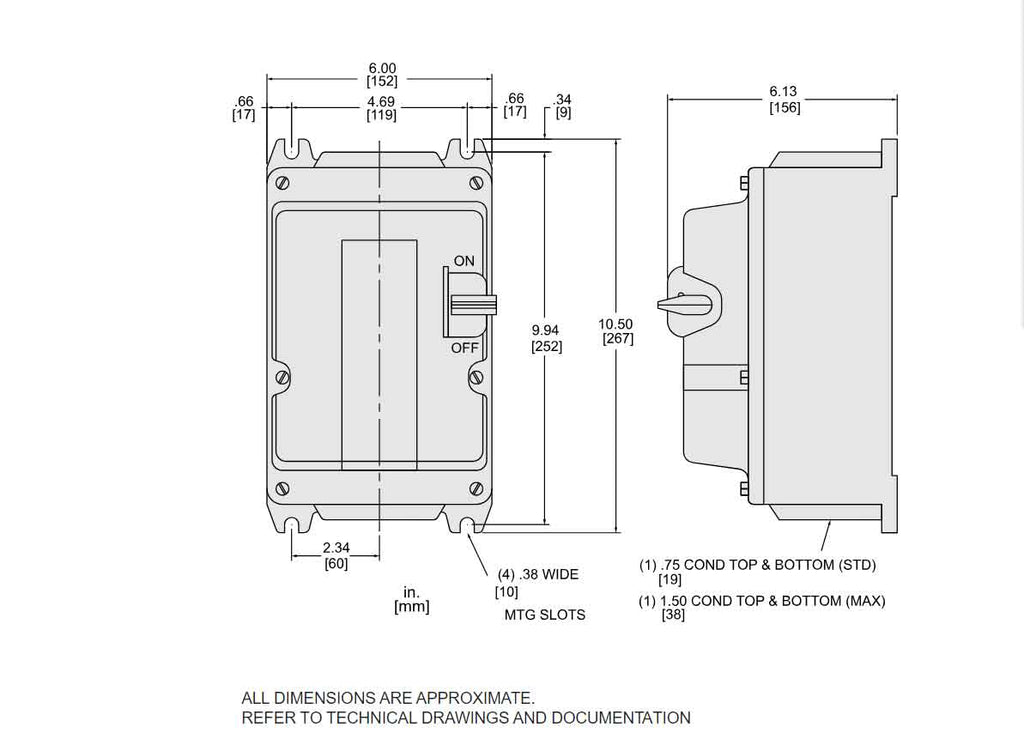

- Dimensions : 10.5 in (266.7 mm) x 6 in (152.4 mm) x 6.13 in (155.70 mm) (Height x Width x Depth)
- Weight : 30.999
