2510MCG2 Square D Class 2510 Motor Starter 2 pole 1 phase 600V 9A

2510MCG2

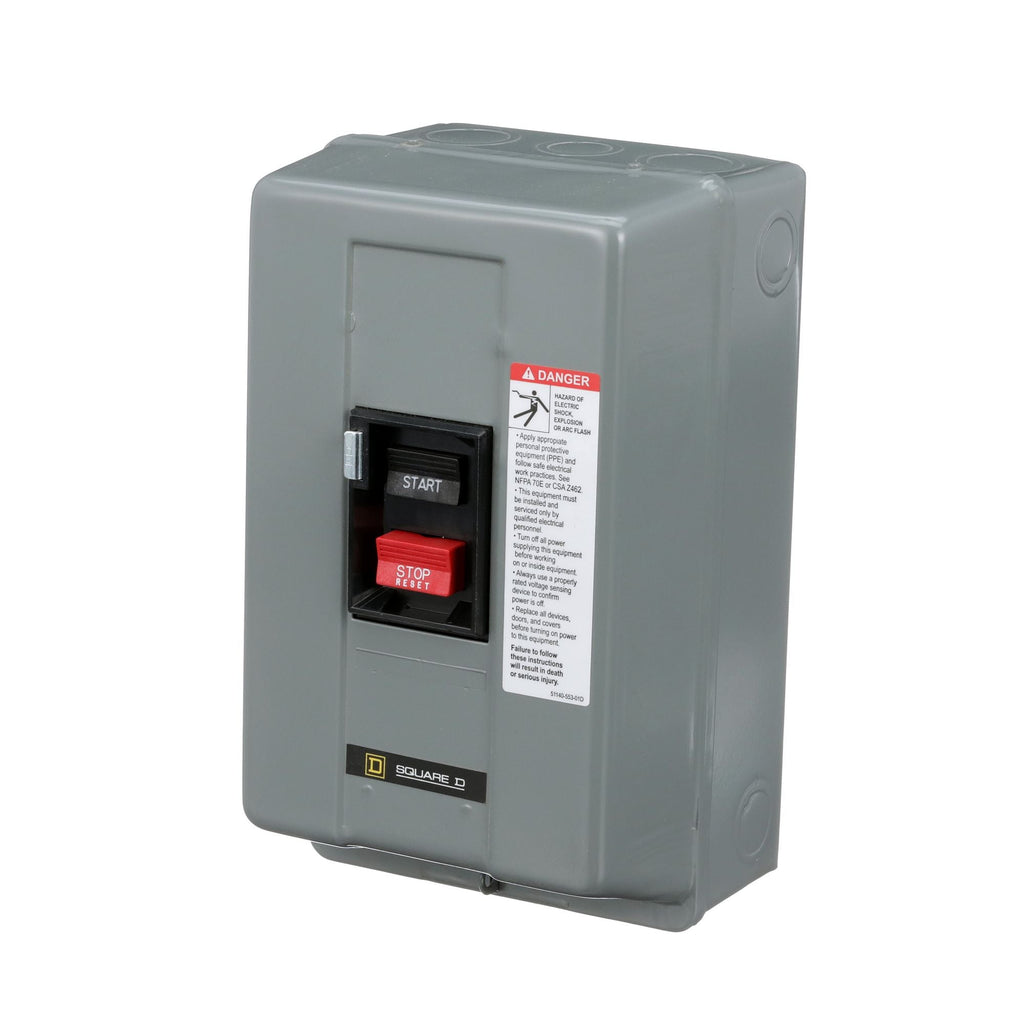

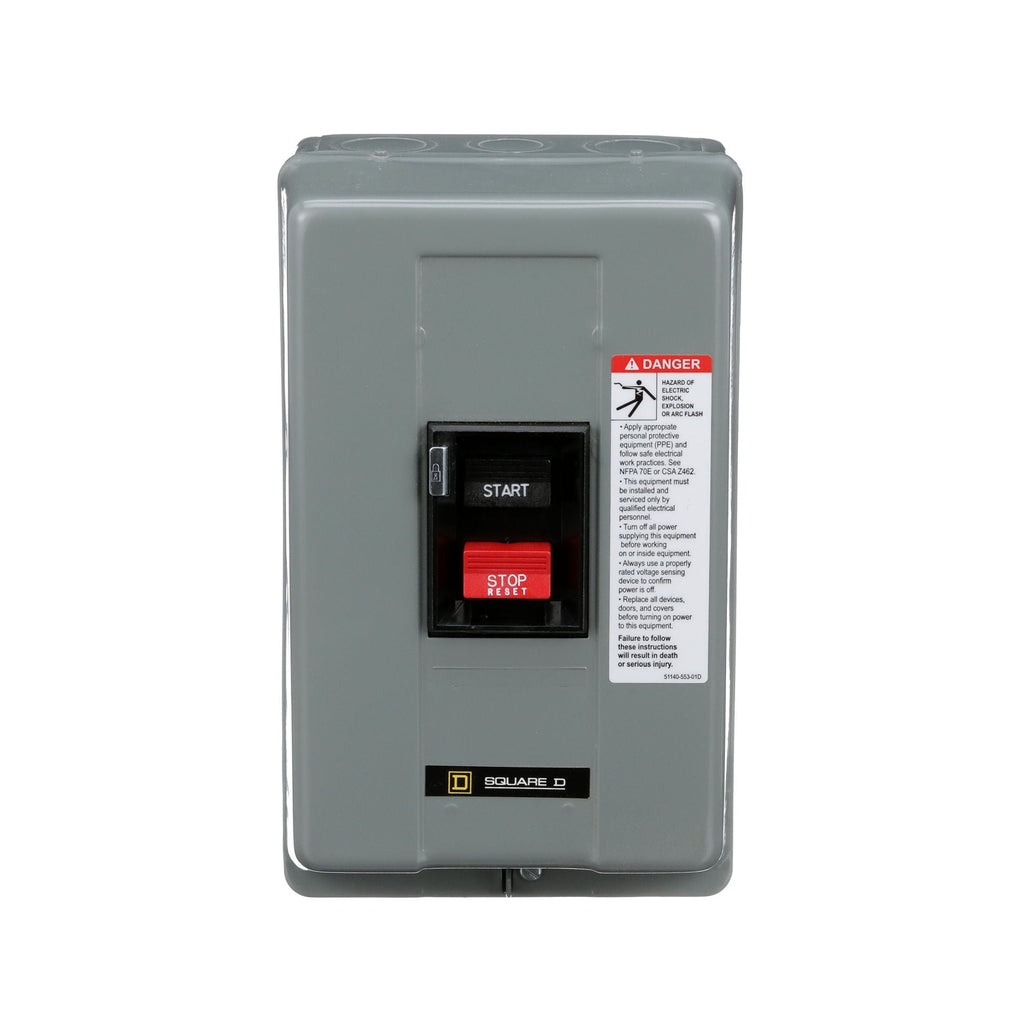

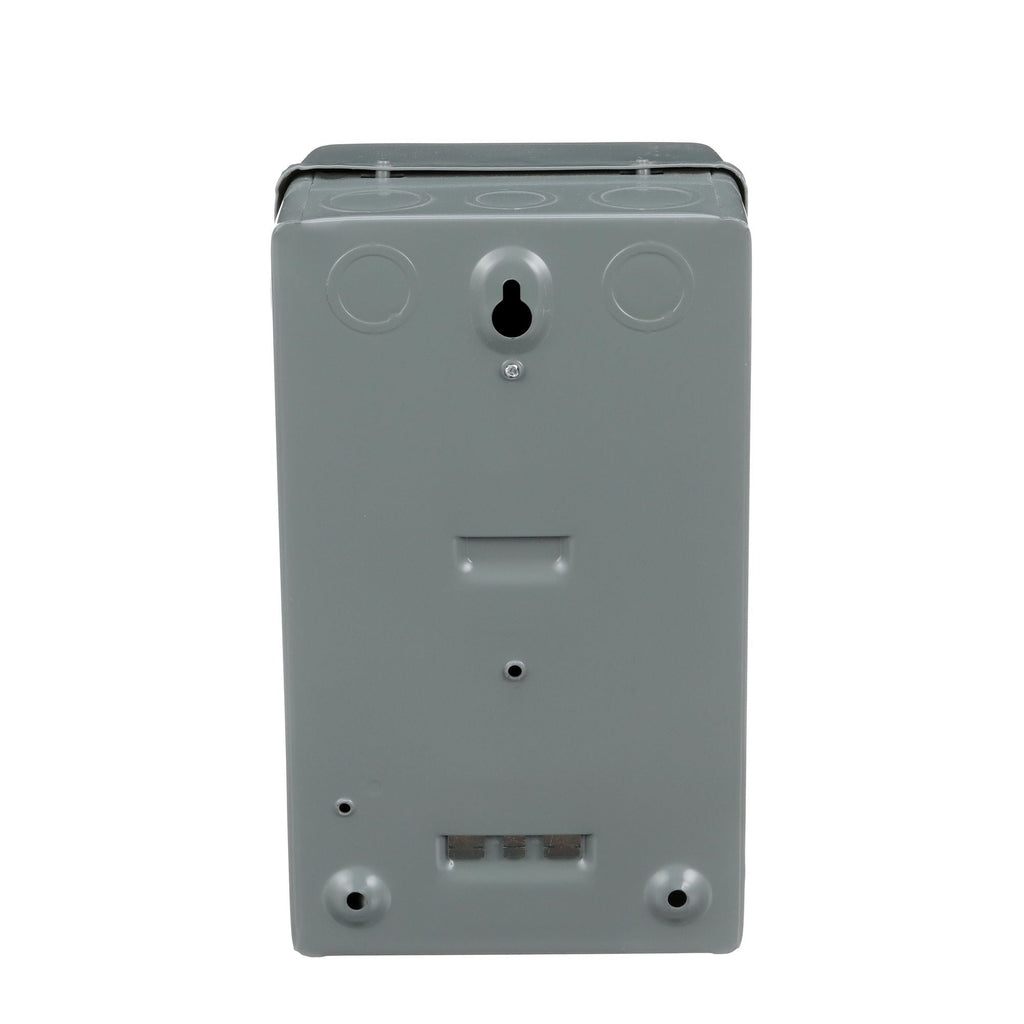

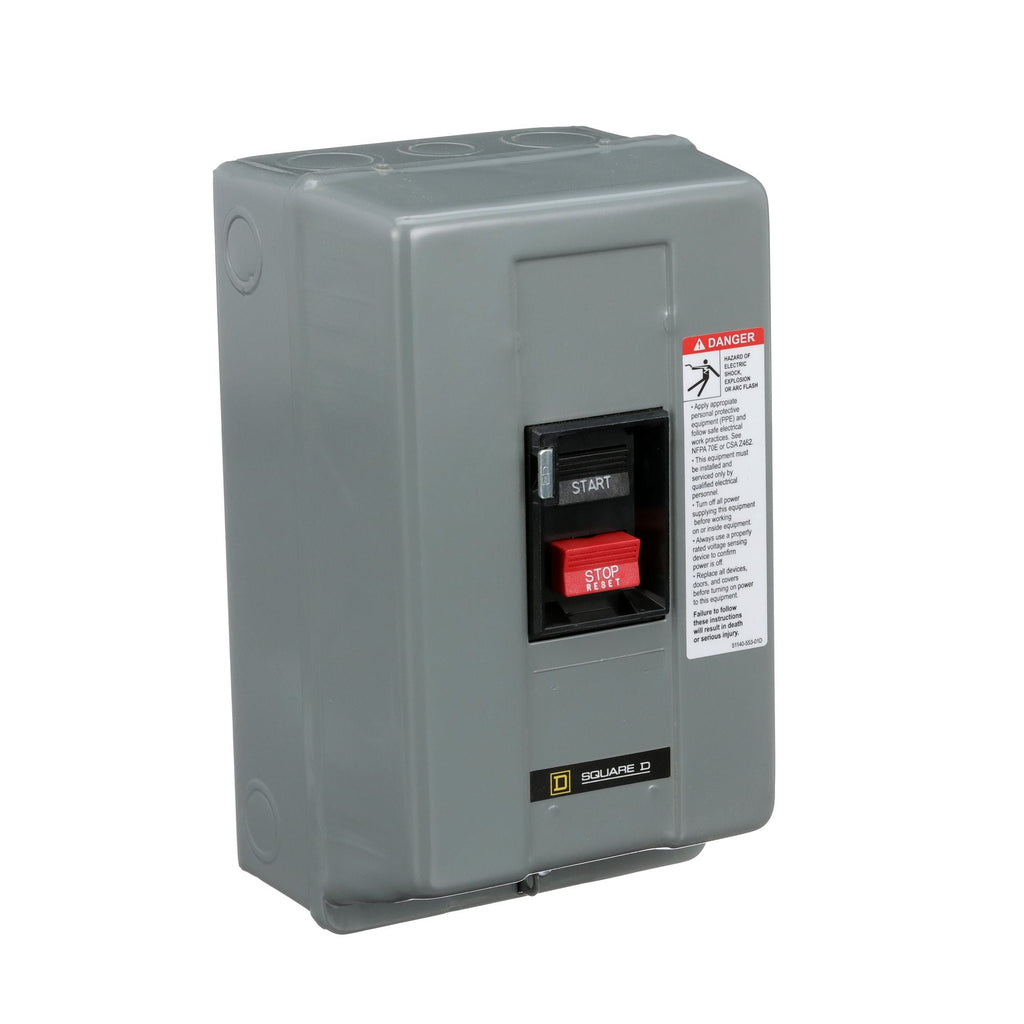

2510MCG2 is a Schneider Electric Type M integral-horsepower manual motor starter designed for non-reversing single-phase motor applications where manual control and overload protection are required. This 2-pole unit is rated for up to 600 V AC in a NEMA 1 painted-steel enclosure and supports up to 3 HP at 115 V or 5 HP at 230 V single-phase operation. It features push-button On/Off control, melting-alloy thermal overload relay (ordered separately) for motor protection, and accepts copper wire terminations from 14 to 6 AWG in its surface-mounted enclosure.

• Manufacturer: Schneider Electric
• Series: Type M (Class 2510)
• Poles: 2
• Voltage Rating: up to 600 V AC
• Horsepower Ratings: 3 HP at 115 V, 5 HP at 230 V (single-phase)
• Enclosure Rating: NEMA 1 (painted sheet steel)
• Overload Type: Melting-alloy thermal unit (thermal element ordered separately)
• Wire Termination Range: 14-6 AWG copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510MCG2
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : M
• Voltage : 600
• Amperage : 9
• Phase : 1
• Poles : 2
• Aux Contacts : Without
• Nema Rating : 00
• Nema Starter Size : M-1P

Product Data

• UPC : 785901801320
• GTIN : 00785901801320
• Country of Origin : Mexico
• Dimensions : 10 in (254 mm) x 6 in (152.4 mm) x 5.22 in (132.59 mm) (Height x Width x Depth)
• Weight : 5.86
• Certification : CSA LR60905, E42243 CCN NLRV, UL Listed
