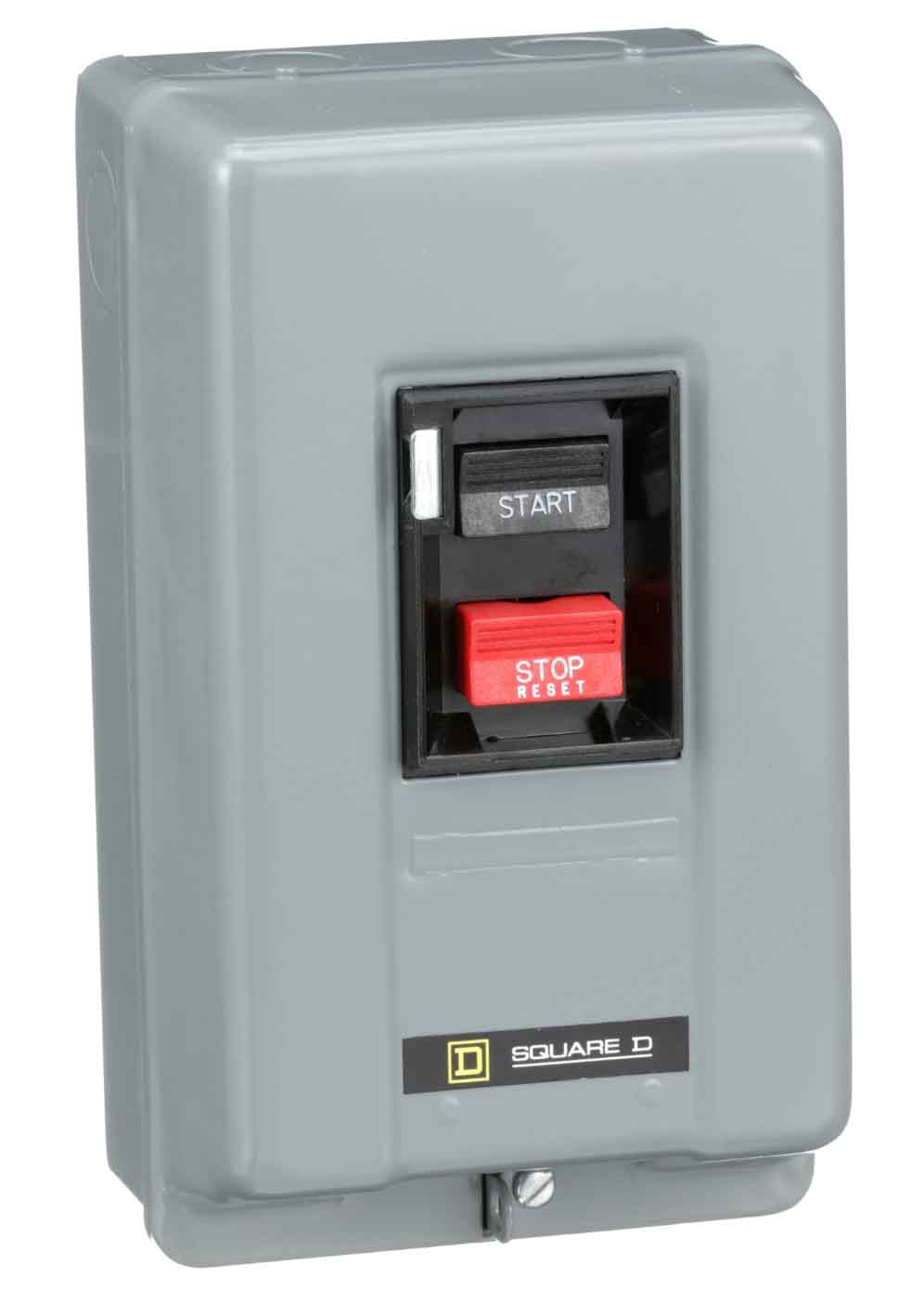

2510MCG1 - Square D 2-Pole Integral Horsepower Manual Starter 600VAC 3HP 1-Phase NEMA 1

2510MCG1

2510MCG1 is a Square D integral horsepower manual motor starter designed for reliable motor control in industrial applications.This manual starter features a 2-pole configuration rated for 3 HP at 230 VAC and 2 HP at 115 VAC, suitable for single-phase motors. It operates at a system voltage of up to 600 VAC and includes a push-button control type without an indicator. The starter is non-reversing with pressure wire clamp electrical connections and is built to NEMA 1 standards. It is UL, CSA, and CE listed, ensuring compliance with safety and performance certifications.

• Manufacturer: Square D
• Series: 2510M
• Amperage: 27 Amps
• Voltage Rating: 600 VAC
• Horsepower: 3 HP at 230 VAC, 2 HP at 115 VAC
• Poles: 2
• Phase: Single-phase
• Mounting Type: NEMA 1 (Indoor)
• Control Type: Push-button
• Non-reversing starter
• Electrical Connection: Pressure wire clamp
• Certifications: UL, CSA, CE listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510MCG1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : M
• Voltage : 600
• Amperage : 9
• Phase : 1
• Poles : 2
• Aux Contacts : Without
• Nema Rating : 00
• Nema Starter Size : M-1

Product Data

• UPC : 785901792024
• GTIN : 00785901792024
• Country of Origin : Mexico
• Dimensions : 8.63 in (219.20 mm) x 5 in (127 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.18
• Certification : CSA LR60905, E42243 CCN NLRV, UL Listed
