2510MCA3 - Square D 3-Pole Integral Horsepower Manual Starter 27A 600VAC NEMA 12 Frame 2510

2510MCA3

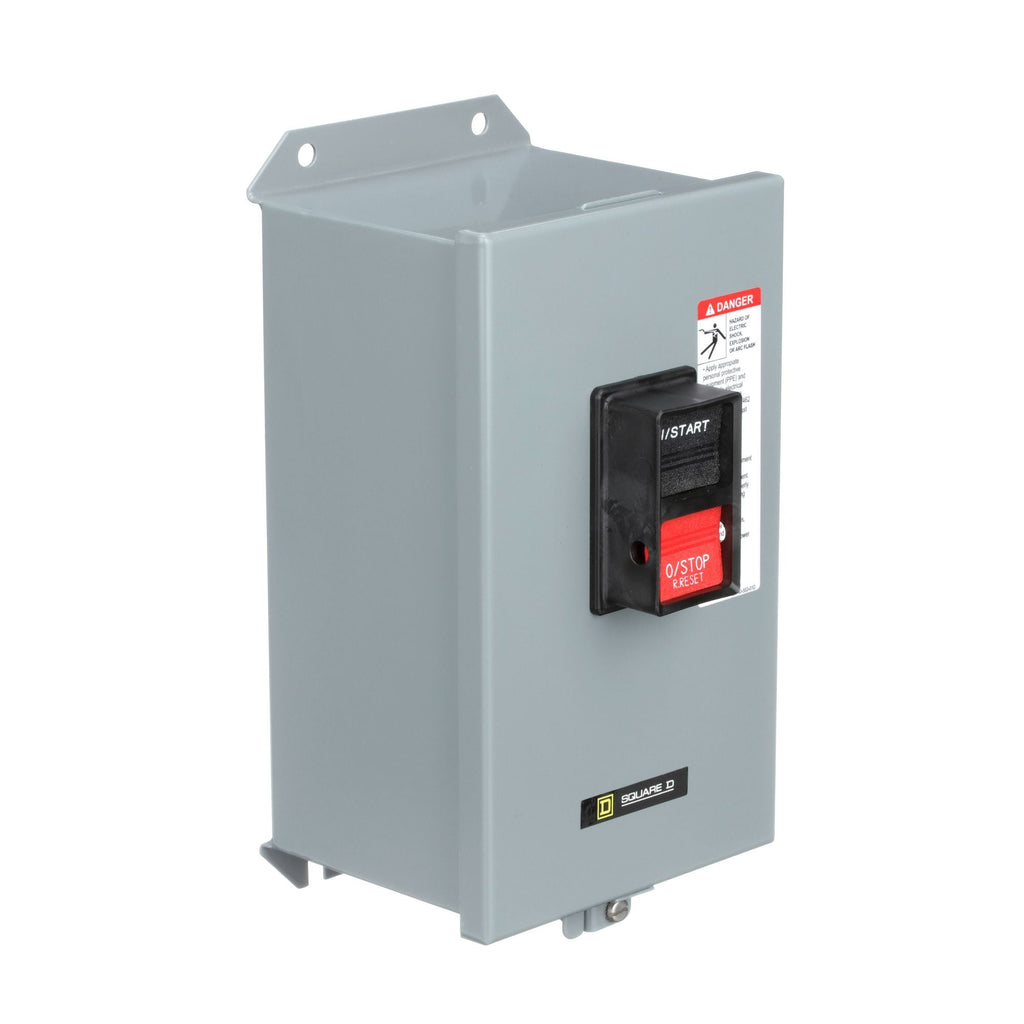

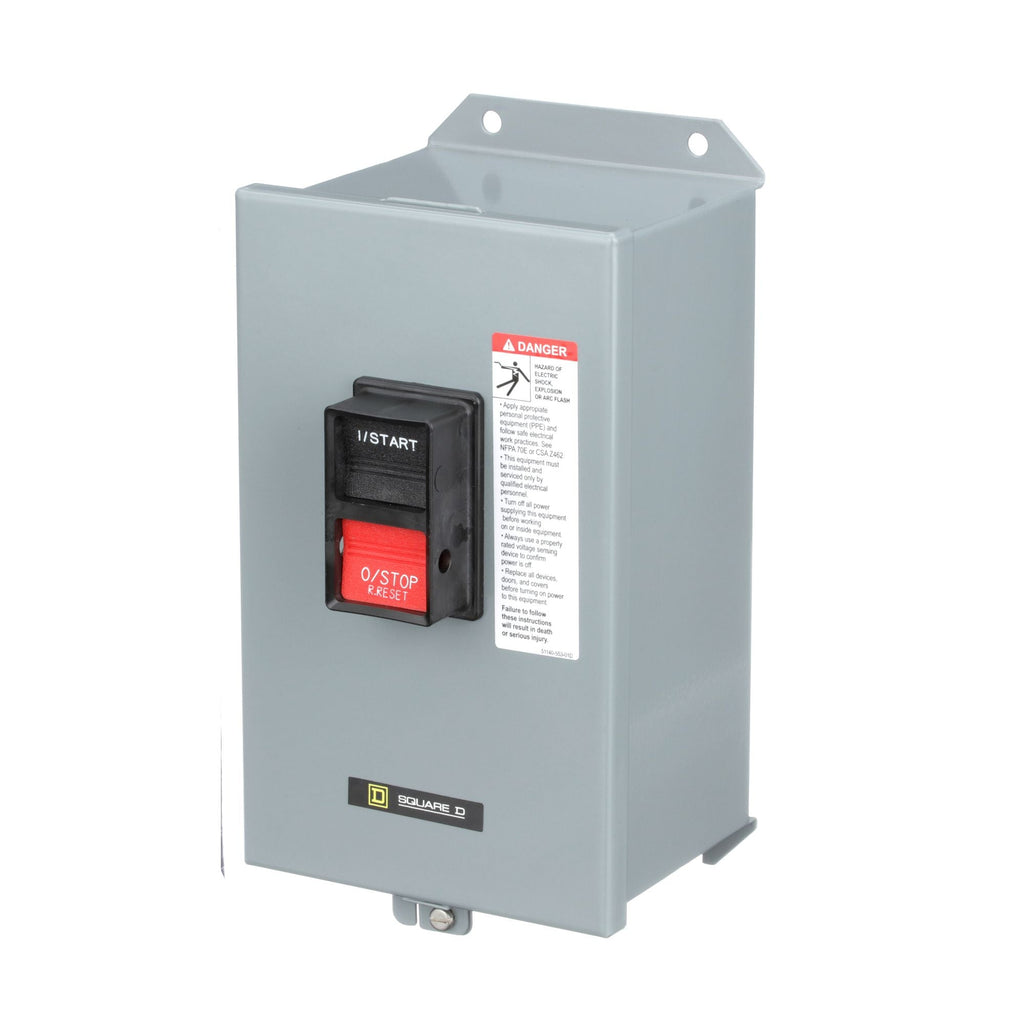

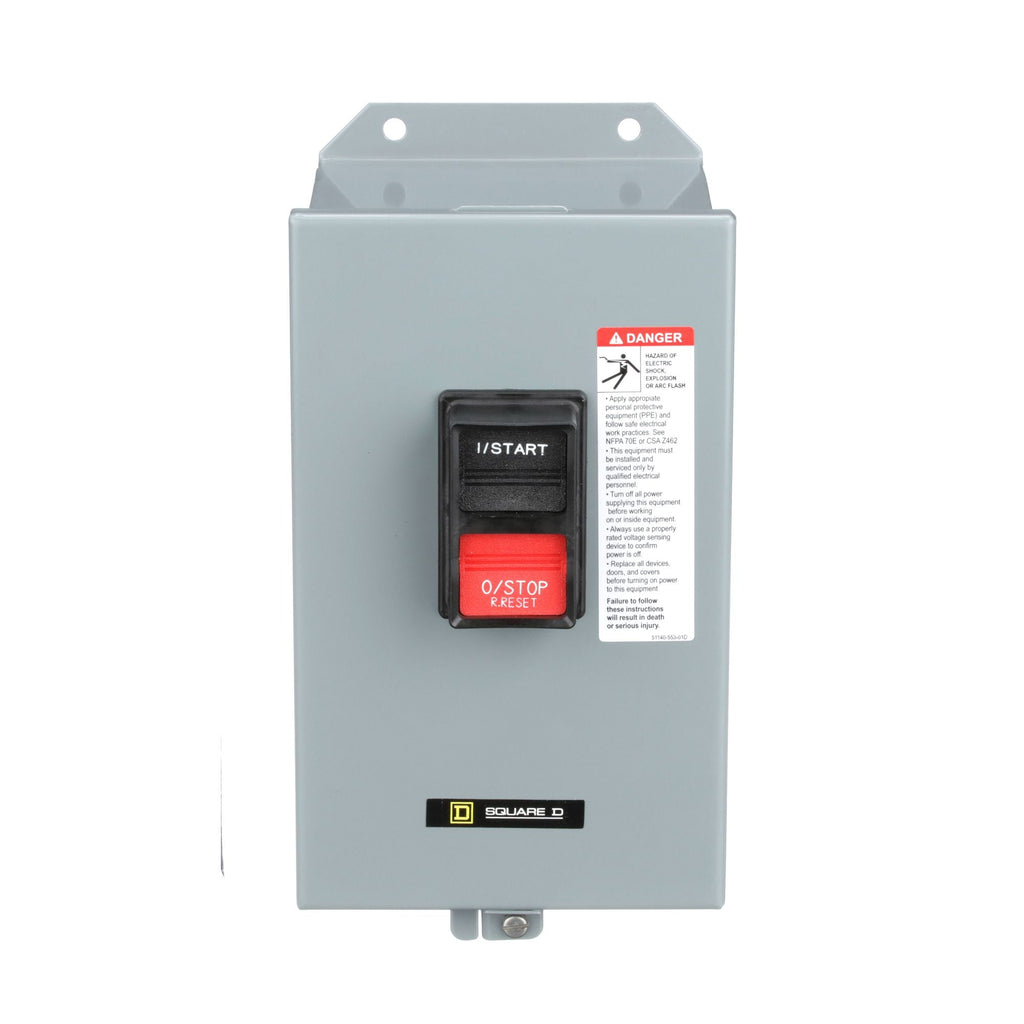

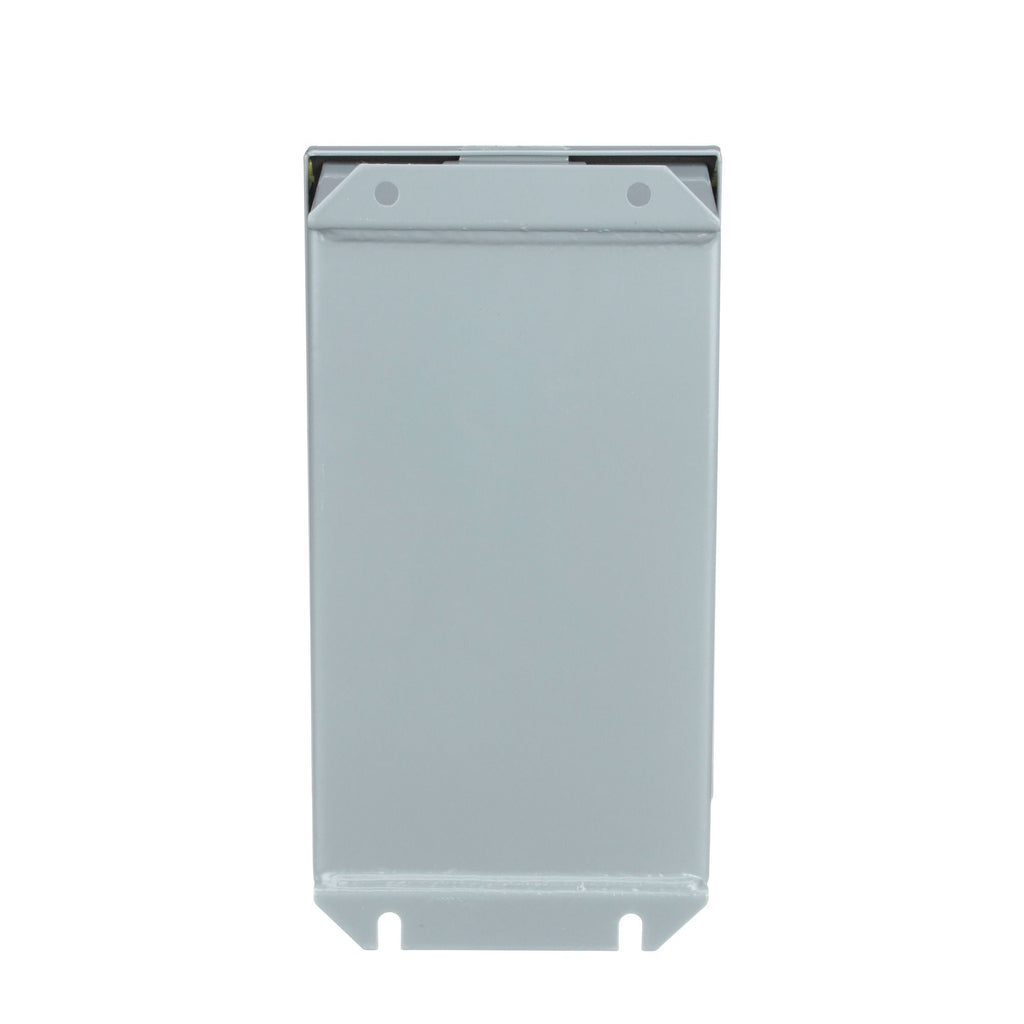

2510MCA3 is a Square D 3-pole integral horsepower manual motor starter designed for reliable motor control in industrial applications.2510MCA3 features a NEMA 12 enclosure, 27 amp current rating, and supports up to 10 HP at 480 VAC three-phase motors. It operates at 600 VAC system voltage with push-button control and no local indicator. This starter uses pressure wire clamp electrical connections and is part of the 2510 frame series.

Key Specifications
• Amperage: 27 Amps
• Voltage: 600 VAC, 250 VDC
• Poles: 3-Pole
• Mounting Type: NEMA 12 enclosure
• Interrupt Rating: Integral horsepower manual starter
• Frame/Series: 2510
• Trip Unit: Manual push-button control, non-reversing
• Motor Power: 7.5 HP at 230 VAC, 10 HP at 480 VAC
• Phase: 3-Phase
• Electrical Connection: Pressure wire clamp
• Local Signaling: No indicator

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510MCA3
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : M
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Aux Contacts : Without
• Nema Rating : 00
• Nema Starter Size : M-1

Product Data

• UPC : 785901845317
• GTIN : 00785901845317
• Country of Origin : Mexico
• Dimensions : 10.92 in (277.37 mm) x 5.78 in (146.81 mm) x 5.76 in (146.30 mm) (Height x Width x Depth)
• Weight : 6.99
• Certification : CSA LR60905, E42243 CCN NLRV, UL Listed
