2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510MBW2

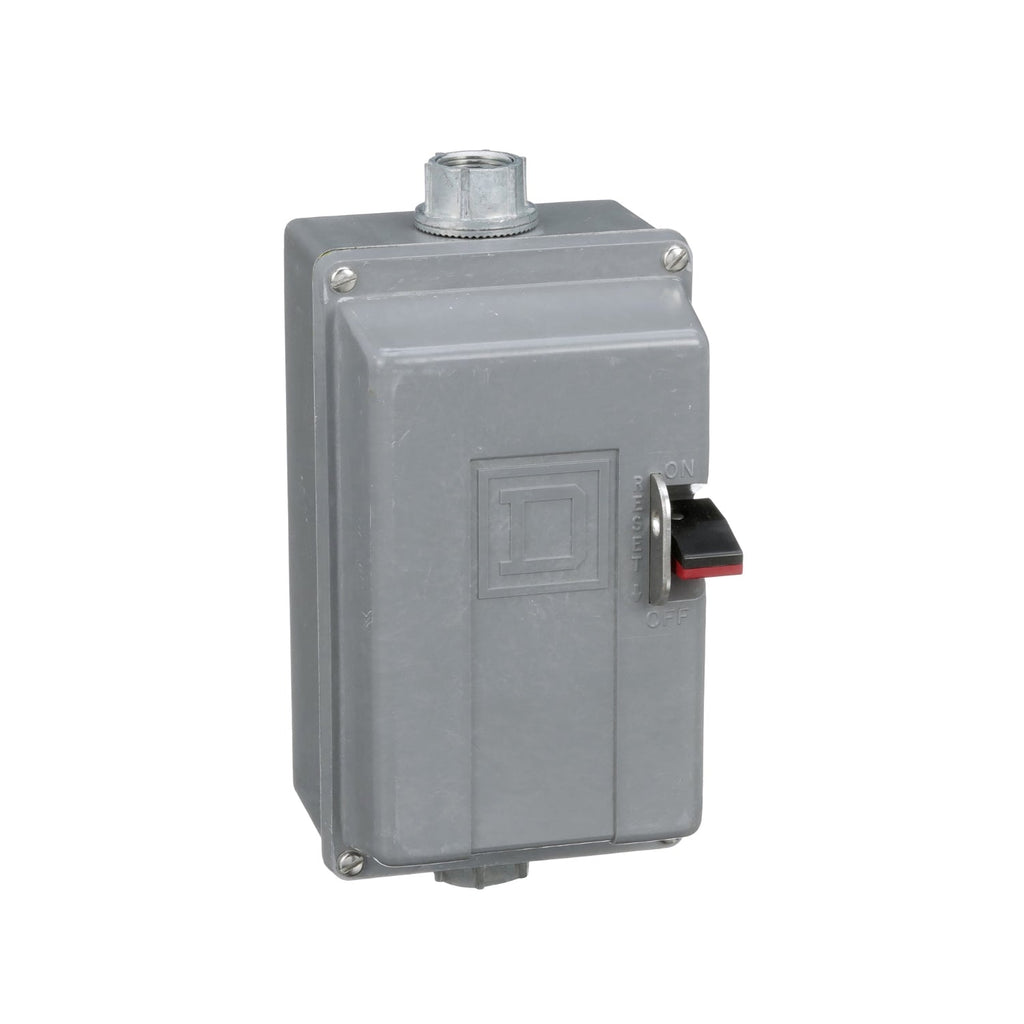

2510MBW2 is a Square D manual motor starter designed for 3 phase motor control with 18 amp rating and 600 VAC voltage capacity.This 3 pole starter features a NEMA 3/4/4X glass polyester enclosure, manual reset, pushbutton control, and thermal melting alloy overload relay for reliable motor protection.
- Amperage: 18 A
- Voltage: 600 VAC
- Poles: 3
- Phase: 3
- Motor Horsepower: 5 HP at 380-575 VAC
- Enclosure Type: NEMA 3/4/4X Glass Polyester
- Overload Relay: Thermal Melting Alloy
- Control Type: Pushbutton
- Reset Type: Manual
- Connection Type: Pressure Wire Clamp
- Series/Frame: 2510M, NEMA M0
- Action: Non-Reversing
- Certifications: UL Listed, CSA Certified
Additional Information
Non-Reversing
Specifications
- Part Number: 2510MBW2
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : M
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Aux Contacts : Without
- Nema Rating : 00
- Nema Starter Size : M-0
Product Data
- UPC : 785901821014
- GTIN : 00785901821014
- Country of Origin : Mexico
- Dimensions : 10.34 in (262.64 mm) x 5.13 in (130.30 mm) x 5.78 in (146.81 mm) (Height x Width x Depth)
- Weight : 5.58
- Certification : CSA LR60905, E42243 CCN NLRV, UL Listed
