2510MBW11 - Square D 18 Amp 2 Pole Manual Motor Starter 600VAC NEMA 4/4X M0 Frame

2510MBW11

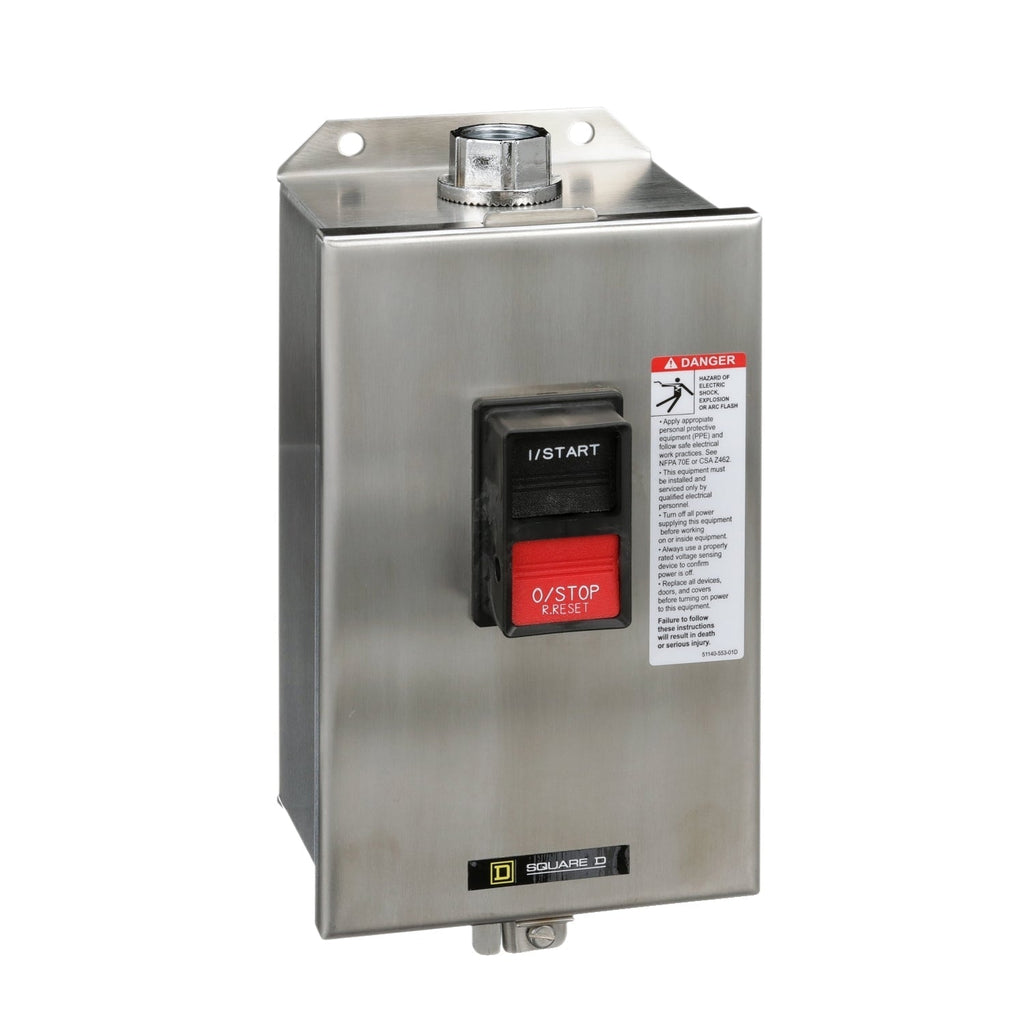

2510MBW11 is a Square D manual motor starter designed for motor control applications with 2 poles and a voltage rating of 600VAC.2510MBW11 features a NEMA 4/4X enclosure rating and M0 frame size, suitable for single-phase motors up to 2 HP at 230 VAC. It includes thermal melting alloy trip units and is UL and CSA certified for safety and reliability.

Key Specifications
• Amperage: 18 Amp
• Voltage: 600 VAC
• Poles: 2
• Phase: Single-phase
• Horsepower Rating: 1 HP at 115 VAC, 2 HP at 230 VAC
• Mounting Type: NEMA M0 Frame
• Enclosure Rating: NEMA 4/4X
• Trip Unit: Thermal - Melting Alloy
• Certifications: UL, CSA
• Body Material: Stainless Steel
• Reset Type: Manual

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510MBW11
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : MBW11
• Voltage : 600
• Poles : 2
• Aux Contacts : Without
• Nema Starter Size : M-0

Product Data

• UPC : 785901057642
• GTIN : 00785901057642
• Country of Origin : Mexico
• Dimensions : 10.92 in (277.37 mm) x 5.78 in (146.81 mm) x 5.76 in (146.30 mm) (Height x Width x Depth)
• Weight : 7.5
• Certification : CSA LR60905, E42243 CCN NLRV, UL Listed
