Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510KW1H

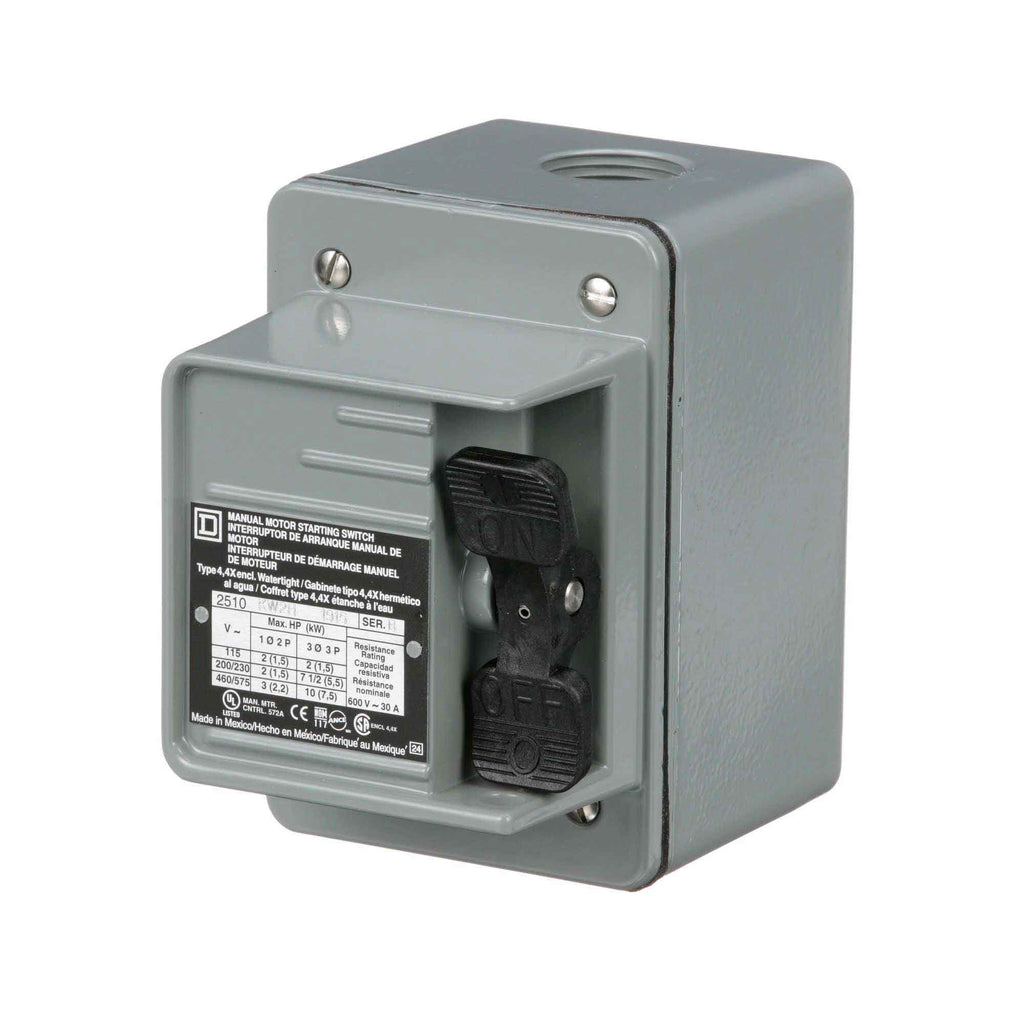

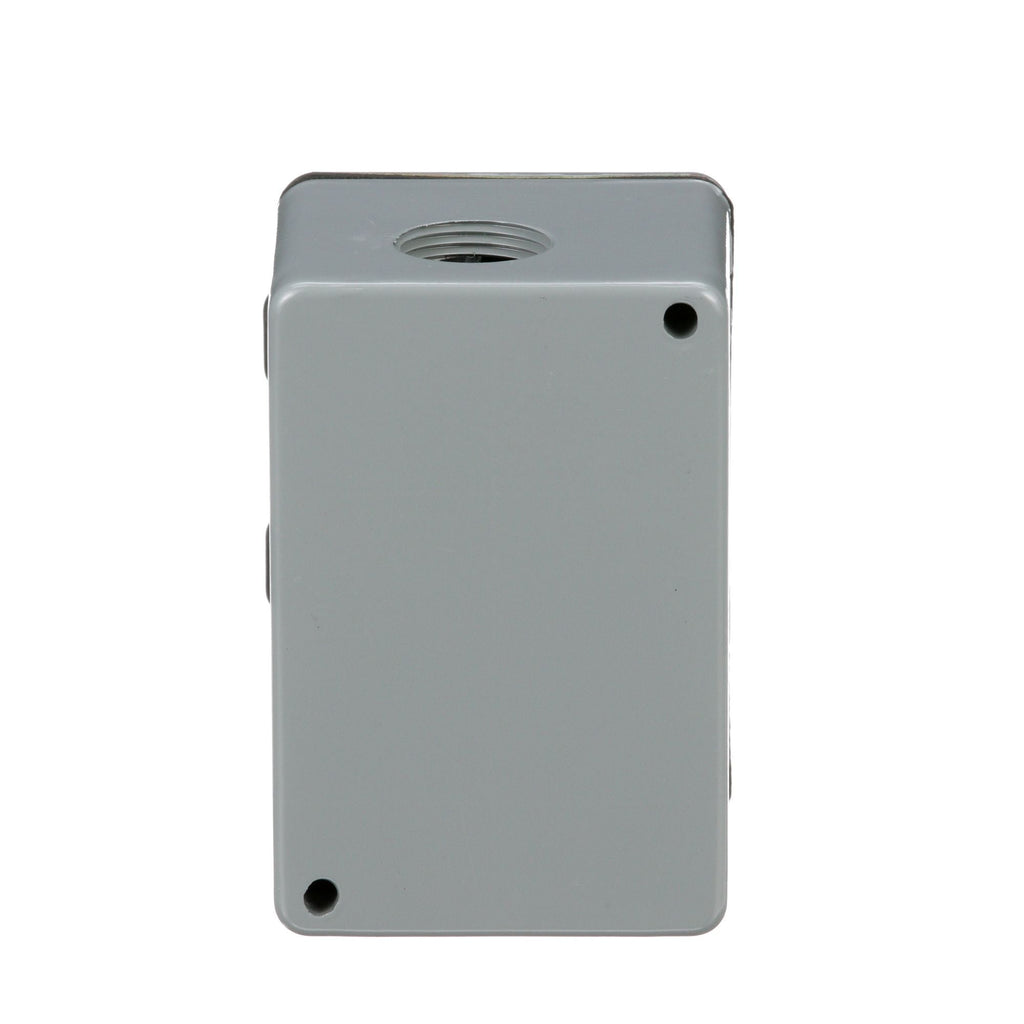

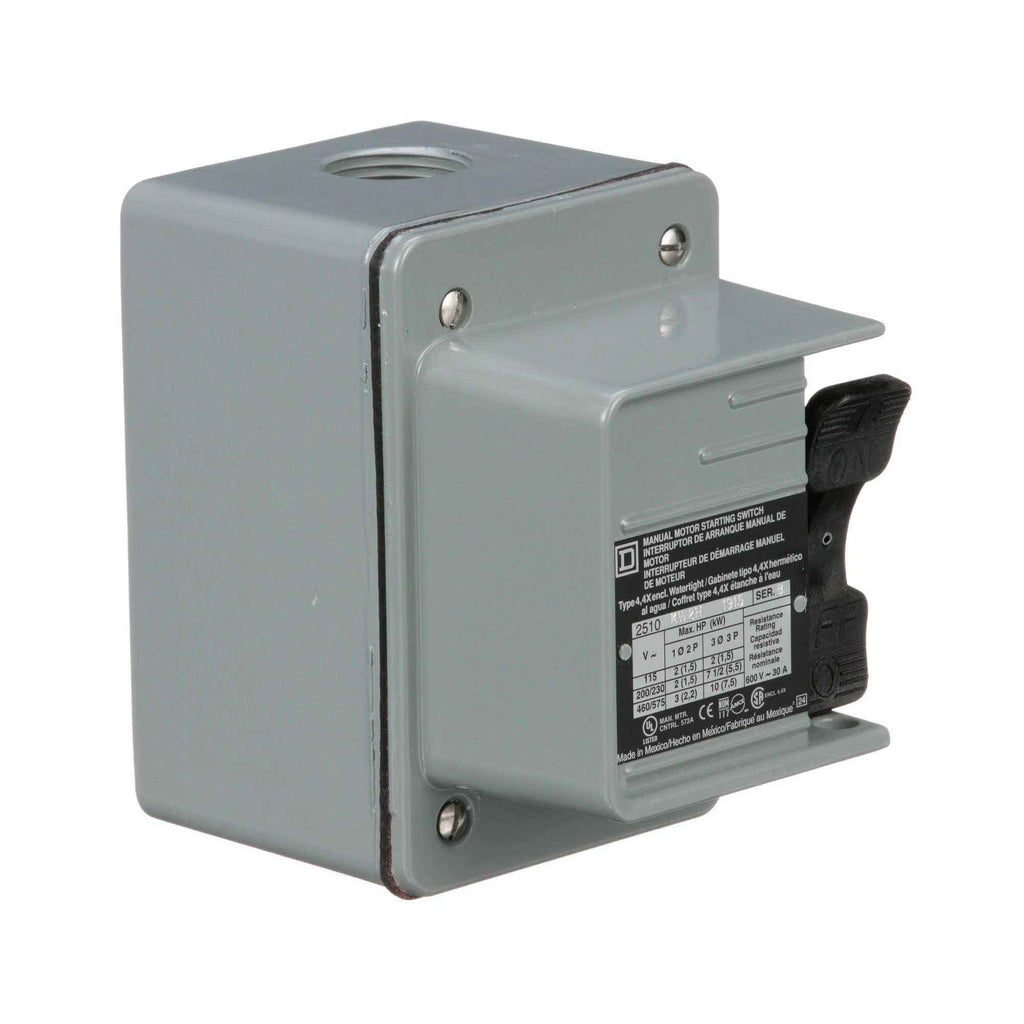

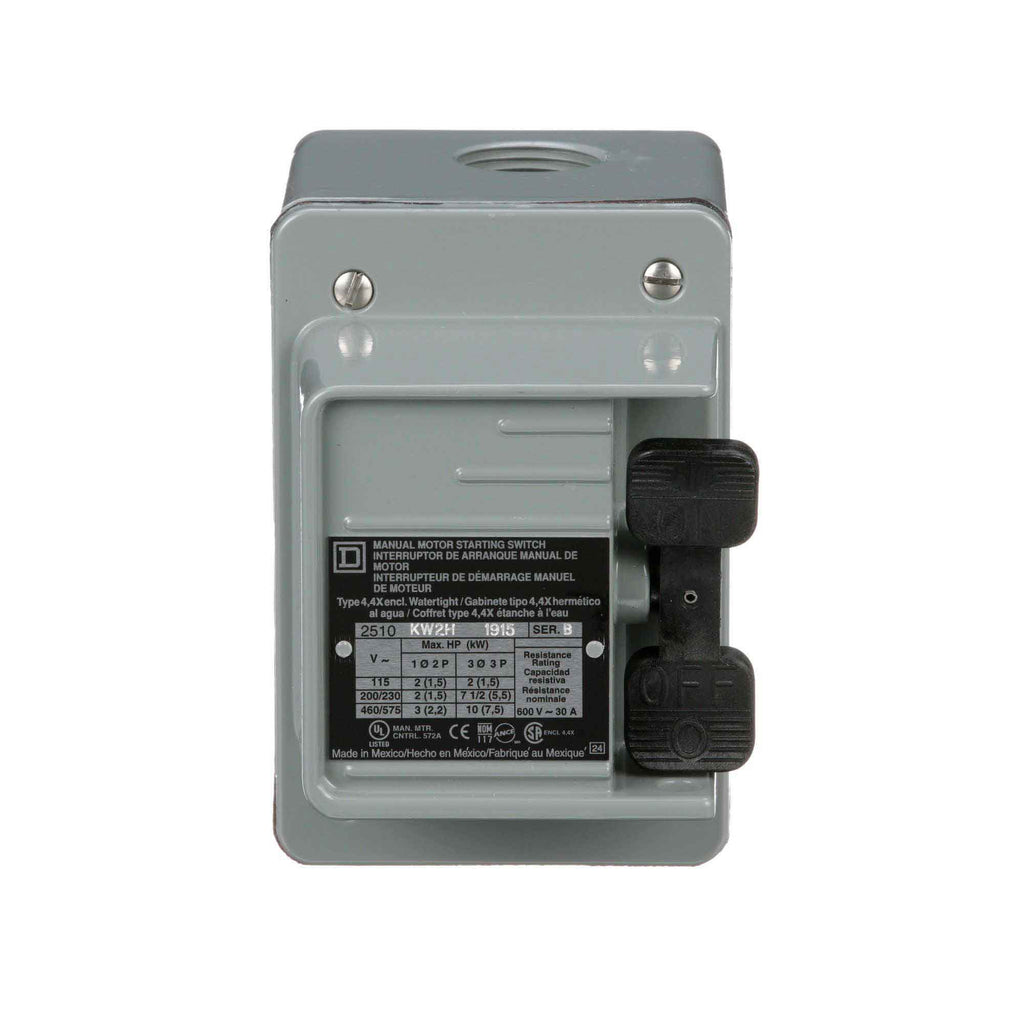

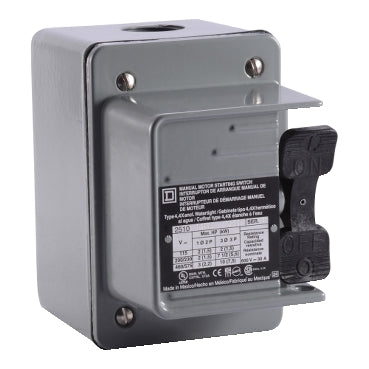

2510KW1H is a Square D Class 2510 manual motor switch designed for reliable motor control in industrial and commercial applications. This 2-pole, 30A switch features a toggle operator, NEMA 4 rated enclosure, and is suitable for up to 600VAC single-phase systems. Engineered for durability, the 2510KW1H provides manual on/off control for motors up to 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, and 3 HP at 600VAC. The painted steel enclosure offers protection against dust and water ingress, making it ideal for harsh environments. The switch is equipped with screw clamp terminals for secure wiring and features cable entry via 0.75 NPT top and bottom.
- Part Number: 2510KW1H
- Manufacturer: Square D
- Series: Class 2510
- Amperage: 30A
- Max Voltage: 600VAC
- Poles: 2
- Operator: Toggle Switch
- Enclosure: NEMA 4, Painted Steel
- Mounting: Panel Mount
- Interrupt Rating: 10kA
- Terminal Type: Screw Clamp
- Cable Entry: 0.75 NPT (Top and Bottom)
Specifications
- Part Number: 2510KW1H
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : KW1H
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
Product Data
- UPC : 785901508878
- GTIN : 00785901508878
- Country of Origin : Mexico
- Dimensions : 4.38 in (111.25 mm) x 3 in (76.2 mm) x 4.25 in (107.95 mm) (Height x Width x Depth)
- Weight : 2.89
- Certification : CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
