Product Info
- Manufacturer:Altech Corp
- Sub-Category:Molded Case
Description
1G10UM

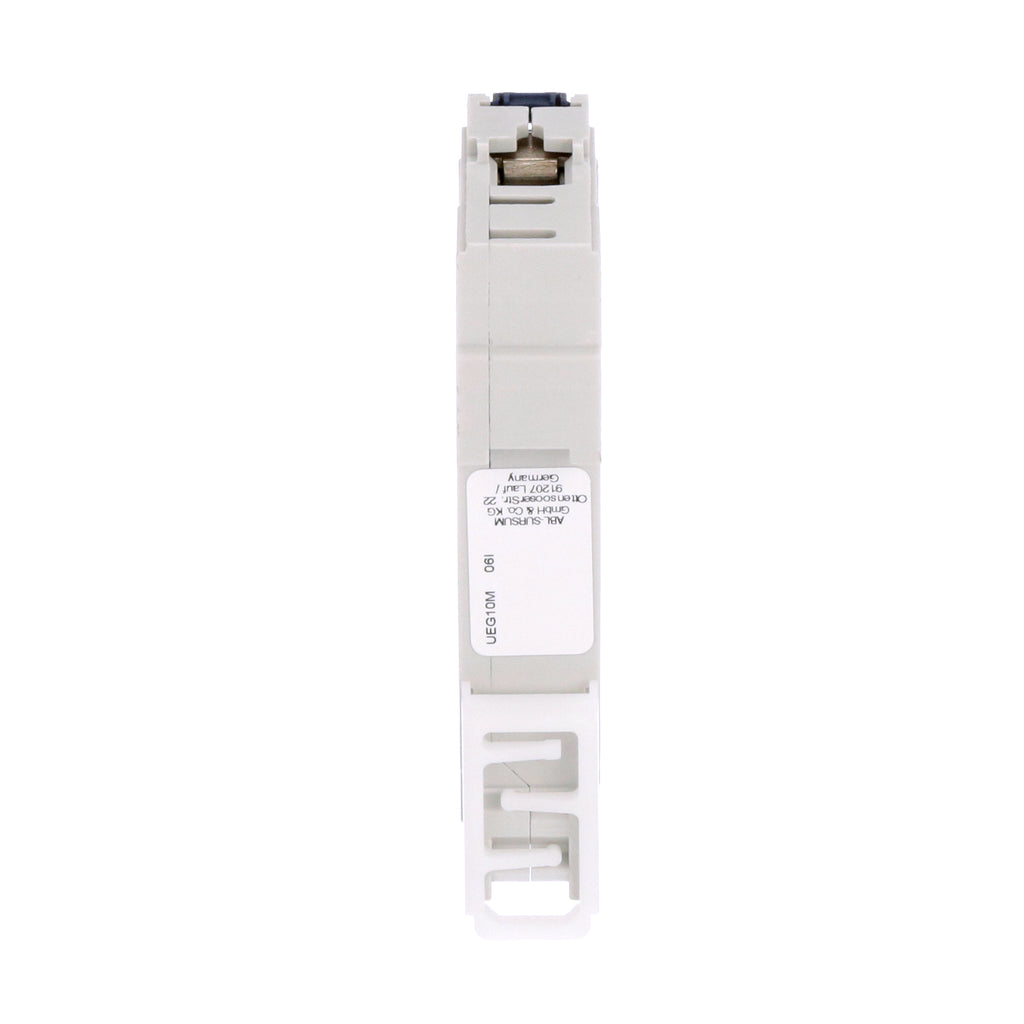

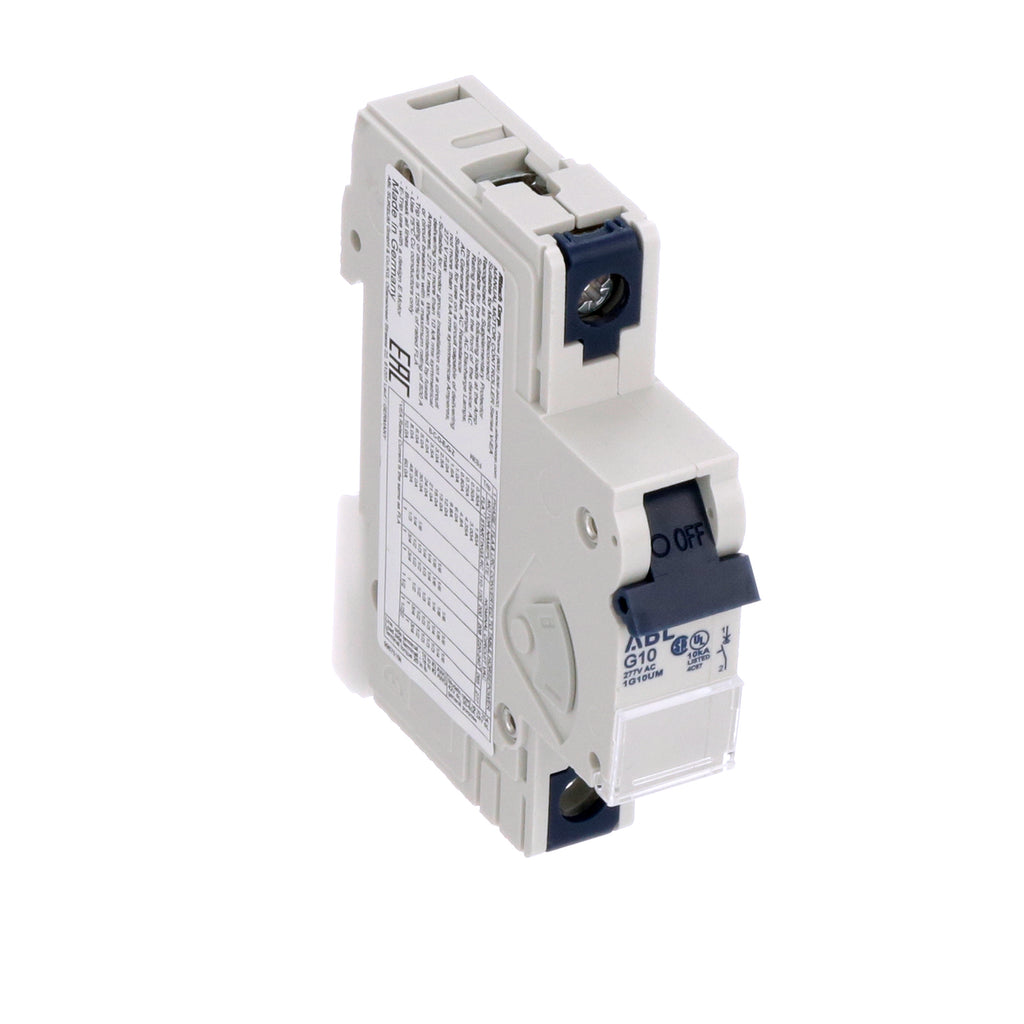

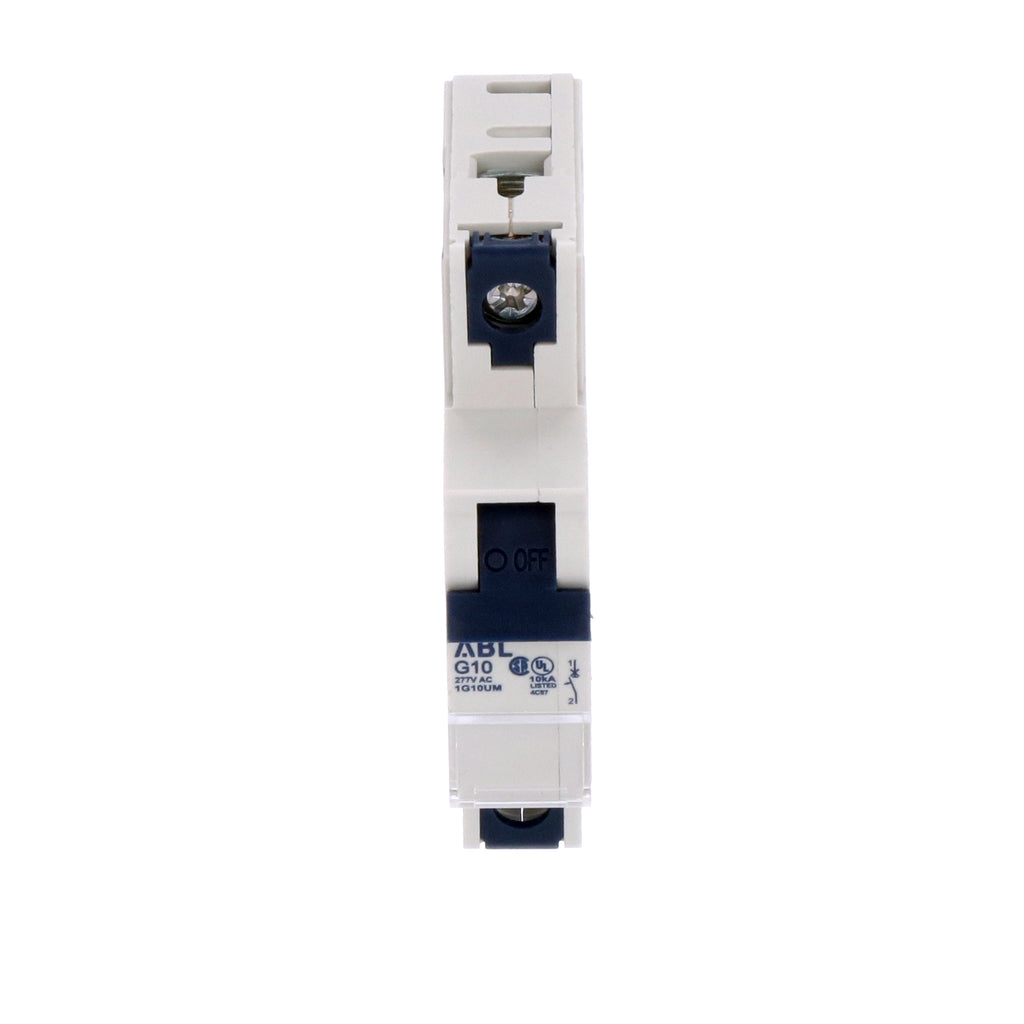

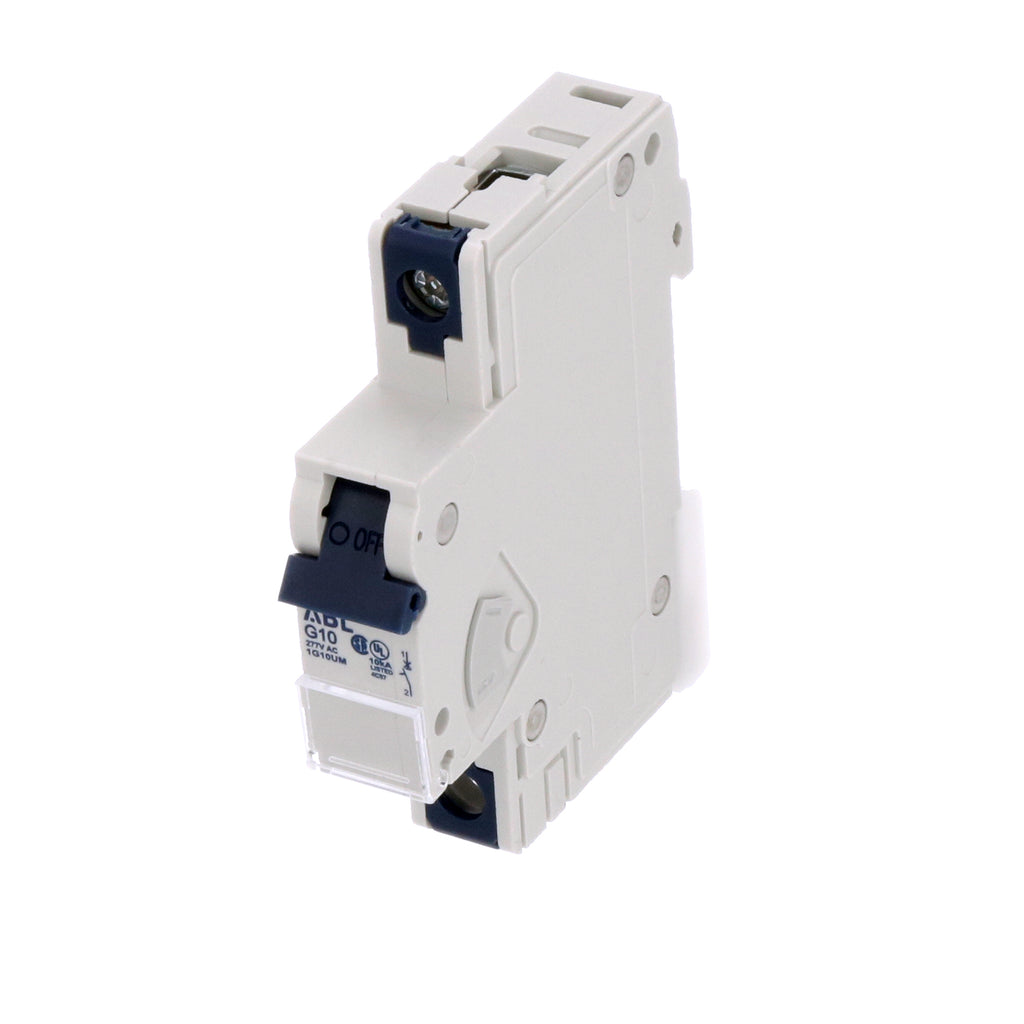

1G10UM is a 10 amp, 1 pole thermal magnetic circuit breaker from Altech Corp designed for DIN rail mounting.1G10UM features a G trip curve, 480Y/277V AC voltage rating, and a 10kA short circuit interrupt capacity. It is UL508 listed and suitable for motor disconnect applications with a compact 17.5mm width per pole.
- Key Specifications
- Amperage: 10A
- Poles: 1
- Trip Unit: Thermal Magnetic, G Curve
- Voltage Rating: 480Y/277V AC, 50/60Hz
- Interrupt Rating: 10kA
- Mounting Type: DIN Rail
- Width: 17.5mm per pole
- Series/Frame: DLS8
- Certifications: UL508 Listed
Specifications
- Part Number: 1G10UM
- Manufacturer : Altech Corp
- Brand : Altech Corp
- Category : Circuit Breaker
- Item Subcategory : Molded Case
Product Data
- Weight : 7
