Product Info
- Manufacturer:Altech Corp
- Sub-Category:Molded Case
Description
1CU30L

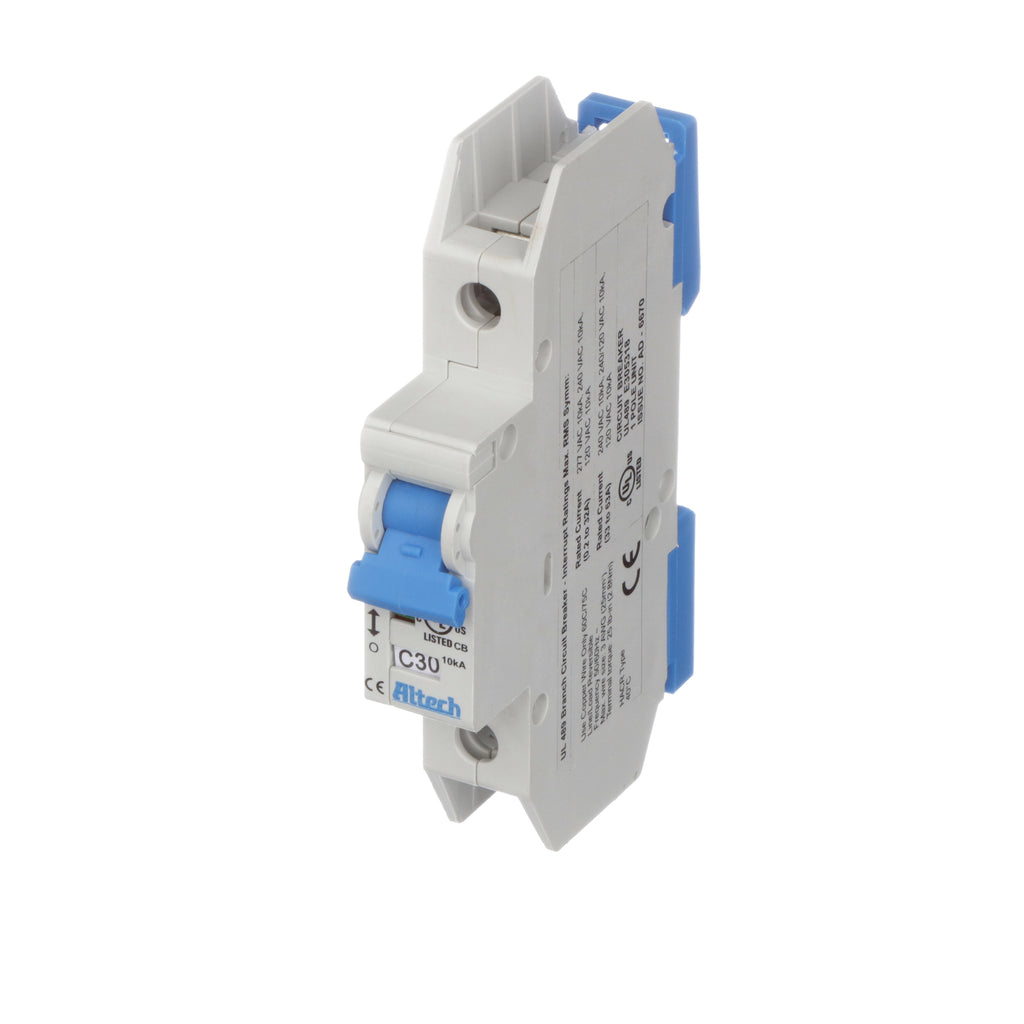

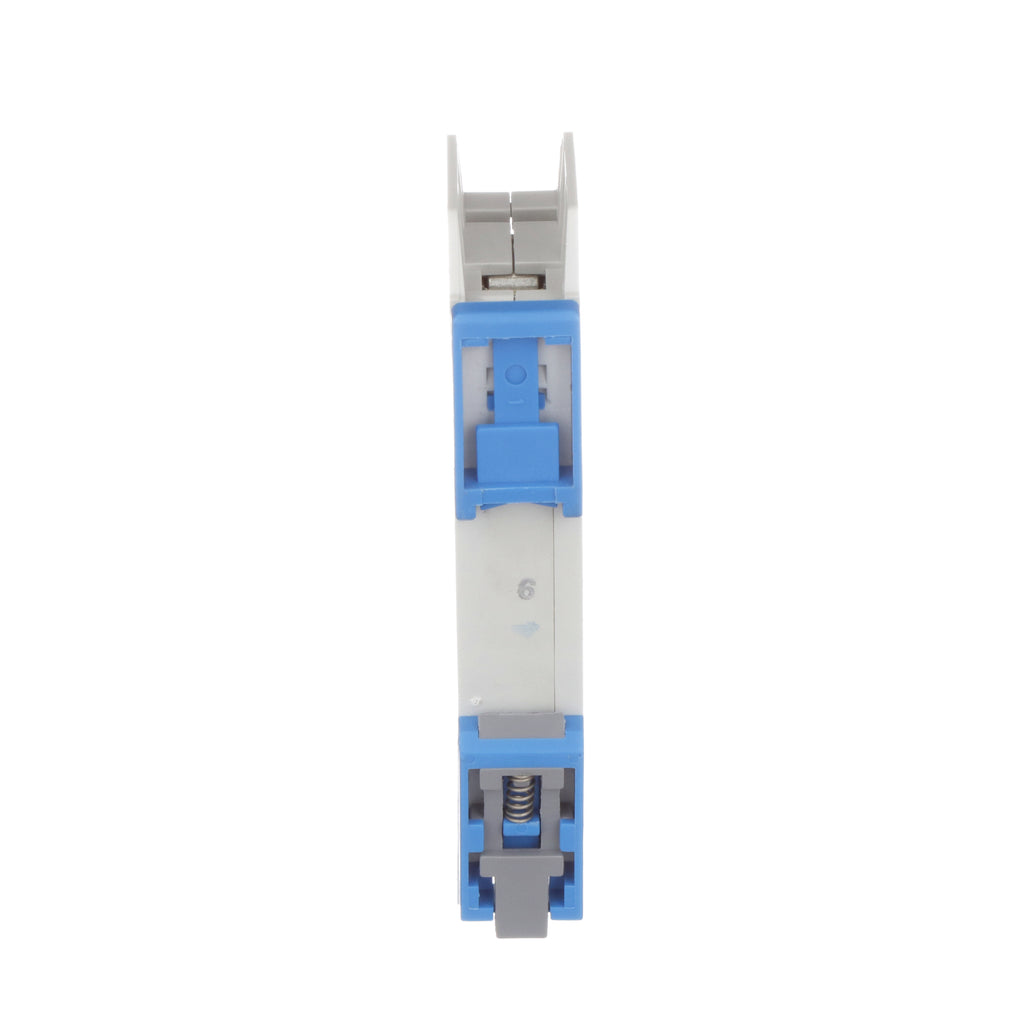

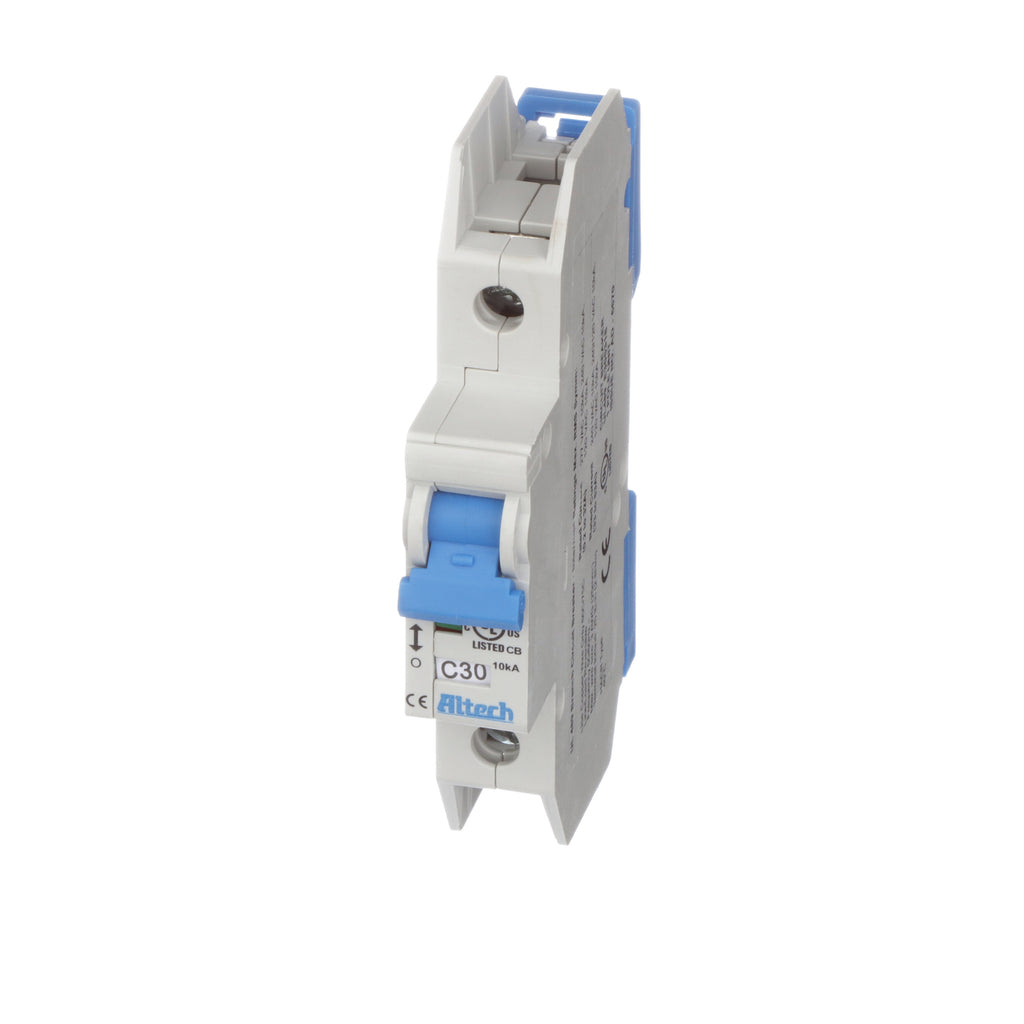

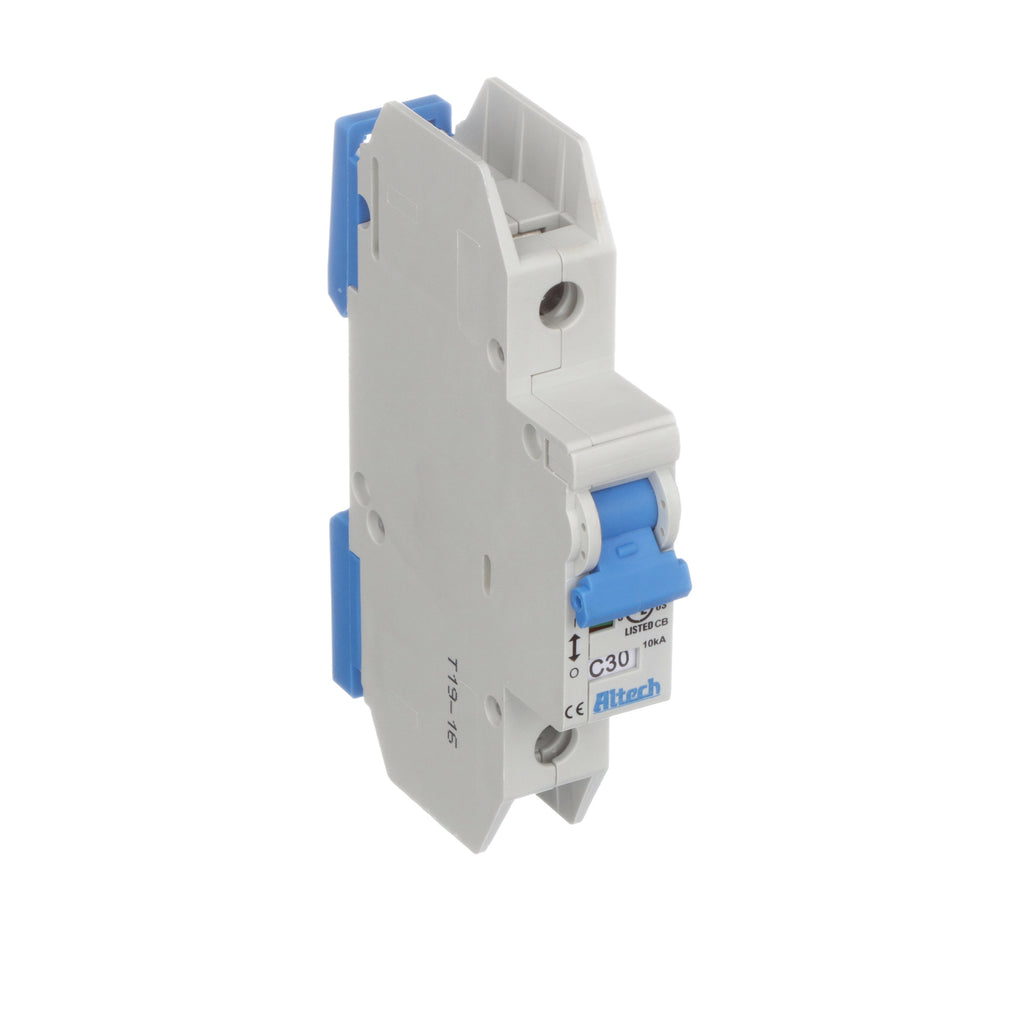

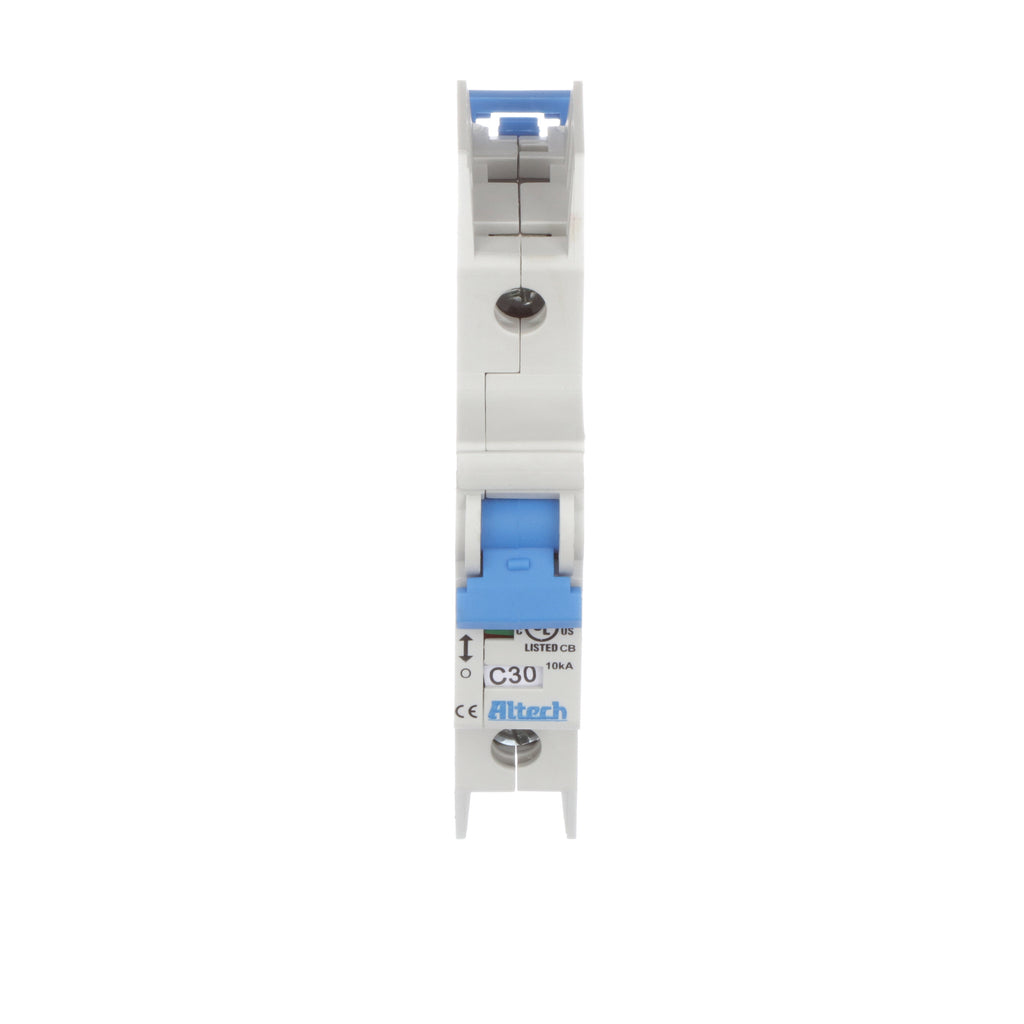

1CU30L is a miniature circuit breaker designed for industrial control and automation applications requiring single-pole protection at 30 amperes. This UL489-listed device provides thermal-magnetic protection with a C-trip characteristic, delivering reliable overcurrent and short-circuit protection in compact DIN rail-mounted form factor. The breaker features compression terminals for secure wire connections and is rated for 480Y/277V AC operation at 50/60Hz, making it suitable for control circuits, lighting, wiring protection, and general equipment applications.
- Current Rating: 30A
- Number of Poles: 1 Pole
- Voltage Rating: 480Y/277V AC
- Trip Curve: C Characteristic
- Short Circuit Interrupting Capacity: 10 kA
- Terminal Type: Compression
- UL Standard: UL489
- Mounting: DIN Rail (17.5mm width)
- UL CCN: DIVQ
- UL File Number: E305318
Specifications
- Part Number: 1CU30L
- Manufacturer : Altech Corp
- Brand : Altech Corp
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 277
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@277V
- Protection : Thermal Magnetic
Product Data
- Weight : 2
