Product Info
- Manufacturer:Altech Corp
- Sub-Category:Molded Case
Description
1CU20R

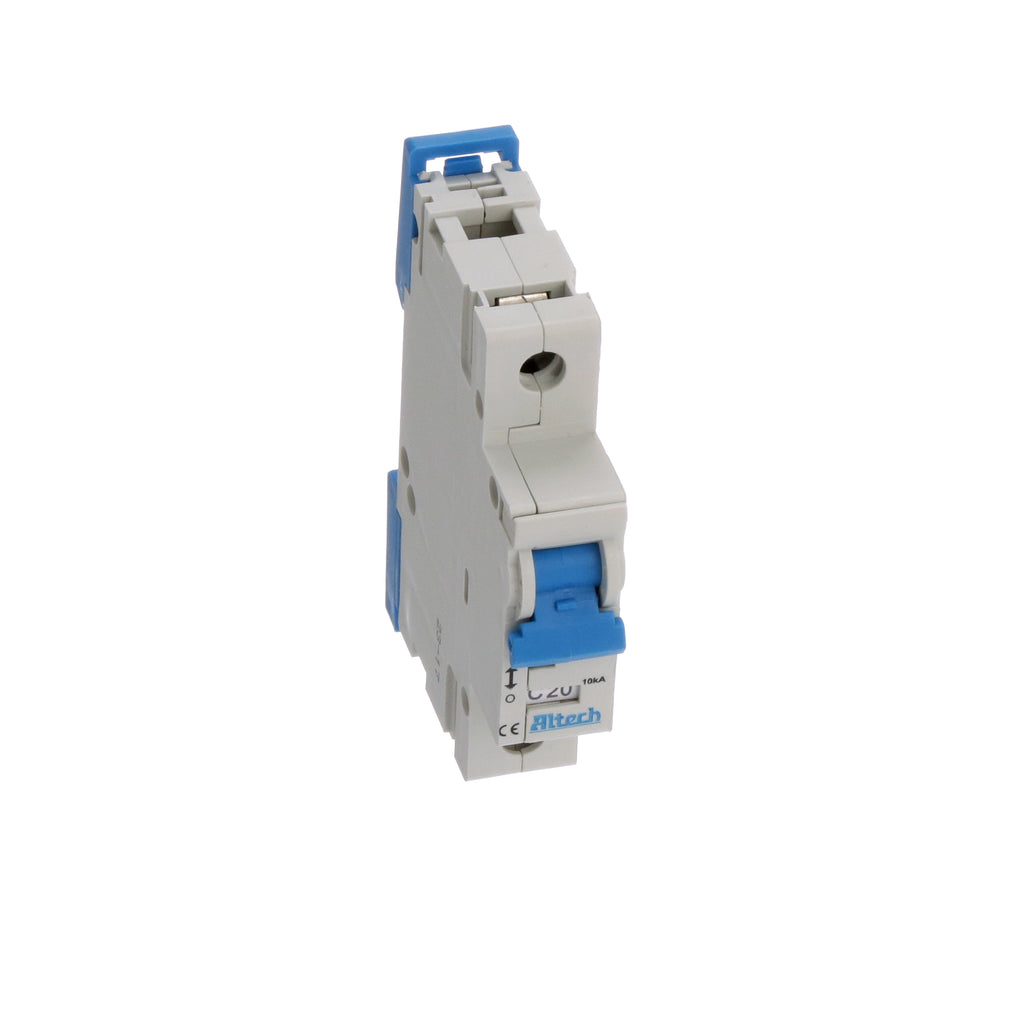

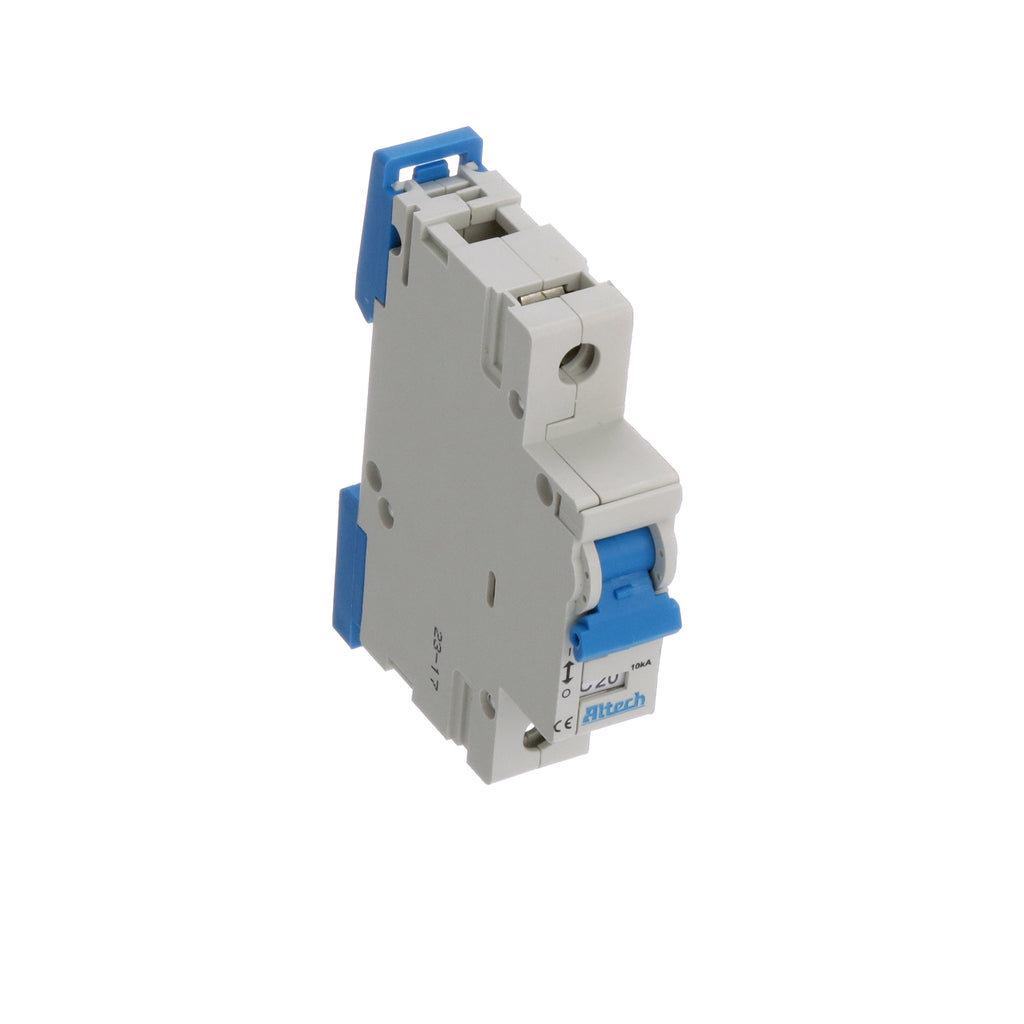

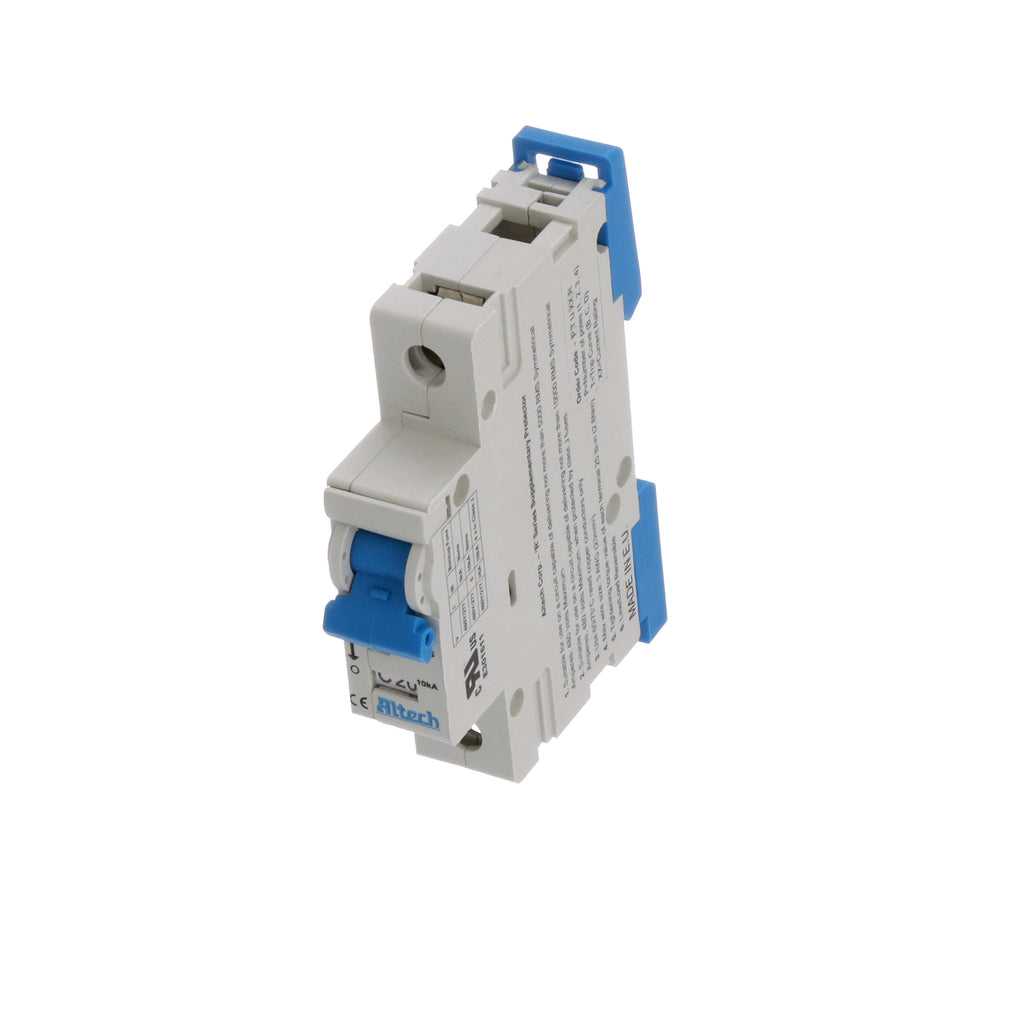

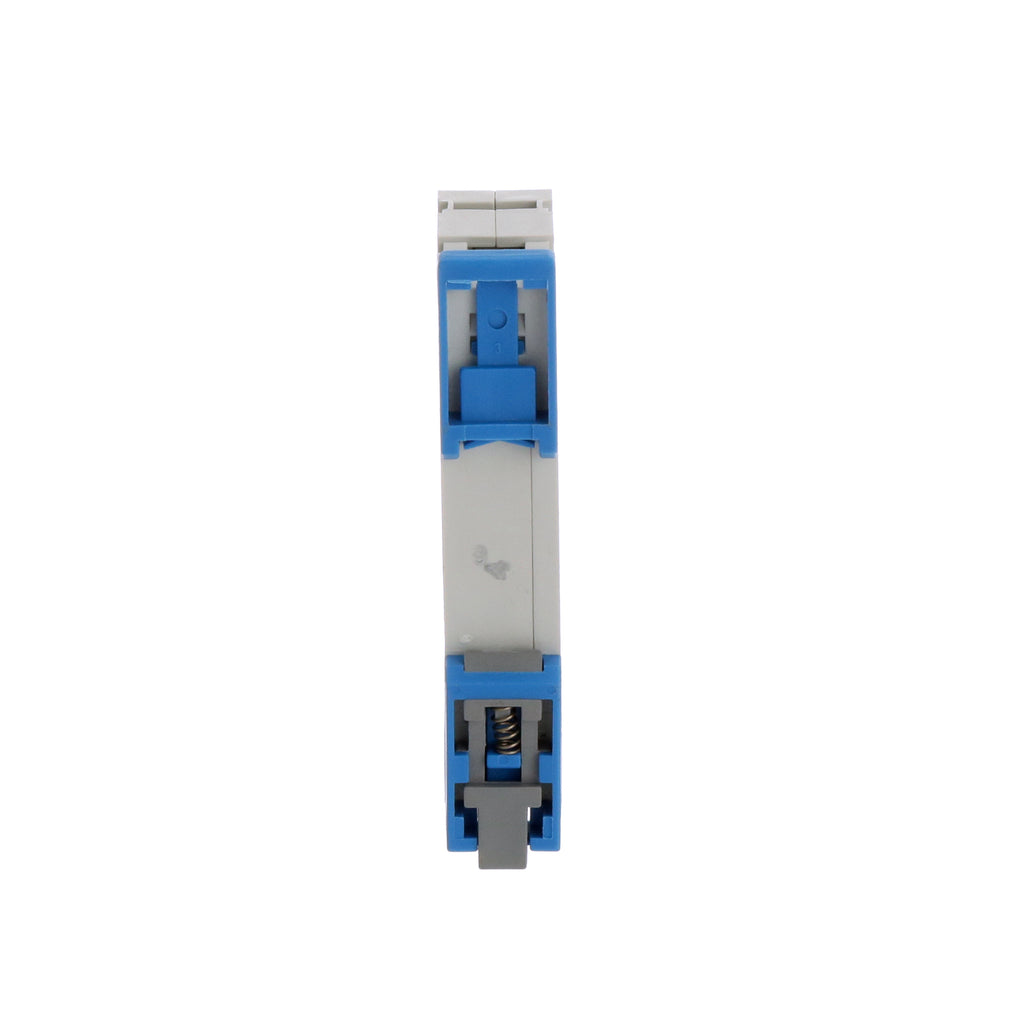

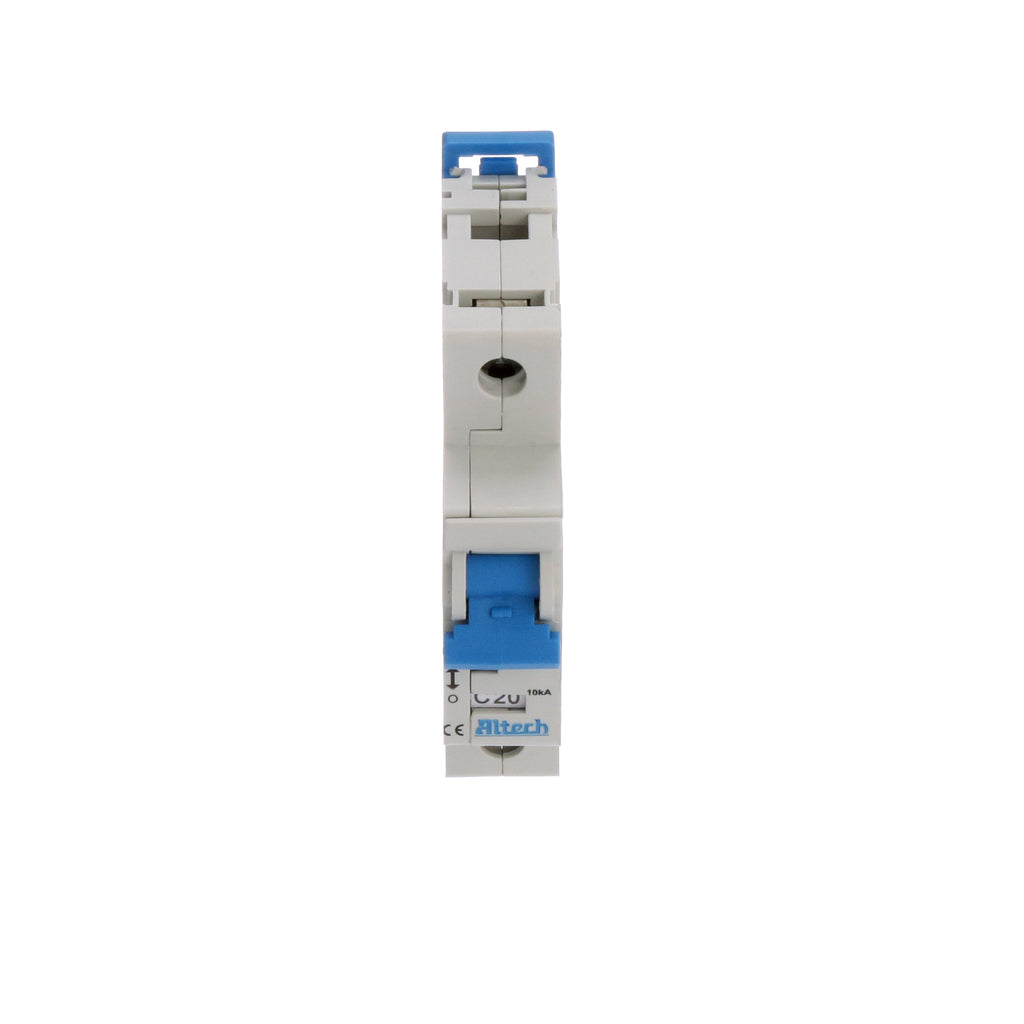

1CU20R is a 20 amp, 277 volt AC, single pole circuit breaker from Altech Corp designed for reliable circuit protection.This UL1077 supplementary protector features a C trip curve and is DIN rail mountable. It offers a 10kA interrupt rating and screw terminal connections. The breaker is suitable for control panel applications requiring compact, high-performance circuit protection with UL and CE certifications.
- Current Rating: 20 Amps
- Voltage Rating: 277 VAC
- Poles: 1
- Trip Curve: C
- Mounting Type: DIN Rail
- Interrupt Rating: 10kA
- Terminal Style: Screw
- Series: R
- Certifications: UL1077, CE
- Compact Molded Case Design
- Calibration Temperature: 30°C
- Vibration Resistance: 3g (18-50Hz)
Specifications
- Part Number: 1CU20R
- Manufacturer : Altech Corp
- Brand : Altech Corp
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@480Y/277V
- Connection : Feed-Thru
- Protection : Thermal Magnetic
Product Data
- Weight : 3.54
