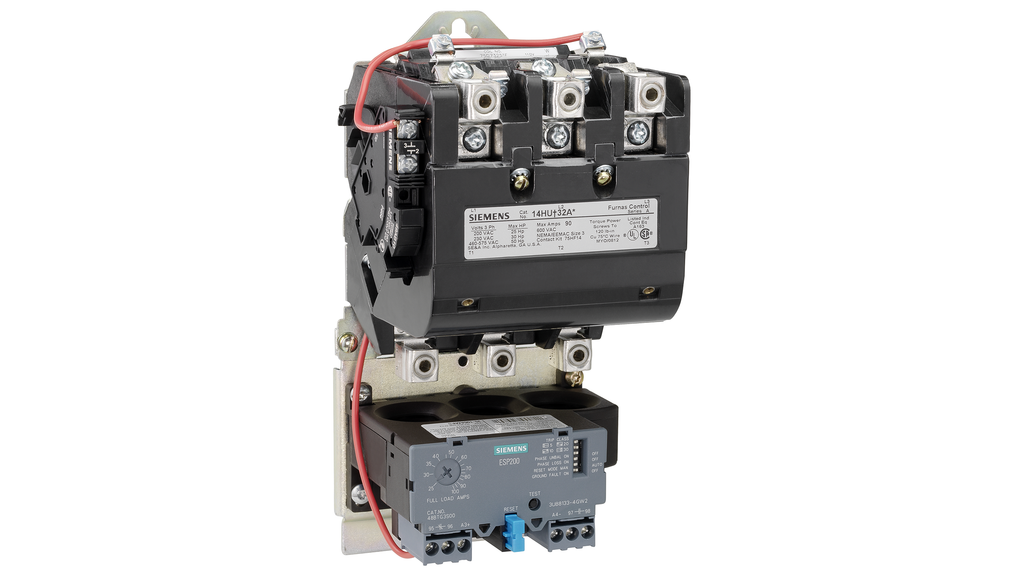

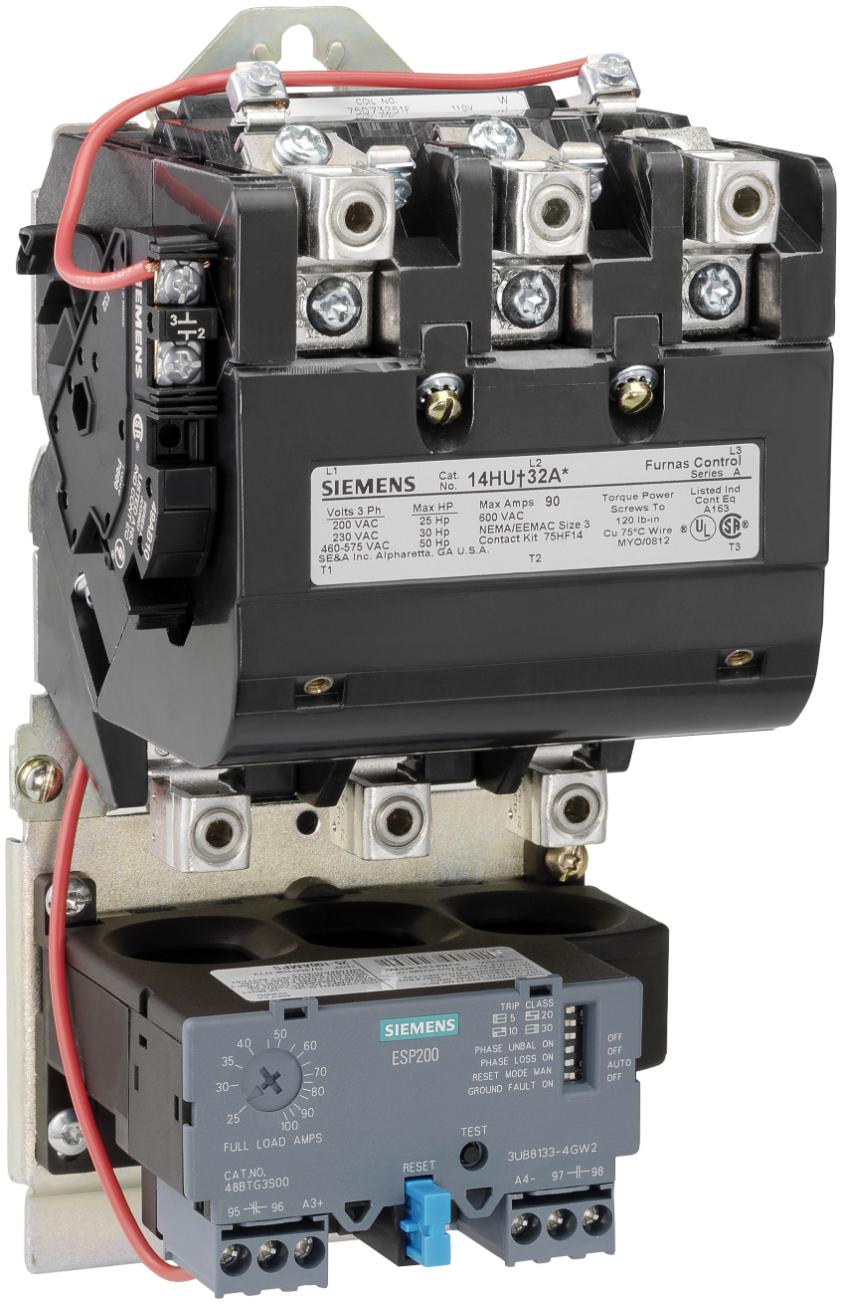

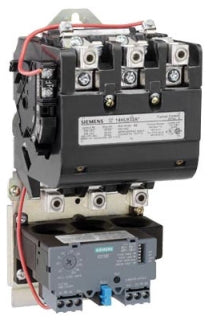

14JUH32AA - Siemens 200A 600V 3-Pole Motor Starter Size 4 Full Voltage Solid State Overload Relay

14JUH32AA

14JUH32AA is a Siemens non-reversing motor starter designed for reliable motor control in industrial applications.This Size 4 motor starter features a 3-pole configuration, 200 amp rating, and supports 600 VAC operation with a full voltage solid state overload relay. It operates with a 110-120/220-240 VAC coil at 60 Hz and is suitable for three-phase motors up to 100 HP. The starter is open type (no enclosure) and includes thermal overload protection for enhanced motor safety. It supports automatic, manual, and remote reset functions and is UL and CSA certified.

Key Specifications
• Amperage: 200 Amps
• Voltage: 600 VAC
• Poles: 3
• Phase: 3-Phase
• Mounting Type: Open (No Enclosure)
• Frame/Series: Size 4 (14JU Series)
• Trip Unit: Full Voltage Solid State Overload Relay
• Coil Voltage: 110-120/220-240 VAC, 60 Hz
• Motor HP Rating: Up to 100 HP
• Reset: Automatic/Manual/Remote
• Certifications: UL, CSA
• Operating Temperature: -20 to 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 14JUH32AA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14JU
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 4

Product Data

• UPC : 783087817982
• GTIN : 00783087817982
• Country of Origin : Mexico

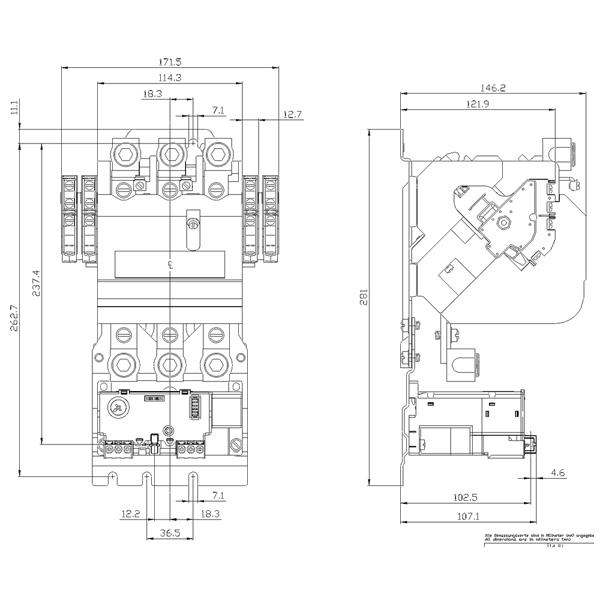

• Dimensions : 2.154 x 1.272 x 1.161 inch
• Weight : 8.999 lb
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
