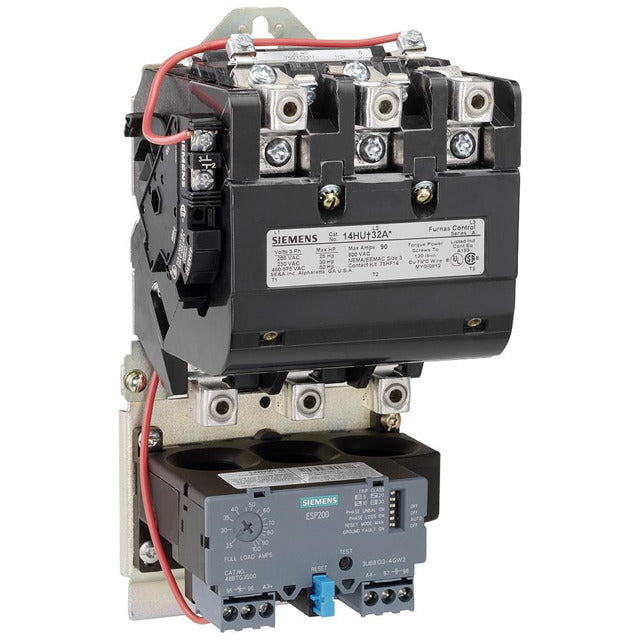

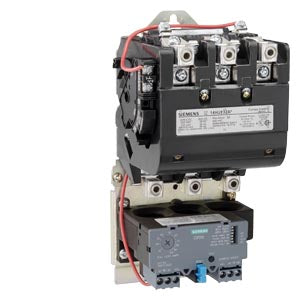

14HUG32AA - Siemens 90A 600VAC 3-Pole NEMA Size 3 Non-Reversing Motor Starter, Solid State Overload, 110-240VAC Coil, Surface Mount, Class 14 Frame, CSA/UL/cUL

14HUG32AA

This full-voltage, across-the-line starter is designed for heavy-duty industrial applications, supporting motors up to 25 HP at 200/208V, 30 HP at 220/230V, and 50 HP at 460/480/575/600V. It features a dual-voltage coil (110-120/220-240VAC), automatic/manual/remote reset, and a surface-mount design for flexible installation. The solid-state overload relay offers precise protection with a 25-100A adjustable range, and the unit is rated for operation in demanding environments.

Key Specifications
• Amperage: 90A (adjustable 25-100A)
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: Not specified in available data
• Series/Frame: 14HU, Class 14, NEMA Size 3
• Trip Unit: Solid-state overload relay (ESP200), adjustable 25-100A
• Certifications: CSA, UL, cUL
• Coil Voltage: 110-120/220-240VAC, 60Hz
• Enclosure: NEMA 3/Open
• Max HP: 25 HP @ 200/208V, 30 HP(more...)


  Specifications

  • Part Number: 14HUG32AA
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Family : Class 14
  • Type : 14HU
  • Voltage : 600
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Horse Power : HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp
  • Aux Contacts : 1NO
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220
  • Nema Rating : 3
  • Nema Starter Size : 3



  Product Data

  • UPC : 783087817968
  • GTIN : 00783087817968
  • Country of Origin : Mexico
  • Dimensions : 4.5 in x 9.78 in
  • Weight : 7
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
