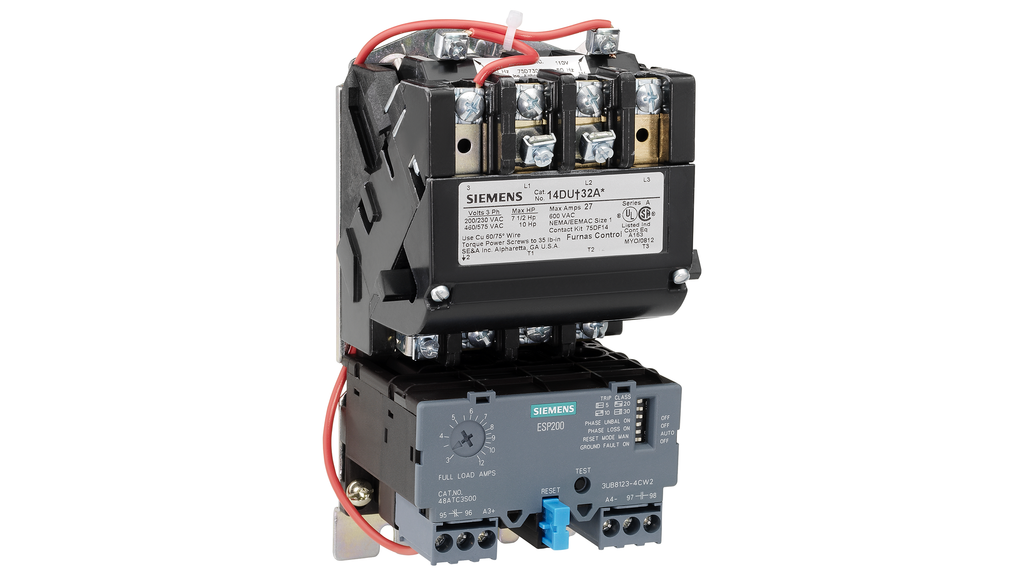

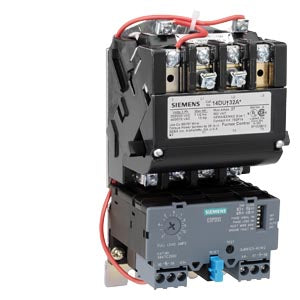

14EUE32AA - Siemens 3-Pole Non-Reversing Motor Starter 10-40A 600VAC NEMA 1 Class 14 Full Voltage

14EUE32AA

14EUE32AA is a Siemens 3-pole non-reversing motor starter designed for full voltage motor control applications.This motor starter features a 10 to 40 amp solid-state overload relay, supports 3-phase motors, and operates at voltages up to 600 VAC. It includes a 1NO auxiliary contact and a coil voltage rating of 110 to 120/220 to 240 VAC. The enclosure is NEMA 1/open type, suitable for indoor use. It is a Class 14 series starter with automatic, manual, and remote reset options, and is rated for 10 hp at 200-230 VAC and 15 hp at 460-600 VAC. The device is built for durability with a 10 million operating cycle rating and supports 50/60 Hz frequency.

Key Specifications
• Amperage Rating: 10 to 40 A
• Voltage Rating: 600 VAC max
• Coil Voltage: 110-120/220-240 VAC
• Number of Poles: 3
• Enclosure Type: NEMA 1/Open
• Series/Frame: Class 14
• Overload Relay: Solid-State
• Auxiliary Contact: 1NO
• Motor Power: 10 hp @ 200-230 VAC, 15 hp @ 460-600 VAC
• Reset Type: Automatic, Manual, Remote
• Operating Cycles: 10,000,000
• Frequency: 50/60 Hz

Specifications

• Part Number: 14EUE32AA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14EU
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 10 hp HP @ 3 Phase - 480V 15 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 1
• Nema Starter Size : 1 3/4



Product Data

• UPC : 783087817883
• GTIN : 00783087817883
• Country of Origin : Mexico
• Dimensions : 1.642 x 1.102 x 0.807 inch
• Weight : 3
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
