14DUD32BA - Siemens 10 HP 22 Amp 3-Pole Size 1 Non-Reversing Motor Starter 110-120/220-240 VAC

14DUD32BA

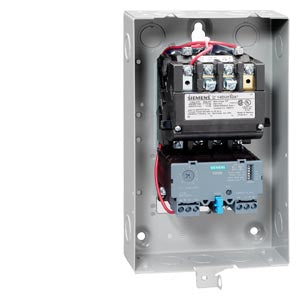

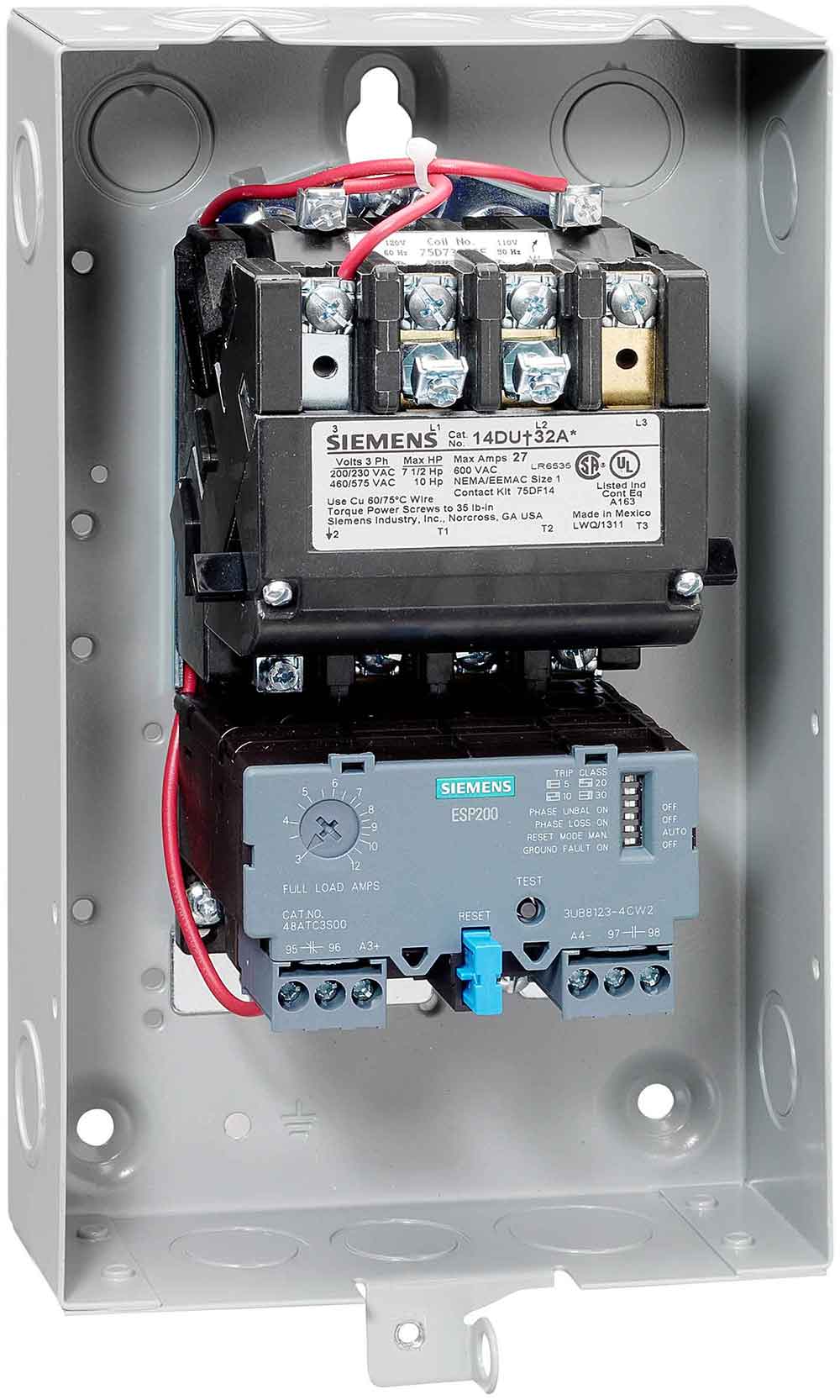

14DUD32BA is a Siemens non-reversing motor starter designed for 3-phase motor control applications.This Size 1 motor starter supports motors up to 10 HP with an amperage range of 5.5 to 22 Amps and operates on 110-120/220-240 VAC coils at 60 Hz. It features a solid-state overload relay with an amp range of 5.5-22A, a 3-pole configuration, and is built for full voltage starting. The enclosure type is Type 1, suitable for standard industrial environments. This starter is part of Siemens Class 14 motor controls and is designed for reliable motor protection and control.

Key Specifications
• Manufacturer: Siemens
• Part Number: 14DUD32BA
• Motor Power: 10 HP
• Amperage: 5.5 to 22 Amps
• Voltage: 110-120/220-240 VAC coil
• Poles: 3
• Size: 1
• Type: Non-Reversing Motor Starter
• Overload Relay: Solid-state, 5.5-22A range
• Enclosure: Type 1
• Frequency: 60 Hz
• Series: Class 14 Motor Controls
At Essential Parts, we offer fast shipping, lowest price, and expert s(more...)


Specifications

• Part Number: 14DUD32BA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14DU
• Voltage : 600
• Amperage : 22
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 10 hp
• Configuration : Non-Reversing
• Aux Contacts : 1NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 1
• Amperage Maximum : 22
• Amperage Minimum : 5.5
• Enclosure : 1



Product Data

• UPC : 783087818040
• GTIN : 00783087818040
• Country of Origin : Mexico

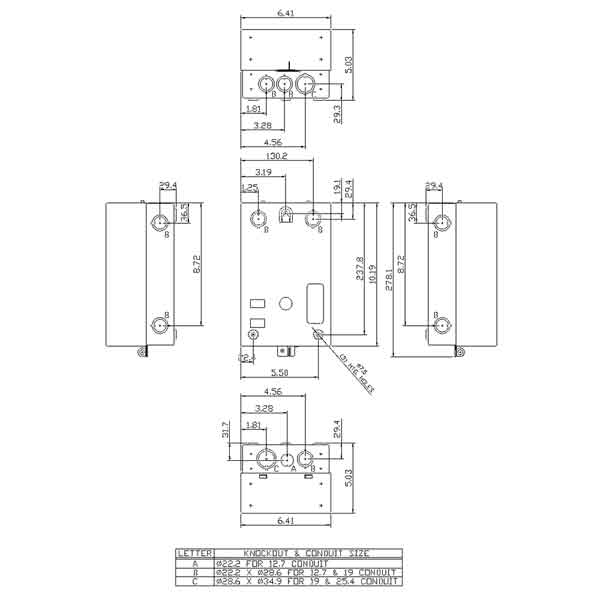

• Dimensions : 6.41 in x 10.97 in
• Weight : 7.998
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
