14DUD32AA - Siemens Motor Control starter 600 V 5.5-22 A

14DUD32AA

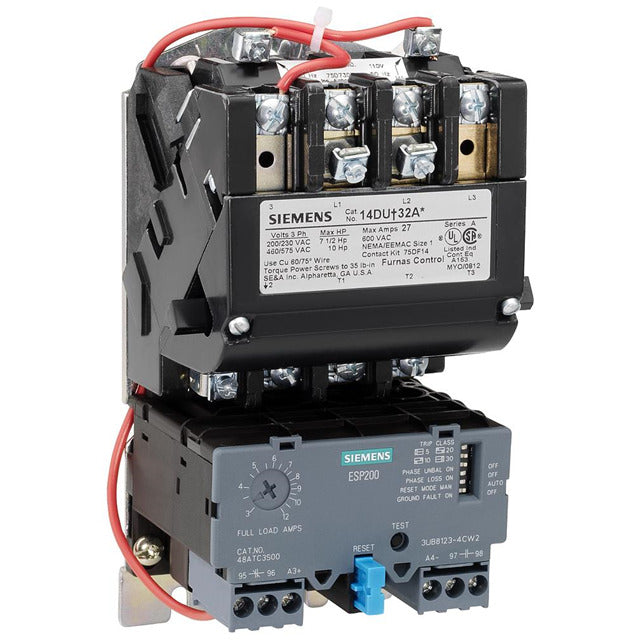

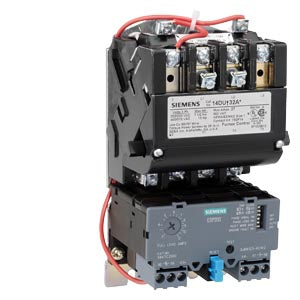

14DUD32AA is a Siemens Class 14 non-reversing heavy duty motor starter for three-phase motors in industrial motor control applications.This starter is NEMA size 1 with a solid-state overload relay adjustable from 5.5 to 22 A, rated up to 600 V AC, and features a 3-pole, 3-phase open-type design with a dual-rated 110-120/220-240 V AC 60 Hz coil for across-the-line starting of motors up to 10 hp at 460-575 V.Key Specifications

• Part Number: 14DUD32AA
• Manufacturer: Siemens
• Voltage: 600 V
• Amperage: 5.5-22 A
• Phase: 3
• Poles: 3
• Horsepower: 3 hp @ 200-230 V, 10 hp @ 460-575 V
• Control Voltage: 110-120/220-240 V AC 60 Hz
• Protection: Solid-state overload relay
• NEMA Size: 1
• Enclosure: Open type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 14DUD32AA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14 motor starter
• Type : Non-reversing motor starter
• Voltage : 600 V
• Amperage : 22
• Phase : 3
• Poles : 3
• Horse Power : 3 hp @ 200-230 V; 10 hp @ 460-575 V
• Configuration : Non-Reversing
• Aux Contacts : 1NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 1
• Amperage Maximum : 22 A
• Amperage Minimum : 5.5 A
• Nema Starter Size : 1
• Enclosure : Open type
• Control Voltage Minimum : 110 V
• Protection : Solid-state overload relay
• Control Voltate Maximum : 240 V

Product Data

• UPC : 783087817814
• GTIN : 00783087817814
• Country of Origin : Mexico
• Dimensions : 1.52 x 1.114 x 0.776 inch
• Weight : 3 lb
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
